| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARG02D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Power: | DC5(V) | Storage Temperature: | -55~+85(°C) |
|---|---|---|---|
| Data Updating Rate(can Set): | 2000(Hz@460800) | Vibration: | 6.06(g @ 20~2000 Hz) |
| Zero-bias Repeatability: | ≤0.05(deg/s) | Weight: | ≤60100(g) |
| Range: | ±500(triaxial)(deg/s) | Mean Time Between Failures: | 10(Kh MTBF) |
| High Light: | 2000Hz MEMS Gyroscope Sensor,DC5V MEMS Gyroscope Sensor,Precision MEMS Gyroscope Sensor |
||

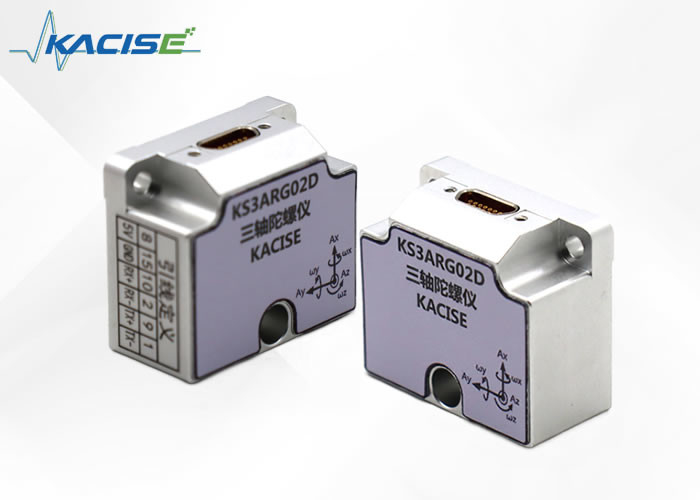

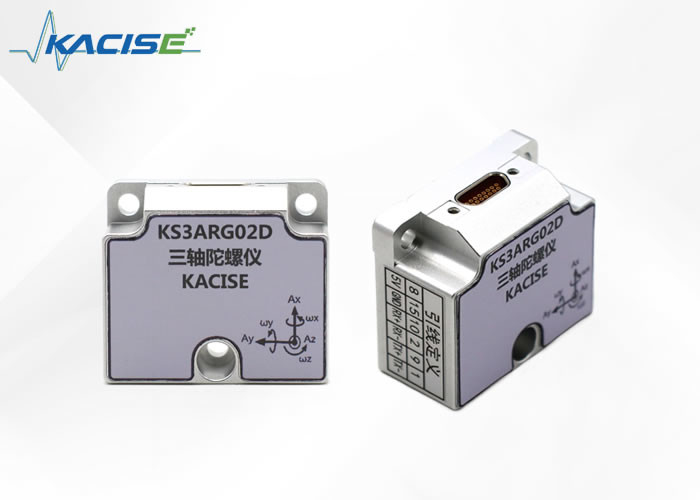

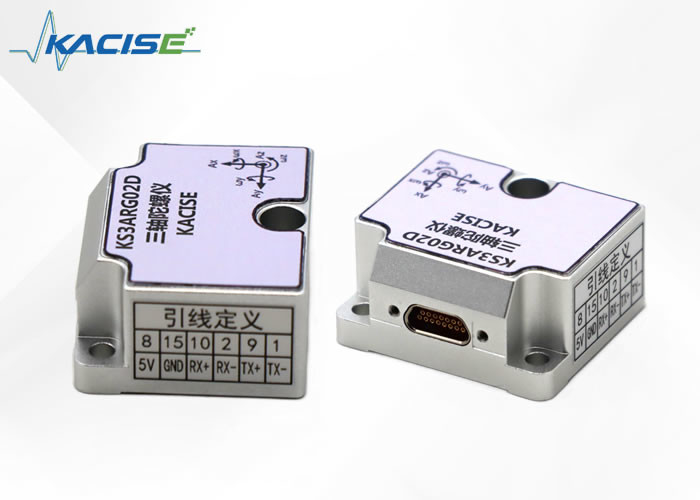

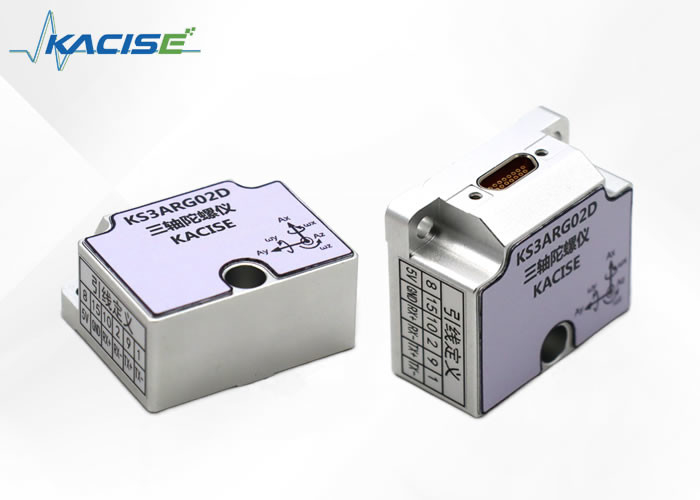

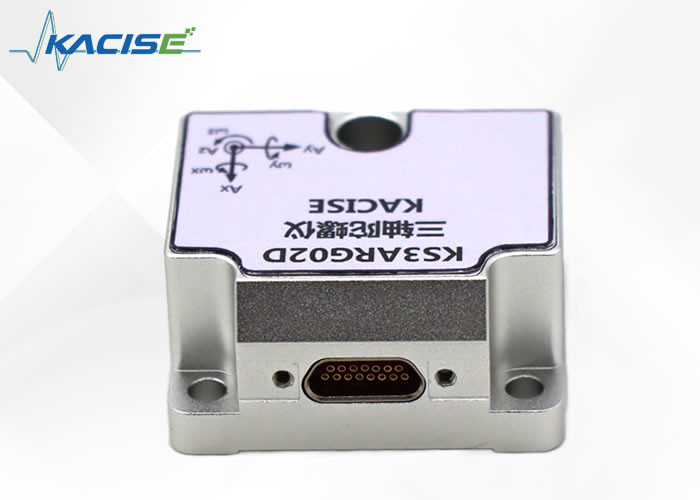

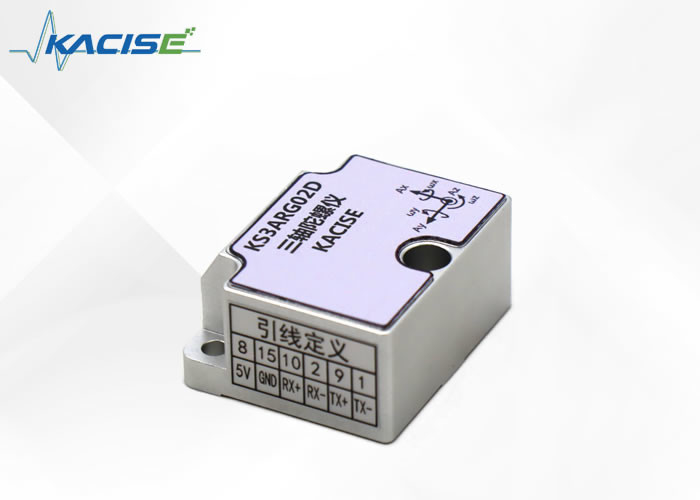

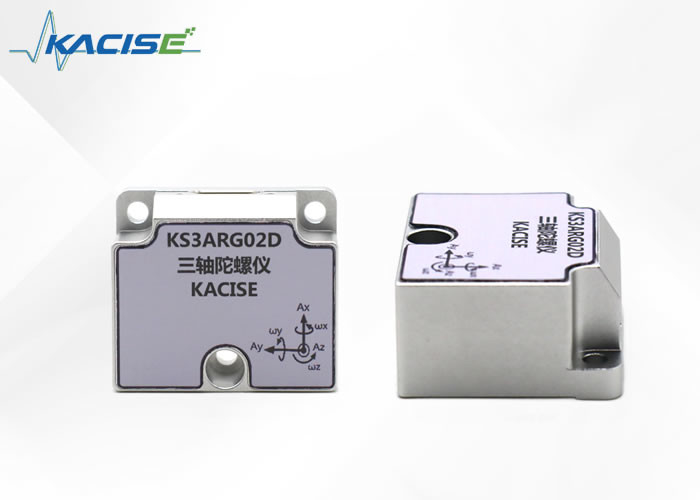

The KS3ARG02D series is a cutting-edge solid-state angular rate sensor, commonly referred to as a gyro, designed to precisely measure angular motion. This innovative sensor leverages the latest advances in micromechanoelectronic systems (MEMS) technology, ensuring superior performance and precision.
Constructed using state-of-the-art bipolar metal oxide semiconductor (BIMOS) process technology and a unique spherical grid arrangement, this sensor boasts improved current carrier welding techniques. These features combine to ensure the KS3ARG02D series offers unmatched reliability and exceptional packaging ruggedness.
A notable feature of the KS3ARG02D series is its built-in Self-Test function. This allows for Bit-In-Test (BIT) capabilities, enabling users to perform in-device diagnostics to verify sensor operation without the need for additional equipment. Moreover, the sensor is engineered with multiple performance-enhancing functions, such as zero bias calibration, temperature drift compensation, and non-linear correction. These functions work synergistically to deliver accurate measurements across a broad range of activities.
The product stands out due to its wide measurement range, broad bandwidth, and ability to withstand high-impact accelerations. Additionally, it is optimized for operation within an extensive temperature window. The KS3ARG02D series sensor encapsulates all these sophisticated features within a small, lightweight package, making it an ideal choice for applications where space economy and durability are crucial.
Dimensions
| Performance parameter | KS3ARG02D | |
| gyro |
range (deg/s) |
±500(triaxial) |
| Zero-bias(deg/s) | ≤±0.1(In 500°/s) | |
| Zero-bias stability(deg/h) | ≤0.5allan deviation | |
| Zero-bias repeatability(deg/s) | ≤0.05 | |
| nonlinearity(%FR) | ≤0.05 | |
| Random walk(°/√h) | 0.15 | |
| Mean time between failures(Kh MTBF) | 10 | |
| Interface characteristic | power(V) | DC5 |
| power dissipation(W @5V DC) | ≤1 | |
| electrical interface | RS422 | |
| data updating rate(can set) | 2000(Hz@460800) | |
| operating environment | operating temperature(°C) | -40~+80 |
| storage temperature(°C) | -55~+85 | |
| Vibration(g @ 20~2000 Hz) | 6.06 | |
| Shock(g , 0.1 ms, 1/2 Sine) | 5000 | |
| physical property | Size(mm) | 45×39×20 |
| Weight(g) | ≤60 | |
The Kacise KS3ARG02D electronic gyroscope sensor, originating from China (Mainland), is a state-of-the-art device tailored for a myriad of applications where precise angular rate measurements are critical. This particular model has earned the certificate of explosion-proof and CE certification, signifying its compliance with stringent safety and quality standards. With a minimum order quantity of just one piece, the KS3ARG02D is accessible to both small-scale projects and large industrial operations.
Offered by Kacise, a brand renowned for its precision instruments, the KS3ARG02D boasts a wide measurement range of ±500 degrees per second (triaxial), ensuring it can handle high-speed rotations with accuracy. The gyroscope is equipped with temperature drift compensation, making it highly reliable in environments where temperature fluctuations are a concern. This feature guarantees stable performance and consistent readings across a wide operating temperature range.
The KS3ARG02D is designed to be user-friendly, featuring an RS422 electrical interface for easy integration with existing systems. Furthermore, the sensor provides a rapid data updating rate which can be set up to 2000 Hz at a baud rate of 460800, allowing for real-time monitoring and quick response actions. Power efficiency is another key attribute of this device, with a low power dissipation of ≤1W @5V DC, making it suitable for battery-operated systems or energy-conscious applications.
Each sensor is meticulously packaged in an individual box, with the option for standard or customized packaging available upon the customer's request. Kacise ensures a smooth transaction with flexible payment terms, including T/T, Western Union, and MoneyGram, and promises a swift delivery time of 5-8 working days. The company's supply ability stands at an impressive 1000 pieces per week, catering to demands of varying scales without compromising on delivery times or product quality.
Our Electronic Gyroscope Sensor comes with comprehensive technical support and services designed to provide you with the assistance and guidance you need to get the most out of your product. We offer a variety of support services to cater to your individual needs.
Technical Documentation: We provide detailed documentation covering specifications, installation, and operation of the Electronic Gyroscope Sensor. This documentation is designed to help you quickly understand the capabilities of the device and how to integrate it into your projects seamlessly.
FAQs and Troubleshooting Guides: Our online resources include a comprehensive list of Frequently Asked Questions and troubleshooting guides to help you resolve common issues quickly and efficiently.
Warranty Service: Our Electronic Gyroscope Sensor comes with a standard warranty, offering repair or replacement of the device in the event of manufacturing defects. Refer to the warranty documentation for full details and conditions.
Please note that some services may require registration of the product, and access to certain support services may be subject to the terms of your warranty or service agreement. We are dedicated to providing exceptional support to ensure your satisfaction with our Electronic Gyroscope Sensor.
Product Packaging: The Electronic Gyroscope Sensor is securely packaged in an anti-static bag to prevent electrostatic discharge during handling. The sensor is then placed in a foam-padded box to ensure protection against impact and vibration during transit. The outer packaging is a durable cardboard box, clearly labeled with the product name, handling instructions, and a fragile icon to ensure careful handling by shipping carriers.
Shipping Information: Our Electronic Gyroscope Sensors are shipped via trusted courier services with tracking capabilities to ensure the safe and timely delivery of your order. Standard shipping typically takes 3-5 business days, while expedited options are available for faster delivery. Please verify your shipping address during checkout to avoid any delays.
