| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARG03D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Weight: | ≤50(g) | Power Dissipation: | ≤1.1(W @5V DC) |
|---|---|---|---|
| Range: | ±500(triaxial)(deg/s) | Power: | DC5(V) |
| Operating Temperature: | -40~+80(°C) | Vibration: | 6.06(g @ 20~2000 Hz) |
| Zero-bias Repeatability: | ≤1(deg/s) | Shock: | 5000(g , 0.1 Ms, 1/2 Sine) |

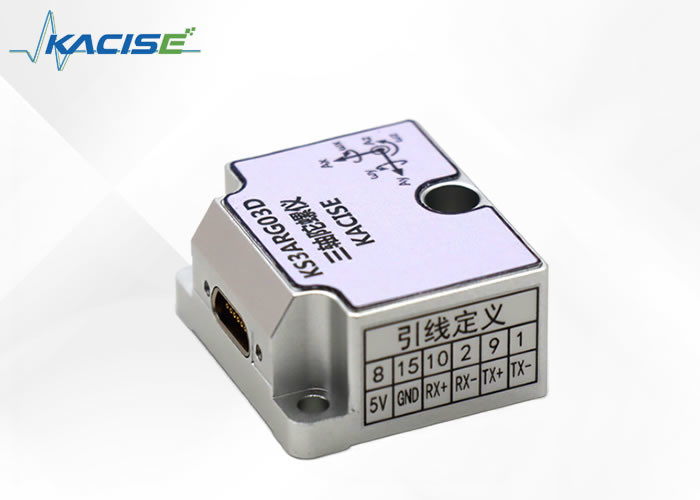

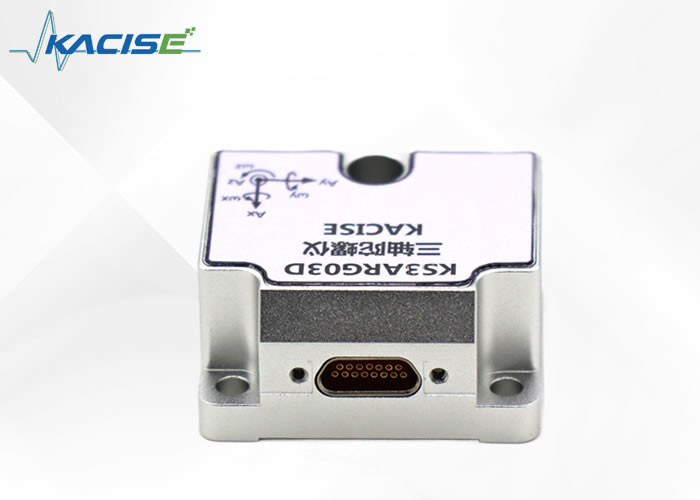

The KS3ARG03D series solid state angular rate sensor , commonly referred to as a gyro, is a device specifically engineered for the measurement of angular rates. Incorporating advanced micromechanoelectronic system (MEMS) technology, these sensors utilize chips fashioned through the bipolar metal oxide semiconductor (BIMOS) technology production process. This process is complemented by a unique spherical grid arrangement, which utilizes current carrier welding technology for enhanced precision and durability.
These sensors are known for their high reliability and exceptional package ruggedness . A notable feature of the KS3ARG03D series is its Self-Test function. This integral capability enables the sensors to conduct in-machine detection (BIT) , allowing for real-time system diagnostics and ensuring consistent, optimal performance.
At the core of the KS3ARG03D series angular rate sensors' functionality is the principle of the resonator gyro . Each sensor houses two polysilicon sensitive structures , with each structure containing a high-frequency vibrating frame. These frames are electrostatically driven and operate in a resonant state, which is pivotal to their performance.
The frames' outer ends comprise a capacitance-sensitive structure designed to detect the Coriolis motion caused by angular velocity. Upon sensing this motion, the structures generate an electrical signal. This signal passes through an amplifying stage and a modulating stage , resulting in an output signal that varies proportionally with the angular rate. The reliability and precision of the KS3ARG03D sensor make it an invaluable tool for applications requiring accurate angular rate measurements.
● zero bias calibration
● temperature drift compensation
● wide measurement range
● wide bandwidth
● non-linear correction
● wide operating temperature range
● small size, light weight
● high impact acceleration resistance
Dimensions
| Parameter | KS3ARG03D |
| Power supply parameter | |
| power | DC5(V) |
| power dissipation | ≤1.1(W @5V DC) |
| Product performance | |
| range | ±500(triaxial)(deg/s) |
| Zero-bias | ≤±0.05(In 500°/s)(deg/s) |
| Zero-bias stability | ≤0.2(deg/h) |
| Zero-bias repeatability | ≤1(deg/s) |
| nonlinearity | ≤0.02(%FR) |
| Mean time between failures | 10(Kh MTBF) |
| electrical interface | RS422 |
| data updating rate(can set) | 2000(Hz@460800) |
| Size | 45×39×20(mm) |
| Weight | ≤50(g) |
| Environment | |
| Operating temperature | -40~+80℃ |
| Storage temperature | -55~+85℃ |
| Vibration | 6.06(g @ 20~2000 Hz) |
| Shock | 5000(g , 0.1 ms, 1/2 Sine) |
The realm of intelligent automobiles has seen groundbreaking advances, with vehicles now boasting sophisticated systems that ensure safer and more efficient transportation. Intelligent vehicles are equipped with cutting-edge technology enabling them to understand and interact with their environment, leading to a more intuitive driving experience.
Geological exploration has been revolutionized through the use of high-tech instruments and analysis techniques. This field now utilizes complex tools to unravel the mysteries hidden deep within the Earth, providing invaluable data for various applications including resource extraction and environmental conservation.
The development of robots has reached an impressive level of complexity, with the integration of artificial intelligence and machine learning. These robotic systems are capable of performing tasks ranging from simple, repetitive activities to complex, high-precision operations, proving to be key assets in manufacturing, medicine, and beyond.
In the defense arena, missile guidance and control systems have become highly sophisticated, ensuring precision and reliability. Modern missiles are now outfitted with advanced guidance systems that can accurately navigate to their designated targets with minimal human intervention.
Aircraft stability control has made significant headway in securing the safety and efficiency of flight operations. Current control systems help to maintain an aircraft's stability during various flight conditions, offering pilots greater command and enhancing the overall performance of the aircraft.
The technology of strapdown inertial navigation has seen considerable improvements. This system, often used in naval and aerial vehicles, allows for precise position tracking without the need for external references, enabling continuous navigation regardless of external disturbances.
Finally, advancements in ensuring the stability of antennas and cameras have been critical in communications and surveillance. These devices can now maintain a steady position, even in the most challenging conditions, leading to improved signal quality and clearer images for various applications.
