| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARG03D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Power: | DC5(V) | Mean Time Between Failures: | 10(Kh MTBF) |
|---|---|---|---|
| Power Dissipation: | ≤1.1(W @5V DC) | Electrical Interface: | RS422 |
| Vibration: | 6.06(g @ 20~2000 Hz) | Nonlinearity: | ≤0.02(%FR) |
| Size: | 45×39×20(mm) | Operating Temperature: | -40~+80(°C) |
| Weight: | ≤50(g) |

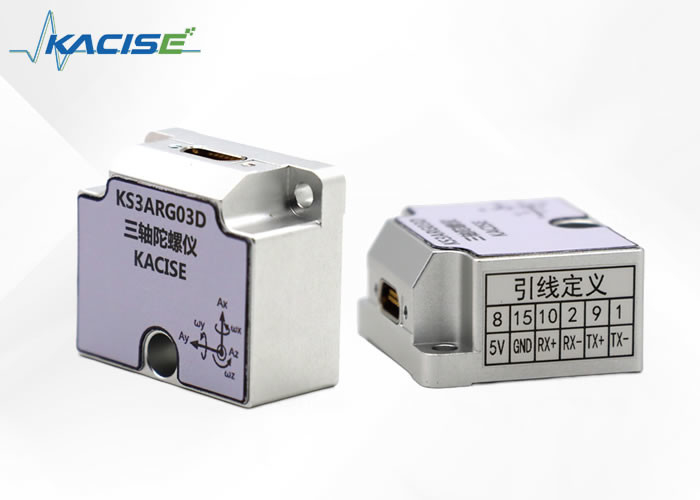

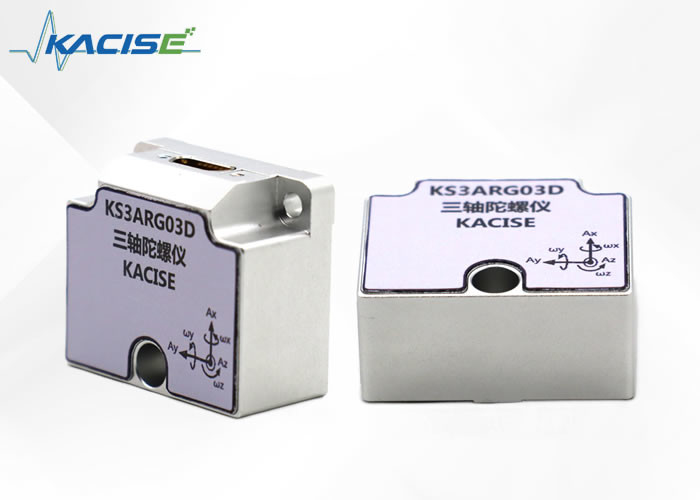

The KS3ARG03D series solid state angular rate sensors, commonly known as gyros, are designed to precisely measure angular rates. Integrating advanced micromechanoelectronic systems (MEMS) technology, these sensors utilize chips developed using the bipolar metal oxide semiconductor (BIMOS) technology production process complemented by a sophisticated spherical grid arrangement for current carrier welding. This innovative approach ensures both a robust packaging and high reliability of the sensors.
In addition, these sensors boast a Self-Test feature that enables Built-In Testing (BIT) capabilities, allowing users to perform in-device diagnostics to ensure optimal performance and accuracy.
The operating mechanism of the KS3ARG03D series angular rate sensors is rooted in the resonator gyro concept. These sensors are equipped with two polysilicon sensitive structures. Each structure encompasses a high-frequency vibrating frame that is electrostatically active, causing it to resonate. These frames serve as the critical elements necessary to gauge velocity.
Located at the frame's outer ends, a capacitive-sensitive structure is poised to respond to the Coriolis forces that arise when the angular rate is present. This interaction results in the generation of an electrical signal. It is then sent through an amplification and modulation process, ultimately producing an electrical signal that is directly proportional to the measured angular rate.
● zero bias calibration
● temperature drift compensation
● wide measurement range
● wide bandwidth
● non-linear correction
● wide operating temperature range
● small size, light weight
● high impact acceleration resistance
Dimensions
| Parameter | KS3ARG03D |
| Power supply parameter | |
| power | DC5(V) |
| power dissipation | ≤1.1(W @5V DC) |
| Product performance | |
| range | ±500(triaxial)(deg/s) |
| Zero-bias | ≤±0.05(In 500°/s)(deg/s) |
| Zero-bias stability | ≤0.2(deg/h) |
| Zero-bias repeatability | ≤1(deg/s) |
| nonlinearity | ≤0.02(%FR) |
| Mean time between failures | 10(Kh MTBF) |
| electrical interface | RS422 |
| data updating rate(can set) | 2000(Hz@460800) |
| Size | 45×39×20(mm) |
| Weight | ≤50(g) |
| Environment | |
| Operating temperature | -40~+80℃ |
| Storage temperature | -55~+85℃ |
| Vibration | 6.06(g @ 20~2000 Hz) |
| Shock | 5000(g , 0.1 ms, 1/2 Sine) |
The era of smart transportation is upon us with the advent of intelligent automobiles. These vehicles are equipped with advanced computational capabilities, enabling them to make informed decisions and react to a variety of driving conditions with little to no human intervention.
The field of geological exploration has been transformed by the integration of sophisticated sensors and data analysis tools. This technology allows for enhanced precision in locating and mapping mineral deposits, oil reserves, and other geological features deep within the earth.
Robots have become indispensable across multiple industries, bringing unmatched efficiency and precision to manufacturing, logistics, and even service sectors. Their ability to operate in hazardous environments has also been pivotal in ensuring human safety.
Missile technology has seen significant advancements in guidance and control systems. Modern missiles are capable of extraordinary accuracy due to the integration of complex algorithms and gyroscopic systems that navigate them to their targets.
Maintaining stability in flight is critical for aircraft safety and performance. Control systems within aircraft are now more sophisticated than ever, utilizing real-time data to adjust flight dynamics and ensure a smooth journey.
Strapdown inertial navigation systems provide cutting-edge navigational capabilities to a variety of vehicles. By directly mounting motion sensors to the vehicle frame, these systems can accurately calculate position, orientation, and velocity without the need for external references.
The demand for stable transmission and clear imaging has led to the development of advanced stabilization techniques for antennas and cameras. These stabilizers counteract movements and vibrations, ensuring the integrity of communication signals and the sharpness of visual recordings.
Our Electronic Gyroscope Sensor is designed for high-performance applications and is backed by our comprehensive technical support and services.
Technical Documentation: Access detailed product manuals, installation guides, and specifications to assist with the correct usage of the
Electronic Gyroscope Sensor. Our documentation is constantly updated to provide you with the most current and relevant information.
FAQs and Troubleshooting: Our Frequently Asked Questions (FAQs) section addresses common concerns and provides quick solutions.
For more in-depth issues, our troubleshooting guide can help you diagnose and resolve problems effectively.
Customer Service: Our dedicated customer service team is available to assist with non-technical inquiries, such as order status, shipping, and billing questions.
For further assistance or specialized support needs, please refer to our contact page to reach out to our technical support representatives who are ready to assist you.
The Electronic Gyroscope Sensor is meticulously packaged in an anti-static bag to ensure protection against electrostatic discharge (ESD). The sensor is then securely encased in a custom-fit, high-density foam mold, which provides superior shock absorption during transit. This foam is placed within a durable, branded cardboard box that shields the sensor from environmental factors and potential damage while in transit.
The exterior of the box features clear labeling with the product name, handling instructions, and a barcode for easy tracking. All our packages are sealed with tamper-evident tape, offering an additional layer of security.
For shipping, the Electronic Gyroscope Sensor is dispatched via a trusted courier service to ensure timely and safe delivery. We include insurance for the full value of the product, offering peace of mind and protection for your investment. Tracking information is provided as soon as the package is dispatched, allowing for real-time monitoring of the shipment until it arrives at its destination.
