| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARG03D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Size: | 45×39×20(mm) | Range: | ±500(triaxial)(deg/s) |
|---|---|---|---|
| Shock: | 5000(g , 0.1 Ms, 1/2 Sine) | Storage Temperature: | -55~+85(°C) |
| Power Dissipation: | ≤1.1(W @5V DC) | Power: | DC5(V) |
| Weight: | ≤50(g) | Data Updating Rate(can Set): | 2000(Hz@460800) |

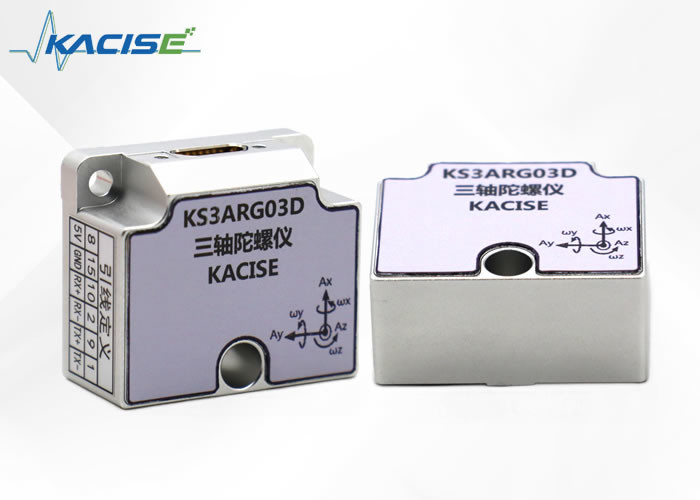

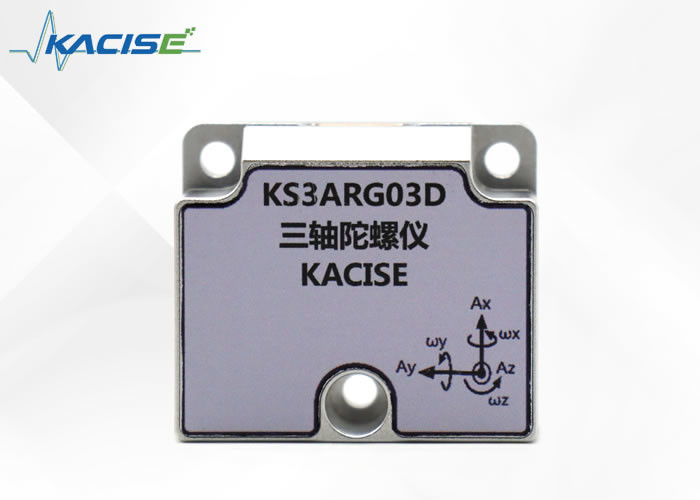

The KS3ARG03D series solid state angular rate sensor , also known as a gyro, is specifically designed for the precise measurement of angular rates. This sensor incorporates cutting-edge Micromechanoelectronic System (MEMS) technology , which utilizes sophisticated chips fabricated via the bipolar metal oxide semiconductor (BIMOS) technology production process. Additionally, it features an advanced spherical grid arrangement for current carrier welding technology, enhancing the sensor's overall reliability and ruggedness of the package.
A key feature of the KS3ARG03D series is the inclusion of a Self-Test function , which supports onboard in-machine detection, known as Built-In Test (BIT) . This function is critical for ensuring consistent performance and accuracy by allowing users to verify the sensor's functionality as needed.
The operational core of the KS3ARG03D series angular rate sensors is the resonator gyro principle . Each sensor is comprised of two polysilicon sensitive structures that house a high-frequency vibrating frame. These frames are electrostatically driven and maintained in a state of resonance to act as the primary speed-measuring elements.
At either end of the vibrating frame, a capacitive-sensitive structure is positioned. These structures are finely attuned to detect the Coriolis motion that emerges when the sensor experiences an angular rate change. As a result of this detection, an electrical signal is generated and subsequently forwarded to the amplifying and modulating stages of the system. The output is then refined into an electrical signal that is directly proportional to the angular rate, providing users with accurate, real-time measurements of angular movement.
● zero bias calibration
● temperature drift compensation
● wide measurement range
● wide bandwidth
● non-linear correction
● wide operating temperature range
● small size, light weight
● high impact acceleration resistance
Dimensions
| Parameter | KS3ARG03D |
| Power supply parameter | |
| power | DC5(V) |
| power dissipation | ≤1.1(W @5V DC) |
| Product performance | |
| range | ±500(triaxial)(deg/s) |
| Zero-bias | ≤±0.05(In 500°/s)(deg/s) |
| Zero-bias stability | ≤0.2(deg/h) |
| Zero-bias repeatability | ≤1(deg/s) |
| nonlinearity | ≤0.02(%FR) |
| Mean time between failures | 10(Kh MTBF) |
| electrical interface | RS422 |
| data updating rate(can set) | 2000(Hz@460800) |
| Size | 45×39×20(mm) |
| Weight | ≤50(g) |
| Environment | |
| Operating temperature | -40~+80℃ |
| Storage temperature | -55~+85℃ |
| Vibration | 6.06(g @ 20~2000 Hz) |
| Shock | 5000(g , 0.1 ms, 1/2 Sine) |
The advent of intelligent automobiles heralds a revolution in transportation, where vehicles are equipped with advanced systems for navigation, safety, and convenience. Through the integration of innovative sensors and AI, these smart vehicles offer remarkable capabilities, including self-driving features.
In the realm of geological exploration, cutting-edge technology plays a pivotal role in the discovery and analysis of mineral resources. Sophisticated equipment and techniques allow scientists to uncover the hidden treasures of the earth with greater precision and efficiency.
Robotics has become an essential aspect of modern industry and science. Robots, ranging from simple automated mechanisms to complex systems, perform a variety of tasks, including those that are dangerous or repetitive for humans, thereby enhancing productivity and safety.
The field of missile guidance and control involves high-precision systems that ensure the accurate and effective deployment of missiles. These systems utilize advanced algorithms and sensors to navigate and deliver payloads to their intended targets.
Aircraft stability control is a critical component of aviation safety. It encompasses the technologies that maintain an aircraft's equilibrium and manage its flight path, thus ensuring a smooth and secure journey for all on board.
Strapdown inertial navigation is a modern navigational technique that relies on mounting motion-sensing components directly to the vehicle's frame. This technology enables continuous tracking of position and velocity without the need for external references.
The stability of antennas and cameras is vital in communication and imagery. Stabilizing technologies ensure the reliability of signal transmission and the clarity of visual data, which is crucial in various applications such as broadcasting, surveillance, and remote sensing.
Our Electronic Gyroscope Sensor is designed for high-performance applications and is backed by our comprehensive technical support and services.
Technical Documentation: Access detailed product manuals, installation guides, and specifications to assist with the correct usage of the
Electronic Gyroscope Sensor. Our documentation is constantly updated to provide you with the most current and relevant information.
FAQs and Troubleshooting: Our Frequently Asked Questions (FAQs) section addresses common concerns and provides quick solutions.
For more in-depth issues, our troubleshooting guide can help you diagnose and resolve problems effectively.
Customer Service: Our dedicated customer service team is available to assist with non-technical inquiries, such as order status, shipping, and billing questions.
For further assistance or specialized support needs, please refer to our contact page to reach out to our technical support representatives who are ready to assist you.
The Electronic Gyroscope Sensor is meticulously packaged in an anti-static bag to ensure protection against electrostatic discharge (ESD). The sensor is then securely encased in a custom-fit, high-density foam mold, which provides superior shock absorption during transit. This foam is placed within a durable, branded cardboard box that shields the sensor from environmental factors and potential damage while in transit.
The exterior of the box features clear labeling with the product name, handling instructions, and a barcode for easy tracking. All our packages are sealed with tamper-evident tape, offering an additional layer of security.
For shipping, the Electronic Gyroscope Sensor is dispatched via a trusted courier service to ensure timely and safe delivery. We include insurance for the full value of the product, offering peace of mind and protection for your investment. Tracking information is provided as soon as the package is dispatched, allowing for real-time monitoring of the shipment until it arrives at its destination.
