| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARG03D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Size: | 45×39×20(mm) | Storage Temperature: | -55~+85(°C) |
|---|---|---|---|
| Power Dissipation: | ≤1.1(W @5V DC) | Range: | ±500(triaxial)(deg/s) |
| Zero-bias Stability: | ≤0.2(deg/h) | Zero-bias: | ≤±0.05(In 500°/s)(deg/s) |
| Operating Temperature: | -40~+80(°C) | Electrical Interface: | RS422 |

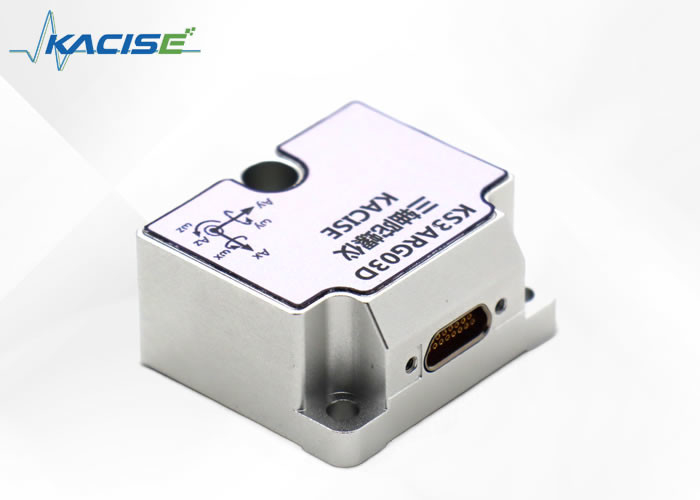

The KS3ARG03D series are high-precision solid state angular rate sensors, commonly known as gyroscopes, crafted for precise measurement of angular velocity. These sensors integrate advanced micromechanolectronic systems (MEMS) technology, which have been produced utilizing a state-of-the-art bipolar metal oxide semiconductor (BIMOS) technology production process. This process includes a unique spherical grid array for current carrier welding, enhancing their reliability and structural ruggedness.
One notable feature of the KS3ARG03D series is its built-in Self-Test functionality. This critical aspect allows for Built-In Test (BIT) capabilities, facilitating real-time in-system diagnostic checks to ensure continual sensor performance integrity and reliability.
The operational dynamics of the KS3ARG03D series angular rate sensors are rooted in the principles of resonator gyro technology. Each sensor contains a pair of polysilicon sensitivity structures with high-frequency resonating frames. These frames are electrostatically excited, inducing a state of resonance that is essential for velocity detection.
At the outermost parts of these frames lies a pair of capacitive structures that respond to Coriolis forces produced when the sensor experiences angular rotation. The reaction of these capacitances to Coriolis forces results in the generation of electrical signals. These signals are subsequently sent through amplification and modulating stages, which culminate in the production of an electrical output directly proportional to the measured angular rate.
● zero bias calibration
● temperature drift compensation
● wide measurement range
● wide bandwidth
● non-linear correction
● wide operating temperature range
● small size, light weight
● high impact acceleration resistance
Dimensions
| Parameter | KS3ARG03D |
| Power supply parameter | |
| power | DC5(V) |
| power dissipation | ≤1.1(W @5V DC) |
| Product performance | |
| range | ±500(triaxial)(deg/s) |
| Zero-bias | ≤±0.05(In 500°/s)(deg/s) |
| Zero-bias stability | ≤0.2(deg/h) |
| Zero-bias repeatability | ≤1(deg/s) |
| nonlinearity | ≤0.02(%FR) |
| Mean time between failures | 10(Kh MTBF) |
| electrical interface | RS422 |
| data updating rate(can set) | 2000(Hz@460800) |
| Size | 45×39×20(mm) |
| Weight | ≤50(g) |
| Environment | |
| Operating temperature | -40~+80℃ |
| Storage temperature | -55~+85℃ |
| Vibration | 6.06(g @ 20~2000 Hz) |
| Shock | 5000(g , 0.1 ms, 1/2 Sine) |
The advent of intelligent automobiles has revolutionized the way we think about personal transportation. These vehicles incorporate advanced technologies to offer enhanced safety, efficiency, and convenience to users. From self-driving capabilities to predictive maintenance, the modern intelligent automobile is a testament to the strides made in vehicular technology.
Geological exploration has benefited immensely from technological advancements. Modern methods enable explorers to analyze and understand the Earth's subsurface with greater accuracy. Techniques such as remote sensing and geophysical surveys have opened new possibilities in the search for natural resources and the study of geological phenomena.
Robots are at the forefront of industrial automation and technological progress. Today's robots can perform tasks with precision and repeatability, ranging from manufacturing to surgical assistance. Their role continues to evolve, as they become more adaptable and capable of handling complex and creative tasks previously thought to be exclusive to humans.
Missile guidance and control systems are a crucial component in modern defense. They utilize precise navigation and targeting technologies to ensure the effective deployment of missiles. The sophistication of these systems is paramount in the accuracy and reliability of missile operations.
Aircraft stability control is a vital aspect of aeronautics, ensuring the safe and controlled flight of airplanes. This involves a series of mechanisms and systems that maintain an aircraft's orientation and control its response to external factors and pilot inputs. The enhancement of these controls has improved flight safety significantly.
Strapdown inertial navigation represents a navigation technique wherein sensors are mounted directly to the vehicle's frame. This approach allows for a more rugged and reliable system that can withstand different operational environments. The technology is extensively used in various sectors, such as maritime, aerospace, and defense.
Maintaining the stability of antennas and cameras is essential for clear communication and accurate imaging, respectively. Technologies have been developed to counteract motion and vibration, providing stable platforms for these devices. This is critical in fields such as broadcasting, surveillance, and photography.
Welcome to our Technical Support and Services for the Gyroscope Sensor. Our dedicated team is here to assist you with any technical issues or inquiries you may have regarding the use, installation, or maintenance of your gyroscope sensor. We are committed to providing you with the best possible support to ensure your product functions optimally.
Our support includes detailed product documentation, frequently asked questions (FAQs), and troubleshooting guides designed to help you resolve common issues quickly. For more complex or specific concerns, our technical support team is ready to provide personalized assistance.
If you require further assistance, please refer to the 'Contact Us' section of our website (contact information excluded as per request) where you can find additional resources and support channels to get in touch with our professional technical support team.
Thank you for choosing our Electronic Gyroscope Sensor. We look forward to serving you and ensuring the success of your projects
Product Packaging for Electronic Gyroscope Sensor:
The Electronic Gyroscope Sensor is securely packaged in an anti-static bag to prevent any electrostatic discharge damage. The sensor is then encased in high-density foam, which conforms to its shape for added protection against impacts and vibrations during transit. The foam is placed inside a sturdy, corrugated cardboard box that is sealed with tamper-evident tape. A label indicating that the contents are fragile is prominently displayed on the exterior of the box. Each package includes a user manual and installation guide.
Shipping Information for Electronic Gyroscope Sensor:
All orders of the Electronic Gyroscope Sensor are shipped within 24 hours of order confirmation, excluding weekends and holidays. We offer standard and expedited shipping options to accommodate your needs. Tracking information will be provided so that you can monitor your shipment's progress. Please ensure the shipping address is accurate and someone is available to receive the package, as we are not responsible for lost or stolen items once they have been delivered. In the case of international shipments, the recipient is responsible for all customs duties and taxes.
