| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARGA1 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Output Noise: | <0.02(°/s√Hz) | G-value Sensitivity: | <0.02(°/s/g) |
|---|---|---|---|
| Output Voltage: | 0.5-4.5(V) | Cross Coupling: | ≤2(%) |
| Nonlinearity: | ≤0.05(%FR) | Mean Time Between Failures: | 100khour(MTBF) |
| Storage Temperature: | -65～+125(°C) | Scaling Factor: | 8±0.5(mv/°/s) |
| Incoming CurrentmA: | <30 MA | Bandwidth Can Customize: | 80(Hz) |

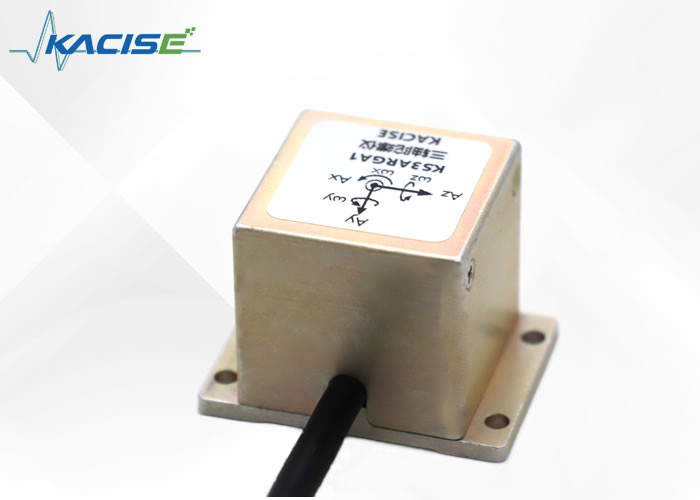

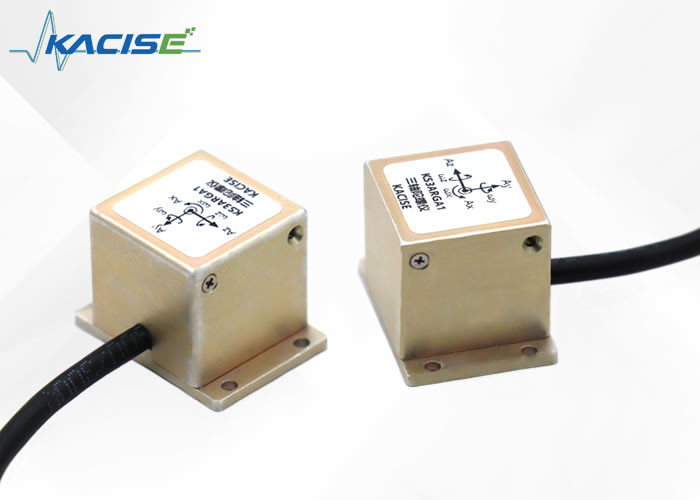

Kacise KS3ARGA1 Series Gyroscopes
The KS3ARGA1 series of three-axis universal angular rate gyros has been meticulously developed by Kacise. This advanced sensor technology is designed to measure the three-dimensional aspects of angular rate with precision and accuracy.
Technological Advancements
Exhibiting versatility, each axis within the KS3ARGA1 gyro incorporates a MEMS (Micro-Electro-Mechanical Systems) technology chip. This integration ensures high performance , cost-effectiveness , outstanding reliability , and exceptional ruggedness in packaging. Additionally, these gyros are equipped with a convenient Self-Test function for enhanced operational confidence.
Operating Principle
The operation of the KS3ARGA1 series is founded on the resonator gyro principle . A pair of polysilicon sensitive structures sit at the core of these devices. Each structure hosts a high-frequency oscillating frame powered by electrostatic forces to achieve resonance. Together, these frames constitute the vital components for speed measurement. Positioned at the external extremities, a capacitive-sensitive structure becomes responsive to Coriolis movement when subjected to angular momentum. This interaction subsequently produces an electric signal. The signal is then relayed through an amplifying and modulating stage, culminating in the release of an electrical output that is directly proportional to the angular rate being measured.
● low power consumption
● wide operating temperature range
● wide bandwidth
● small size
● DC input DC output
● fast start
● high performance, low cost
Dimensions
| Parameter | KS3ARGA1 |
| Power supply parameter | |
| Input voltage | 6-15V(Vdc) |
| Incoming currentmA | <30 mA |
| Offset voltage | 2.5±0.05(V) |
| Output voltage | 0.5-4.5(V) |
| Product performance | |
| Range | ±250(°/s) |
| Scaling factor | 8±0.5(mv/°/s) |
| Nonlinearity | ≤0.05(%FR) |
| Resolution/Threshold | ≤0.1(°/s) |
| Cross coupling | ≤2(%) |
| Output noise | <0.02(°/s√Hz) |
| run-up time | ≤20(ms) |
| Bandwidth can customize | 80(Hz) |
| G-value sensitivity | <0.02(°/s/g) |
| Mean time between failures | 100000hour(MTBF) |
| Size | 34×25×24(mm) |
| Weight | ≤40(g) |
| Environment | |
| Operating temperature range | -45～+80(°C) |
| Storage temperature | -65～+125(°C) |
| Tolerated acceleration | 20000(0.1ms)(g) |
Stabilization and control technologies have become pivotal in a range of industries, providing essential support and enhancement in performance for various devices and systems. Below are some of the key areas benefitting from such technologies.
Within the automotive sector, electronics harness these technologies to improve vehicle dynamics and safety. This includes advancements in driver assistance systems as well as overall vehicle automation, contributing to safer and more efficient driving experiences.
Aircraft rely heavily on advanced guidance and control systems. These sophisticated systems ensure that aircraft can navigate and maneuver effectively, maintaining the desired altitude and direction with precision. Similarly, an attitude reference system is crucial for maintaining an aircraft's orientation relative to the horizon and gravitational direction, an essential aspect of flight stability.
Platform stabilization is utilized extensively in various industrial applications, ranging from the stabilization of robots and antennas to ensuring the steady operation of cameras. For instance, robotic arms use these stabilization mechanisms to perform precise and controlled movements, which is vital for consistent manufacturing processes.
In the realm of photography and videography, stabilization technologies are key to achieving clear images and smooth footage. Camera stabilization systems, including those in digital cameras and gyros, help to counteract the camera shake, enabling photographers and videographers to capture high-quality visuals even under challenging conditions.
Our Electronic Gyroscope Sensor is designed with precision to provide reliable performance for your applications. Our support includes detailed product documentation, an extensive online knowledge base, and troubleshooting guides to help you resolve any issues you may encounter.
We are committed to the satisfaction of our customers and strive to provide exceptional after-sales support. Should you have any feedback or suggestions, we welcome your input as it helps us to continuously improve our products and services.
Packing and Shipping:
The Electronic Gyroscope Sensor is housed in a robust, anti-static packaging to ensure the device remains secure and undamaged during transit. The interior of the packaging is lined with a cushioning material that absorbs shocks and vibrations, providing additional protection for the sensitive components of the sensor.
Prior to shipment, each package is sealed and subjected to a thorough inspection to guarantee that the sensor is securely enclosed. The exterior of the packaging is clearly labeled with handling instructions and the package contents to facilitate careful handling and to inform the recipient about the enclosed device.
For shipping, the packaged Electronic Gyroscope Sensor is placed in a larger, durable cardboard box designed to withstand the rigors of transport. This box is further secured with packing tape and, if necessary, additional cushioning materials are added to prevent movement within the box during shipment.
Each shipment includes a detailed packing slip with product information and a unique serial number for inventory tracking and quality control purposes. The package is then dispatched through a reliable courier service with options for tracking and insurance to ensure the Electronic Gyroscope Sensor arrives at its destination promptly and in pristine condition.
