| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARGA1 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Bandwidth Can Customize: | 80(Hz) | Nonlinearity: | ≤0.05(%FR) |
|---|---|---|---|
| Operating Temperature Range: | -45～+80(°C) | Mean Time Between Failures: | 100khour(MTBF) |
| Size: | 34×25×24(mm) | Scaling Factor: | 8±0.5(mv/°/s) |
| Resolution/Threshold: | ≤0.1(°/s) | Output Voltage: | 0.5-4.5(V) |

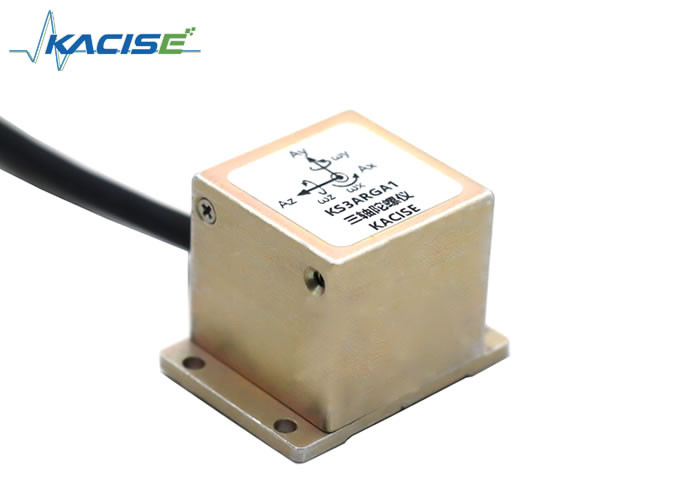

The KS3ARGA1 Series is a technological marvel in the domain of gyroscopic instruments, meticulously developed by Kacise . It serves the fundamental purpose of measuring the angular rate across three axes using advanced sensors. Each sensor in the triad is empowered by the cutting-edge MEMS (Micro-Electro-Mechanical Systems) technology chips . This technology infuses each gyro with exceptional performance metrics, cost-effectiveness, and unwavering reliability. Additionally, these gyros are markedly rugged in design, equipped to handle demanding packaging conditions. A noteworthy feature is the Self-Test function , which enhances the operational trustworthiness of the device.
The KS3ARGA1 Series gyros operate centered on the established resonator gyro principle . This sophisticated mechanism is characterized by dual polysilicon sensitive structures, wherein each houses a high-frequency oscillating frame. The operation relies on electrostatic forces to propel the frame into resonance, forming the crux of the velocity-measuring element. At either end of this frame, a capacitive-sensitive structure comes into play. This design is finely tuned to be responsive to the Coriolis forces that manifest whenever there is a change in angular rate. Such interaction induces an electric signal.
The process continues as the resulting signal undergoes amplification and modulation in subsequent stages. The end result is an electrical signal that is directly proportional to the angular rate . This signal is succinctly conveyed as the quantitative measure of the angular velocity that the KS3ARGA1 gyroscope detects, thereby fulfilling its primary function with high precision.
● low power consumption
● wide operating temperature range
● wide bandwidth
● small size
● DC input DC output
● fast start
● high performance, low cost
Dimensions
| Parameter | KS3ARGA1 |
| Power supply parameter | |
| Input voltage | 6-15V(Vdc) |
| Incoming currentmA | <30 mA |
| Offset voltage | 2.5±0.05(V) |
| Output voltage | 0.5-4.5(V) |
| Product performance | |
| Range | ±250(°/s) |
| Scaling factor | 8±0.5(mv/°/s) |
| Nonlinearity | ≤0.05(%FR) |
| Resolution/Threshold | ≤0.1(°/s) |
| Cross coupling | ≤2(%) |
| Output noise | <0.02(°/s√Hz) |
| run-up time | ≤20(ms) |
| Bandwidth can customize | 80(Hz) |
| G-value sensitivity | <0.02(°/s/g) |
| Mean time between failures | 100000hour(MTBF) |
| Size | 34×25×24(mm) |
| Weight | ≤40(g) |
| Environment | |
| Operating temperature range | -45～+80(°C) |
| Storage temperature | -65～+125(°C) |
| Tolerated acceleration | 20000(0.1ms)(g) |
The integration of electronic systems in the automotive industry has revolutionized the driving experience. Advanced electronics enhance vehicle functionalities, improve safety, and contribute to sustainable mobility solutions.
Essential to modern aviation, guidance and control systems in aircraft ensure safe and precise navigation. These sophisticated technologies enable pilots to maneuver aircraft with accuracy and maintain optimal flight paths.
Attitude reference systems are pivotal in indicating an object's orientation in space. Utilized extensively in aeronautics, these systems provide crucial data for navigation and positioning.
Stabilization technologies are key in various platforms, ranging from vessels to observation equipment. They maintain stability and function even in the face of external disturbances, such as rough seas or high winds.
Robots and antenna systems require precise stabilization to perform their respective tasks efficiently. Stabilization ensures that antennas can maintain a clear signal, and robots can carry out operations without disruptions.
In the world of photography and cinematography, camera stabilization is paramount. Modern cameras and digital camera gyroscopes provide image stability, enabling users to capture sharp, high-quality pictures and videos.
Our Electronic Gyroscope Sensor is designed with precision to provide reliable performance for your applications. Our support includes detailed product documentation, an extensive online knowledge base, and troubleshooting guides to help you resolve any issues you may encounter.
We are committed to the satisfaction of our customers and strive to provide exceptional after-sales support. Should you have any feedback or suggestions, we welcome your input as it helps us to continuously improve our products and services.
Packing and Shipping:
The Electronic Gyroscope Sensor is housed in a robust, anti-static packaging to ensure the device remains secure and undamaged during transit. The interior of the packaging is lined with a cushioning material that absorbs shocks and vibrations, providing additional protection for the sensitive components of the sensor.
Prior to shipment, each package is sealed and subjected to a thorough inspection to guarantee that the sensor is securely enclosed. The exterior of the packaging is clearly labeled with handling instructions and the package contents to facilitate careful handling and to inform the recipient about the enclosed device.
For shipping, the packaged Electronic Gyroscope Sensor is placed in a larger, durable cardboard box designed to withstand the rigors of transport. This box is further secured with packing tape and, if necessary, additional cushioning materials are added to prevent movement within the box during shipment.
Each shipment includes a detailed packing slip with product information and a unique serial number for inventory tracking and quality control purposes. The package is then dispatched through a reliable courier service with options for tracking and insurance to ensure the Electronic Gyroscope Sensor arrives at its destination promptly and in pristine condition.
