| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARGA1 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Input Voltage: | 6-15V(Vdc) | Cross Coupling: | ≤2(%) |
|---|---|---|---|
| Tolerated Acceleration: | 20000(0.1ms)(g) | Mean Time Between Failures: | 100khour(MTBF) |
| G-value Sensitivity: | <0.02(°/s/g) | Output Noise: | <0.02(°/s√Hz) |
| Nonlinearity: | ≤0.05(%FR) | Resolution/Threshold: | ≤0.1(°/s) |
| Output Voltage: | 0.5-4.5(V) |

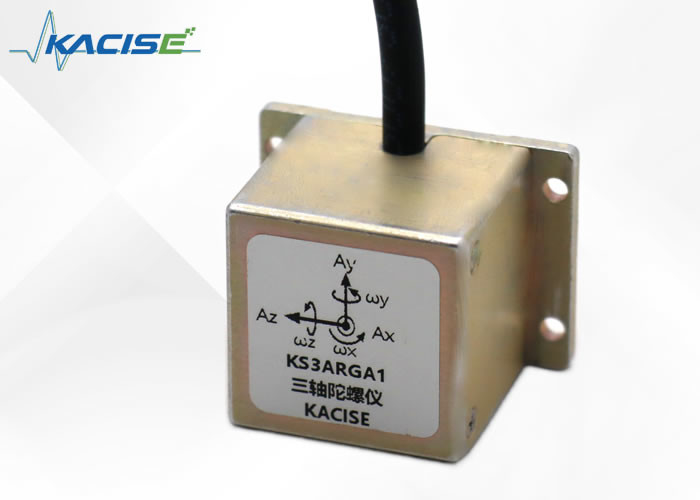

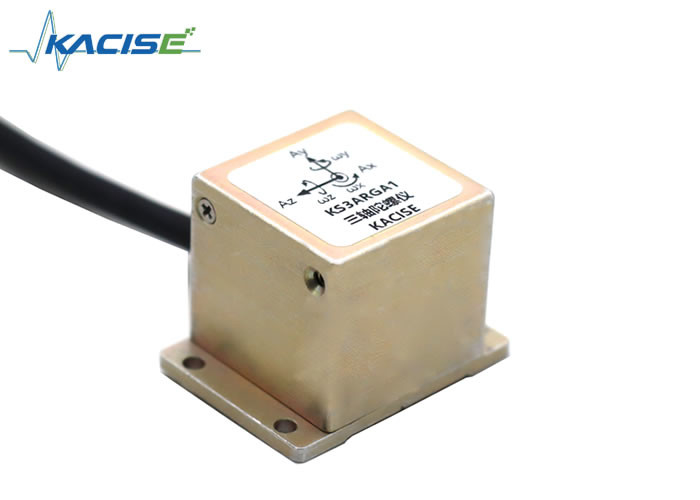

The KS3ARGA1 series represents a sophisticated product designed by Kacise to precisely measure the angular rate across three axes. This three-axis angular rate sensor integrates state-of-the-art MEMS technology chips in each axis. Renowned for its high performance, the gyro offers an economical solution without compromising on reliability or structural integrity. These sensors also come equipped with an invaluable Self-Test function for operational assurance.
The functionality of the KS3ARGA1 series gyros is rooted in the principle of the resonator gyro. Each gyro consists of two sensitive structures made from polysilicon. These structures feature high-frequency vibrating frames that are electrostatically driven to achieve resonance, constituting the core speed-sensing elements. At the extremities of these frames, a capacitance-sensitive structure detects the Coriolis effect resulting from any angular motion. This detection is then converted into an electrical signal. The signal undergoes amplification and modulation, which eventually leads to an output that correlates directly with the angular rate.
● low power consumption
● wide operating temperature range
● wide bandwidth
● small size
● DC input DC output
● fast start
● high performance, low cost
Dimensions
| Parameter | KS3ARGA1 |
| Power supply parameter | |
| Input voltage | 6-15V(Vdc) |
| Incoming currentmA | <30 mA |
| Offset voltage | 2.5±0.05(V) |
| Output voltage | 0.5-4.5(V) |
| Product performance | |
| Range | ±250(°/s) |
| Scaling factor | 8±0.5(mv/°/s) |
| Nonlinearity | ≤0.05(%FR) |
| Resolution/Threshold | ≤0.1(°/s) |
| Cross coupling | ≤2(%) |
| Output noise | <0.02(°/s√Hz) |
| run-up time | ≤20(ms) |
| Bandwidth can customize | 80(Hz) |
| G-value sensitivity | <0.02(°/s/g) |
| Mean time between failures | 100000hour(MTBF) |
| Size | 34×25×24(mm) |
| Weight | ≤40(g) |
| Environment | |
| Operating temperature range | -45～+80(°C) |
| Storage temperature | -65～+125(°C) |
| Tolerated acceleration | 20000(0.1ms)(g) |
Automotive Electronics: The integration of cutting-edge electronics into the automotive industry has revolutionized the way vehicles operate. Through the implementation of advanced systems, automobiles have become safer, more efficient, and offer a superior driving experience.
Aircraft Guidance and Control: Modern aircraft rely heavily on sophisticated guidance and control systems. These systems are pivotal in ensuring that the aircraft can navigate and maneuver accurately, maintaining the correct course and altitude throughout the flight.
Attitude Reference System: This technology is crucial for determining the orientation of an object in space. It provides essential reference information about an object's pitch, roll, and yaw, which is particularly useful in aerospace and marine applications.
Platform Stabilization: Maintaining the stability of platforms in various applications, platform stabilization technology is vital. It is widely used in fields such as marine navigation to keep the platform level despite the motion of waves.
Robot and Antenna Stabilization: Robots and antennas often require stable operation to function correctly. Stabilization technologies ensure that both can perform their tasks efficiently, even in the presence of external forces or movements that might otherwise cause disruptions.
Camera and Digital Camera Gyro: In the world of photography and videography, image stability is key. Gyroscopic stabilization technologies within cameras, including digital ones, allow photographers and videographers to capture clear and stable images and videos, free from the effects of hand-shake or motion blur.
Our Electronic Gyroscope Sensor is designed to provide precise motion sensing in a variety of applications. Our product technical support and services are dedicated to ensuring that you can integrate and use our gyroscope sensor effectively in your projects.
Technical Support:
- Comprehensive online documentation: Access detailed product specifications, integration guides, and troubleshooting articles to assist you with any technical queries regarding our Electronic Gyroscope Sensor.
Services:
- Email support: Reach out to our dedicated support team for personalized assistance with any technical issues you may encounter.
We are committed to providing you with the support you need to utilize our Electronic Gyroscope Sensor to its fullest potential.
Product Packaging:
The Electronic Gyroscope Sensor comes securely packaged in an anti-static bag to prevent any electrostatic discharge during handling. The bag is then placed in a custom-fit foam insert that snugly holds the sensor in place, ensuring maximum protection against physical shocks and vibrations. This foam is encased in a sturdy cardboard box which is sealed and labeled with the product information and handling instructions. The packaging has been designed to be compact while offering the best possible protection for the sensitive electronics inside.
Shipping:
Once the Electronic Gyroscope Sensor is packaged, it is ready for shipping. The boxed product is placed in a secondary, larger cardboard box with additional cushioning material to fill any void space, minimizing movement during transit. Fragile stickers are applied to the outer box to alert couriers that the contents require careful handling. The package is then sealed with heavy-duty packing tape and dispatched using a reliable shipping service that provides a tracking number. Customers will receive their tracking information via email to monitor their package's journey until delivery.
