| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARGA2 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Temperature Drift: | ≤±0.1(°/s/°C) | Nonlinearity: | ≤0.05(%FR) |
|---|---|---|---|
| G-value Sensitivity: | ≤0.02(°/s/g) | Resolution/Threshold: | ≤0.1(°/s) |
| Range: | ±300(X、Y、Z)(°/s) | Bandwidth(Hz)can Customize: | ≤100 |
| Output Voltage: | 0.66～2.64(V) | Offset Voltage: | 1.65±0.02(V) |

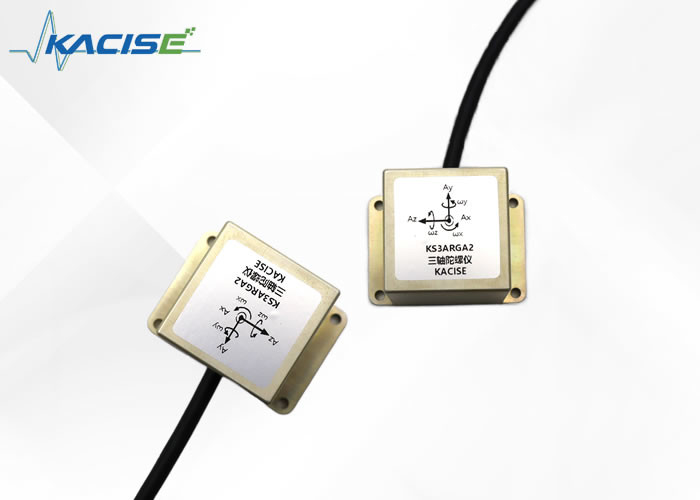

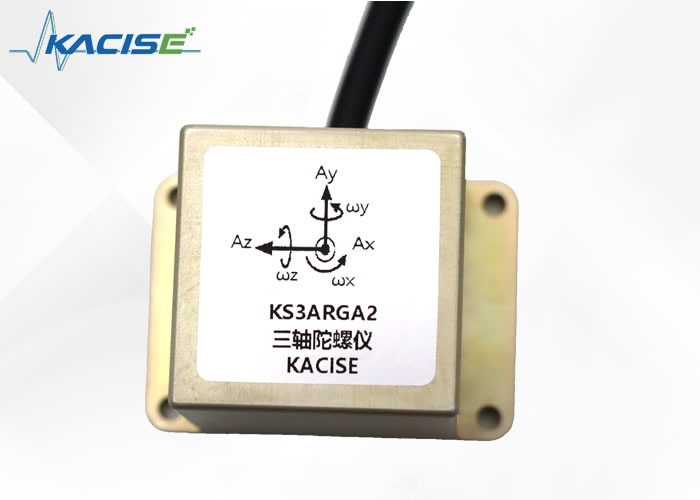

The KS3ARGA2 series three-axis universal angular rate gyro is a device that is used to measure the angular rate sensor of moving carriers. This innovative gyro uses MEMS technology chip, which provides outstanding performance, as well as high reliability and robustness.
What's more, the product also features low power consumption, a wide operating temperature range, wide bandwidth, small size, and fast start, which make it ideal for a wide range of applications. The device also includes a Self-Test function, which provides added convenience and accuracy for users.
The KS3ARGA2 series three-axis universal angular rate gyro boasts a DC input DC output, which allows it to provide fast and reliable data measurements. The product is known for its high package robustness, which makes it an ideal solution for various applications. Whether you need to measure the angular rate of moving carriers in the aerospace industry or in the automotive sector, the KS3ARGA2 series three-axis universal angular rate gyro is a reliable and efficient choice.
● low power consumption
● wide operating temperature range
● wide bandwidth
● small size
● DC input DC output
● fast start
● high performance, low cost
| Parameter | KS3ARGA2 |
| Power supply parameter | |
| Input voltage | 5V(Vdc) |
| Incoming currentmA | <10 mA |
| Offset voltage | 1.65±0.02(V) |
| Output voltage | 0.66～2.64(V) |
| Product performance | |
| Range | ±300(X,Y,Z)(°/s) |
| Scaling factor | 3.3±0.05(mv/°/s) |
| Nonlinearity | ≤0.05(%FR) |
| Resolution/Threshold | ≤0.1(°/s) |
| Cross coupling | ≤2(%) |
| Output noise | <0.02(°/s√Hz) |
| run-up time | ≤20(ms) |
| Bandwidth can customize | 100(Hz) |
| G-value sensitivity | <0.02(°/s/g) |
| Mean time between failures | 100000hour(MTBF) |
| Size | 43×30.5×30.5(mm) |
| Weight | ≤50(g) |
| zero-bias stability | 12(°/h) |
| Temperature drift | ≤±0.1(°/s/°C) |
| Environment | |
| Operating temperature range | -45～+105(°C) |
| Storage temperature | -65～+125(°C) |
| Tolerated acceleration | 20000(0.1ms)(g) |
Automotive electronics, aircraft guidance and control, platform stability, robots, antenna stability, and digital camera gimbal are all part of the exciting world of electronics and engineering.
The automotive industry has been revolutionized by electronic components such as sensors, electronic control units, and embedded software. Together, these components make modern cars safer, more fuel-efficient, and easier to drive.
In the field of aviation, guidance and control systems are critical for ensuring safe and efficient flight. These systems rely on advanced electronics like GPS, accelerometers, and gyroscopes to provide pilots with accurate information about their aircraft's position, speed, and direction.
Stability is a key consideration for many platforms, including drones, mobile robots, and even marine vessels. Sophisticated electronics are required to maintain stable flight or movement in these applications, often utilizing feedback control systems to quickly and accurately adjust motion and maintain stability.
Antennas and cameras are essential components in many applications, including wireless communication and surveillance. Stabilization systems allow antennas and cameras to remain pointed in the correct direction, even when subjected to external forces like wind or vibrations.
Digital camera gimbal systems are used to precisely control the orientation of a camera, allowing for smooth, stable video capture even when the camera is moving. These systems use sensors and motors to rapidly and precisely adjust the camera's position, compensating for any movement or vibration of the camera or platform.
The Electronic Gyroscope Sensor product technical support and services include:
- Troubleshooting assistance for any issues or problems with the sensor
- Expert advice on how to properly install and configure the sensor in your application
- Assistance with the interpretation of sensor data and analysis of sensor performance
- Software and firmware updates to ensure the sensor is always up-to-date and functioning properly
- Repair and replacement services for any defective or damaged sensors
Our team of experienced technicians and engineers are available to provide prompt and reliable technical support and services for the Electronic Gyroscope Sensor product.
The Electronic Gyroscope Sensor is meticulously packaged in an anti-static bag to ensure protection against electrostatic discharge (ESD). The sensor is then securely encased in a custom-fit, high-density foam mold, which provides superior shock absorption during transit. This foam is placed within a durable, branded cardboard box that shields the sensor from environmental factors and potential damage while in transit.
The exterior of the box features clear labeling with the product name, handling instructions, and a barcode for easy tracking. All our packages are sealed with tamper-evident tape, offering an additional layer of security.
For shipping, the Electronic Gyroscope Sensor is dispatched via a trusted courier service to ensure timely and safe delivery. We include insurance for the full value of the product, offering peace of mind and protection for your investment. Tracking information is provided as soon as the package is dispatched, allowing for real-time monitoring of the shipment until it arrives at its destination.
