| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARGA2 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Range: | ±300(X、Y、Z)(°/s) | Storage Temperature: | -65～+125(°C) |
|---|---|---|---|
| Scaling Factor: | 3.3±0.05(mv/°/s) | Output Noise: | ≤0.02(°/s√Hz) |
| Bandwidth: | ≤100(Hz) | Nonlinearity: | ≤0.05(%FR) |
| Weight: | ≤50(g) | Tolerated Acceleration: | 20000(0.1ms)(g) |

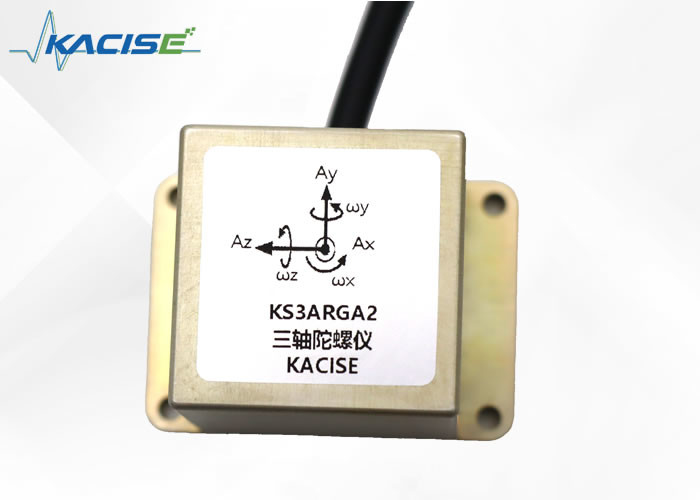

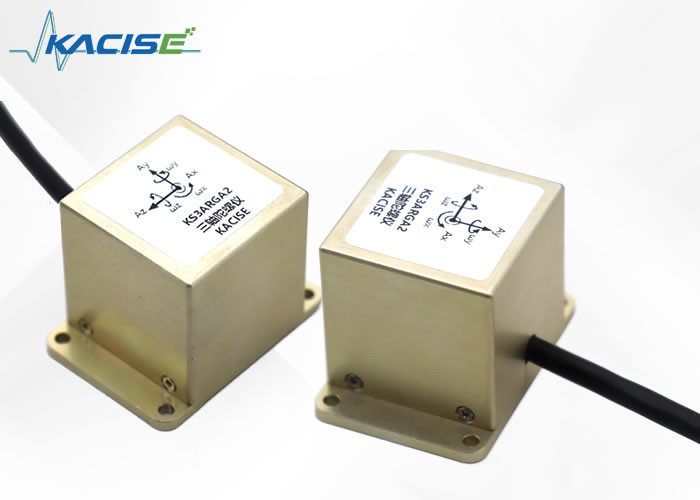

The KS3ARGA2 is a series of three-axis universal angular rate gyro designed for measuring the angular rate sensor of moving carriers. Utilizing MEMS technology chip, this gyroscope is able to provide high performance, reliability, robustness, and cost-effective sensor solution.
The gyroscope is equipped with a Self-Test function, which ensures its accuracy and precision. It also has low power consumption, a wide operating temperature range, wide bandwidth, compact size, fast start-up, and DC input/output.
● low power consumption
● wide operating temperature range
● wide bandwidth
● small size
● DC input DC output
● fast start
● high performance, low cost
| Parameter | KS3ARGA2 |
| Power supply parameter | |
| Input voltage | 5V(Vdc) |
| Incoming currentmA | <10 mA |
| Offset voltage | 1.65±0.02(V) |
| Output voltage | 0.66～2.64(V) |
| Product performance | |
| Range | ±300(X,Y,Z)(°/s) |
| Scaling factor | 3.3±0.05(mv/°/s) |
| Nonlinearity | ≤0.05(%FR) |
| Resolution/Threshold | ≤0.1(°/s) |
| Cross coupling | ≤2(%) |
| Output noise | <0.02(°/s√Hz) |
| run-up time | ≤20(ms) |
| Bandwidth can customize | 100(Hz) |
| G-value sensitivity | <0.02(°/s/g) |
| Mean time between failures | 100000hour(MTBF) |
| Size | 43×30.5×30.5(mm) |
| Weight | ≤50(g) |
| zero-bias stability | 12(°/h) |
| Temperature drift | ≤±0.1(°/s/°C) |
| Environment | |
| Operating temperature range | -45～+105(°C) |
| Storage temperature | -65～+125(°C) |
| Tolerated acceleration | 20000(0.1ms)(g) |
Electronics has come a long way in the last few decades and is now being applied to many different fields of technology. One field where electronics is making significant progress is the automotive industry. Cars are now equipped with advanced electronic systems that improve safety, fuel efficiency, and overall performance.
Another field where electronics is proving its worth is in aviation. The guidance and control systems used in aircraft are now heavily reliant on electronics. Electronics is used to ensure that planes stay on course and that they are able to land safely even in adverse weather conditions.
Stability of any platform is key and this is where electronics plays a vital role. The stability and control of many platforms are now managed by electronic systems. From drones to large ocean vessels, electronics is essential to keep the platform steady and on course.
Robots are another area where electronics is making a big difference. Robotics has advanced rapidly in recent years and now plays an important role in many different industries. From manufacturing to healthcare, robots are proving to be very useful tools in many different fields.
In the realm of communications, electronics is used to help stabilize antennas and cameras in place. This is important for ensuring that signals are transmitted and received properly, especially over long distances. Also, digital cameras are being equipped with rotating devices to allow them to capture images from different angles.
Our Electronic Gyroscope Sensor is designed to provide precise motion sensing in a variety of applications. Our product technical support and services are dedicated to ensuring that you can integrate and use our gyroscope sensor effectively in your projects.
Technical Support:
- Comprehensive online documentation: Access detailed product specifications, integration guides, and troubleshooting articles to assist you with any technical queries regarding our Electronic Gyroscope Sensor.
Services:
- Email support: Reach out to our dedicated support team for personalized assistance with any technical issues you may encounter.
We are committed to providing you with the support you need to utilize our Electronic Gyroscope Sensor to its fullest potential.
Product Packaging:
The Electronic Gyroscope Sensor comes securely packaged in an anti-static bag to prevent any electrostatic discharge during handling. The bag is then placed in a custom-fit foam insert that snugly holds the sensor in place, ensuring maximum protection against physical shocks and vibrations. This foam is encased in a sturdy cardboard box which is sealed and labeled with the product information and handling instructions. The packaging has been designed to be compact while offering the best possible protection for the sensitive electronics inside.
Shipping:
Once the Electronic Gyroscope Sensor is packaged, it is ready for shipping. The boxed product is placed in a secondary, larger cardboard box with additional cushioning material to fill any void space, minimizing movement during transit. Fragile stickers are applied to the outer box to alert couriers that the contents require careful handling. The package is then sealed with heavy-duty packing tape and dispatched using a reliable shipping service that provides a tracking number. Customers will receive their tracking information via email to monitor their package's journey until delivery.
