| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARGA2 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Output Voltage: | 0.66～2.64(V) | Cross Coupling: | ≤2(%) |
|---|---|---|---|
| Size: | 43*30.5*30.5(mm) | G-value Sensitivity: | ≤0.02(°/s/g) |
| Resolution/Threshold: | ≤0.1(°/s) | Zero-bias Stability: | 12(°/h) |
| Storage Temperature: | -65～+125(°C) | Scaling Factor: | 3.3±0.05(mv/°/s) |

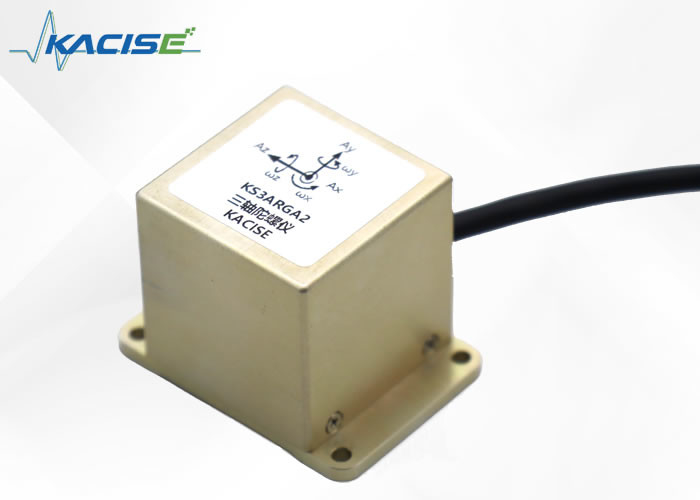

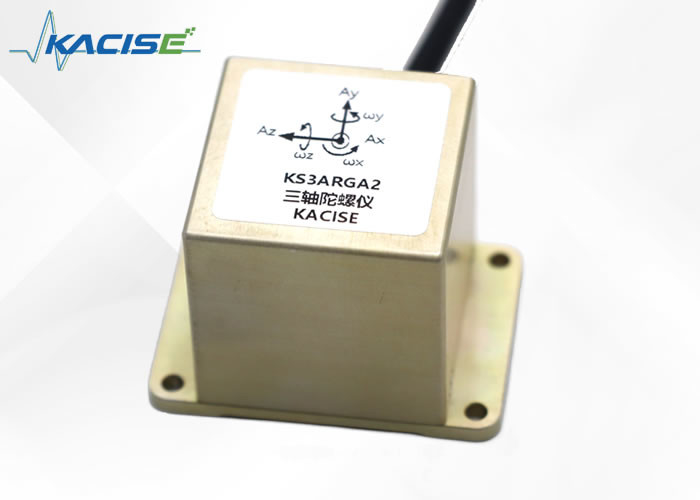

The KS3ARGA2 series is a three-axis universal angular rate gyro specially designed to measure the angular rate sensor of moving carriers. This gyroscope makes use of MEMS technology chip, which provides high performance, low cost, high reliability, and high package robustness. Additionally, the product features a Self-Test function that ensures optimal functionality.
The KS3ARGA2 series has a number of attractive features such as low power consumption, wide operating temperature range, wide bandwidth, small size, fast start, DC input, DC output and so on. These features make the device an ideal choice for applications requiring precise and reliable angular rate measurement for moving carriers.
● low power consumption
● wide operating temperature range
● wide bandwidth
● small size
● DC input DC output
● fast start
● high performance, low cost
| Parameter | KS3ARGA2 |
| Power supply parameter | |
| Input voltage | 5V(Vdc) |
| Incoming currentmA | <10 mA |
| Offset voltage | 1.65±0.02(V) |
| Output voltage | 0.66～2.64(V) |
| Product performance | |
| Range | ±300(X,Y,Z)(°/s) |
| Scaling factor | 3.3±0.05(mv/°/s) |
| Nonlinearity | ≤0.05(%FR) |
| Resolution/Threshold | ≤0.1(°/s) |
| Cross coupling | ≤2(%) |
| Output noise | <0.02(°/s√Hz) |
| run-up time | ≤20(ms) |
| Bandwidth can customize | 100(Hz) |
| G-value sensitivity | <0.02(°/s/g) |
| Mean time between failures | 100000hour(MTBF) |
| Size | 43×30.5×30.5(mm) |
| Weight | ≤50(g) |
| zero-bias stability | 12(°/h) |
| Temperature drift | ≤±0.1(°/s/°C) |
| Environment | |
| Operating temperature range | -45～+105(°C) |
| Storage temperature | -65～+125(°C) |
| Tolerated acceleration | 20000(0.1ms)(g) |
There are several areas related to electronic technology that we can discuss:
1. Automotive electronics
One major aspect of automotive technology is electronic systems, which are crucial in areas such as safety, navigation, connectivity, and performance. Electronic control units (ECUs) and sensors are used to monitor and control various aspects of the vehicle, such as engine performance, braking, and steering. Other electronic systems include infotainment, climate control, and advanced driver-assistance systems (ADAS). ADAS technologies such as lane departure warning, blind spot detection, and collision avoidance systems are increasingly being integrated into vehicles to improve road safety.
2. Aircraft guidance and control
Electronic systems for aircraft play a crucial role in flight safety, navigation, and control. Flight control systems use sensors and actuators to monitor and adjust the aircraft's motion, altitude, and speed. Guidance systems use GPS and other navigation technologies to provide accurate positioning and direction information. Avionics systems also include communication and data transfer systems, weather radar, and terrain avoidance systems.
3. Platform stabilization
Stabilization systems are used to maintain the balance and stability of various platforms, including cameras, antennas, and other equipment. These systems use sensors and actuators to compensate for any movement or vibration, ensuring that the platform remains steady and functions properly. For instance, a camera gimbal can rotate and stabilize the camera to capture smooth and steady footage, even when the platform is moving.
4. Robotics
Robotics technology relies heavily on electronics, including sensors, motors, and microprocessors, to facilitate movement, decision-making, and communication. Robots can perform tasks with high precision and speed, such as in manufacturing, assembly, and packaging. They are also used in various industries for tasks that are hazardous, inaccessible, or require high levels of agility and dexterity.
5. Antenna and camera stabilization
Electronic technology is used to stabilize antennas and cameras in various applications, including in satellite communication, surveillance, and photography. Stabilization systems use sensors and motors to adjust for any movement or vibration, ensuring that the antenna or camera remains pointed precisely at its target. For instance, a digital camera gimbal can rotate and stabilize the camera to capture smooth and steady footage, even when the camera is moving or shaking.
6. Digital camera pan-tilt unit
A digital camera pan-tilt unit (PTU) is an electronic device used to control the movement of a camera in two dimensions, allowing for pan (horizontal movement) and tilt (vertical movement) control. PTUs are often used in surveillance, broadcast, and inspection applications where precise camera control is required. They can be remotely controlled and integrate with other systems such as sensors, video analytics, and communication systems.
Our Electronic Gyroscope Sensor is designed with precision to provide reliable performance for your applications. Our support includes detailed product documentation, an extensive online knowledge base, and troubleshooting guides to help you resolve any issues you may encounter.
We are committed to the satisfaction of our customers and strive to provide exceptional after-sales support. Should you have any feedback or suggestions, we welcome your input as it helps us to continuously improve our products and services.
.
Product Packaging:
The electronic gyroscope sensor will be packaged in a sturdy cardboard box to ensure that it arrives in perfect condition. The product will be wrapped in a layer of protective foam to prevent any damage during transportation. The packaging will also include a user manual and any necessary cables or adapters.
Shipping:
We offer free shipping for the electronic gyroscope sensor within the continental United States. The product will be shipped via standard ground shipping and should arrive within 5-7 business days. For international orders, shipping rates will vary depending on the destination country. Please allow for additional shipping time for international orders.
