| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KXV9721 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Bias Temperature Coefficient ZRLs: | 0.0016(°/s)/℃ (Typ) | Rate Range I: | ±400°/s |
|---|---|---|---|
| Noise Density Nd: | 0.0015 (°/s)/√Hz | Angle Random Walk N: | 0.065 °/√h |
| Bias ZRL: | ±1°/s (0 LSB Typ) | Storage Temperature TSTG: | Storage Temperature TSTG |
| Scale Factor So: | 70 LSB/(°/s) ±2% 17920 LSB/(°/s) ±2% | Supply Voltage VDDM: | +2.7V~+3.6V |
| High Light: | electronic gyroscope sensor ODM,High precision electronic gyroscope sensor |
||

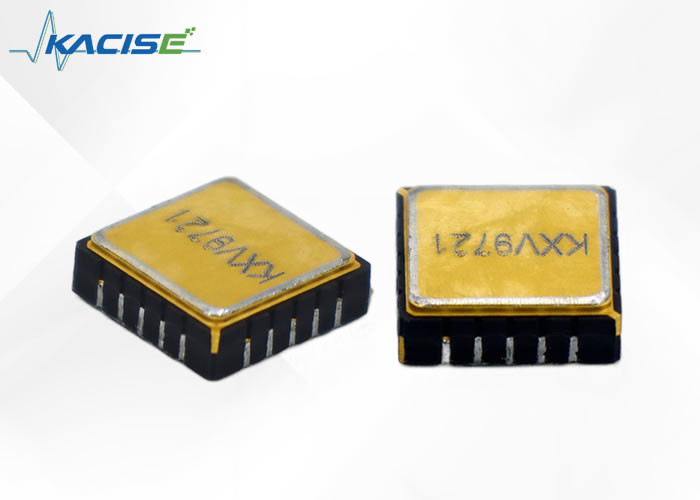

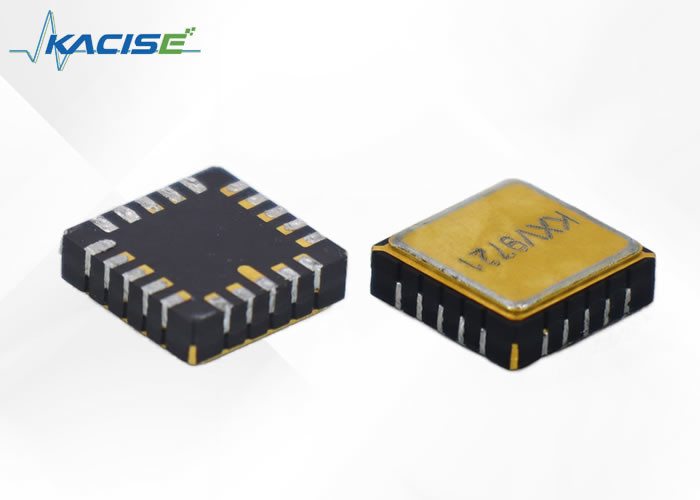

The KXV9721 boasts superior bias output stability and low noise, providing reliable results for various applications. This digital quartz gyroscope is built using quartz MEMS technology, which is further enhanced by semiconductor processing technology, ensuring accurate and precise readings.
These sensors offer compatibility with digital output interfaces like SPI and I2C. They also permit independent interface power supply voltage settings, enabling seamless communication with different interfaces. For added flexibility, the low-pass and high-pass filters are user-selectable, allowing you to choose a wide range of cut-off frequencies to suit your needs.
With low power consumption as one of its primary features, the KXV9721 is versatile enough to cater to a wide range of applications, from wearable devices and consumer electronics to industrial equipment.
● Excellent bias temperature coefficient 0.0016 (°/s)/°C Typ
● Low angle random walk 0.065 °/√h Typ
● Integrated user-selectable digital filter and detuning frequency eliminate filter
● SPI or I2C serial interface
● Angular rate output (16 bits or 24 bits resolution)
● Operating temperature -20 °C to +80 °C
● Embedded temperature sensor
● Low current consumption 900 μA Typ
| Parameter | KFOGD020A | Explanation | |
| Power supply parameter | |||
| Supply voltage VDDM | +2.7V~+3.6V | ||
| Supply voltage for interface VDDI | +1.65V~+3.6V | ||
| Product performance | |||
| Scale factor So | 70 LSB/(°/s) ±2% | 16 bits,Ta=+25℃ | |
| 17920 LSB/(°/s) ±2% | 24 bits,Ta=+25℃ | ||
| Scale factor variation over temperature Spt | ±3% | VDDM=3V,Ta=+25℃ reference | |
| Bias ZRL | ±1°/s (0 LSB Typ) | Ta=+25℃ | |
| Bias variation over temperature A ZRLta | ±0.25°/h | -10℃~+50℃,Ta=+25℃ reference | |
| Bias variation over temperature B ZRLtb | ±1°/h | -20℃~+80℃,Ta=+25℃ reference | |
| Bias temperature coefficient ZRLs | 0.0016(°/s)/℃ (Typ) | VDDM = 3v,Average of absolute value,ΔT=1℃ | |
| Rate range I | ±400°/s | ||
| Non-linearity NI | ±0.5%FS | Ta=+25℃ | |
| Cross-axis sensitivity CS | ±5% | Ta=+25℃ | |
| Current consumption Iop1 | 900μA Typ | ||
| Sleep current Iop3 | 3μA Typ | ||
| Noise density Nd | 0.0015 (°/s)/√Hz | @ 10Hz, LPF default setting | |
| Angle random walk N | 0.065 °/√h | ||
| Environment | |||
| Operating temperature TOPR | -20℃～+80℃ | ||
| Storage temperature TSTG | -40℃～+85℃ | ||
Dimensions
Anti-vibration and attitude control technologies have diverse applications, particularly in industrial settings. These technologies help to create a smooth, stable platform that reduces unwanted vibrations and movements to ensure consistent performance. Applications of anti-vibration and attitude control technologies can include precision equipment, measurement instruments, and other industrial applications.
Motion detection is another important technology that is used in human machine interface applications. This technology helps to recognize and track human movements, allowing for more natural and intuitive control over devices and machines. By incorporating motion detection into devices like video game controllers and handheld devices, users can have a more immersive and interactive experience.
Wearable devices are becoming increasingly popular for monitoring health and fitness, as well as providing augmented reality experiences. These devices often incorporate motion detection and inertial measurement technologies to track movement and provide feedback to the user.
Medical equipment that incorporates motion detection can help to improve patient outcomes and reduce costs. This can include devices for gait analysis, fall detection, and rehabilitation.
Stability is essential in many optical and photography applications, where even the slightest movement can ruin a shot. Anti-vibration and attitude control technologies help to ensure a stable platform for these applications, resulting in clearer and more focused images.
Inertial measurement instruments are used to measure motion and orientation, and are critical components in many industrial and military applications. These instruments can help to measure acceleration, velocity, and rotation rate, providing useful data for control and navigation systems.
Our Electronic Gyroscope Sensor is designed with precision to provide reliable performance for your applications. Our support includes detailed product documentation, an extensive online knowledge base, and troubleshooting guides to help you resolve any issues you may encounter.
We are committed to the satisfaction of our customers and strive to provide exceptional after-sales support. Should you have any feedback or suggestions, we welcome your input as it helps us to continuously improve our products and services.
The Electronic Gyroscope Sensor is meticulously packaged in an anti-static bag to ensure protection against electrostatic discharge (ESD). The sensor is then securely encased in a custom-fit, high-density foam mold, which provides superior shock absorption during transit. This foam is placed within a durable, branded cardboard box that shields the sensor from environmental factors and potential damage while in transit.
The exterior of the box features clear labeling with the product name, handling instructions, and a barcode for easy tracking. All our packages are sealed with tamper-evident tape, offering an additional layer of security.
For shipping, the Electronic Gyroscope Sensor is dispatched via a trusted courier service to ensure timely and safe delivery. We include insurance for the full value of the product, offering peace of mind and protection for your investment. Tracking information is provided as soon as the package is dispatched, allowing for real-time monitoring of the shipment until it arrives at its destination.
