| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KQRS14 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Start-Up Time (Typical): | <2.0 Sec | Scale Factor Calibration (at 22°C Typical): | ±2% Of Value |
|---|---|---|---|
| Bias Calibration (at 22°C Typical): | +2.5 ±0.045 Vdc | Non-Linearity (Typical) % Full Range: | ≤0.05% Of F.R. |
| Full Scale Output (Nominal): | ±5 Vdc | Input Current: | <20~25mA |
| G Sensitivity (Typical): | ≤1.0°/sec. | Vibration Operating: | 5 Grms 20 Hz To 2 KHz Random |
| High Light: | 2.5 Vdc Quartz MEMS Gyroscope,Bias Calibration Quartz MEMS Gyroscope,Small Size Quartz MEMS Gyroscope |
||

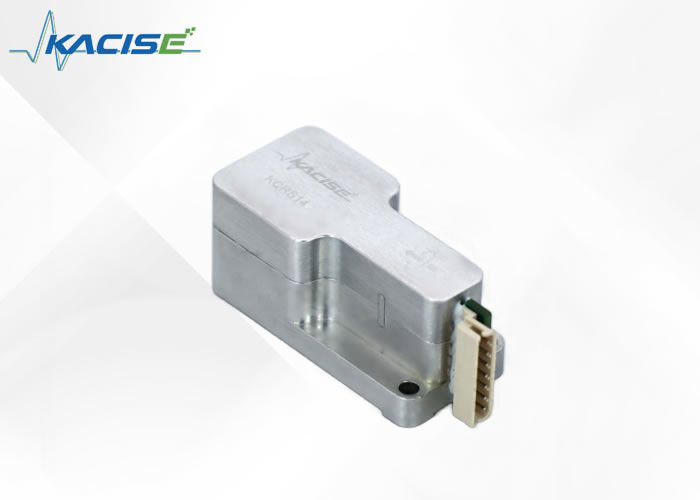

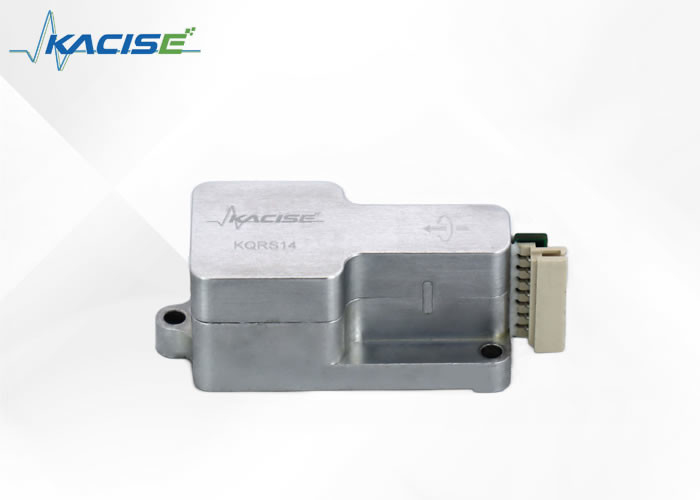

The KQRS14 is a versatile tool designed for measuring angular rotation rates through its compact and sturdy structure. This solid-state sensor incorporates monolithic quartz sensing elements, providing superior accuracy and sensitivity. Internal power regulation and flexible DC input options enable easy integration with various systems.
This model comes in two versions to cater to different power requirements. The first version, with a power input of +12Vdc, produces a high-level output of +1.0 to +4.0 Vdc. Its low power consumption is well-suited for battery-powered devices. On the other hand, the second version, with a power input of +15/-15Vdc, produces a high-level bipolar output of ±5 Vdc. It is compatible with conventional power supplies and features a broader application range.
● Compact,Lightweight Design
● Wide Temperature Range
● DC Input/High-Level DC Output
● lnternal Power Regulation
● High Reliability
● Shock Resistant
| Parameter | KQRS14-0XXXX-102** | KQRS14-0XXXX-103** |
| Power Requirements | ||
| Input Voltage | +9 to +18 Vdc | +9 to +18 Vdc |
| Input Current | <20 mA | <25 mA (each supply) |
| Performance | ||
| Standard Ranges | ±50,100,200,500°/sec. | |
| Full Scale Output (Nominal) | +1.0 Vdc (-FS) to +4.0 Vdc (+FS) | ±5 Vdc |
| Scale Factor Calibration (at 22°C Typical) | ±2% of value | |
| Scale Factor Over Temperature (Dev. from 22°C Typical) | ≤0.06%/°C | |
| Bias Calibration (at 22°C Typical) | +2.5 ±0.045 Vdc | 0.0±0.075 Vdc |
| Bias Variation over Temperature (Dev. from 22°C) | <3.0°/sec. | |
| Short Term Bias Stability (100 sec at const. temp) | <0.05°/sec, typical | |
| Long Term Bias Stability (1 year) | ≤1.0°/sec. | |
| G Sensitivity (Typical) | ≤0.06°/sec/g | |
| Start-Up Time (Typical) | <2.0 sec | |
| Bandwidth (-90° Phase Shift) | >50 Hz | |
| Non-Linearity (Typical) % Full Range | ≤0.05% of F.R. | |
| Threshold/Resolution | ≤0.004°/sec.* | |
| Output Noise (DC to 100 Hz) | ≤0.05°/sec./√Hz* | ≤0.02°/sec./√Hz* |
| Weight | ≤50 grams | |
| Environments | ||
| Operating Temperature | -40°C to +85°C | |
| Storage Temperature | -55°C to +100°C | |
| Vibration Operating*** | 5 grms 20 Hz to 2 kHz random | |
| Vibration Survival*** | 10 grms 20 Hz to 2 kHz random 5 minutes/axis | |
| Shock | 200g,any axis | |
Dimensions:
KQRS14-0XXXX-102 pin assignment
| Num | Explain | Num | Explain |
| 1 | Power and Signal Ground | 5 | Rate Output |
| 2 | +Vdc Input | 6 | No connection, Leave Open |
| 3 | No connection, Leave Open | 7 | Built-in-test |
| 4 | No connection, Leave Open |
KQRS14-0XXXX-103 pin assignment
| Num | Explain | Num | Explain |
| 1 | -Vdc Input | 5 | Rate Output |
| 2 | +Vdc Input | 6 | No connection, Leave Open |
| 3 | Power Ground | 7 | Built-in-test |
| 4 | Signal Ground |
One of the key features of our product is its platform stabilization, which ensures that our customer's equipment stays level and secure even in the face of unexpected movements or vibrations. This feature is particularly useful for industries such as filmmaking, construction, and transportation, where precision and stability are critical for successful outcomes.
Our product also includes a short term navigation system, which provides real-time data and guidance for short distance travels. This feature is ideal for industries such as logistics and warehousing, where efficient and precise navigation is essential for meeting strict deadlines and optimizing operations.
In addition to short term navigation, our product leverages GPS augmentation to provide accurate and reliable positioning information. This feature is particularly useful for outdoor industries such as agriculture and mining, where equipment must operate in complex and often remote environments.
For those in the photography and videography industry, our product includes camera stabilization to ensure smooth and steady footage even during high-speed or rugged activities. This feature enables filmmakers and photographers to capture exceptional shots and footage without compromising quality.
Our product also offers a comprehensive instrumentation system, which provides valuable data and analytics for tracking performance, identifying potential issues, and optimizing operations. This feature is particularly useful for industries such as manufacturing and energy, where equipment performance and efficiency are critical for business success.
In addition to platform stabilization, our product includes ride control stabilization, which ensures a smooth and comfortable ride for passengers and operators alike. This feature is ideal for industries such as transportation and aviation, where passenger safety and comfort are top priorities.
Finally, our product includes wind turbine control, which enables precise and efficient control of wind turbines for optimal energy production. This feature is crucial for the renewable energy industry, as it ensures the maximum utilization of wind energy while minimizing environmental impact.
Welcome to our Technical Support and Services for the Gyroscope Sensor. Our dedicated team is here to assist you with any technical issues or inquiries you may have regarding the use, installation, or maintenance of your gyroscope sensor. We are committed to providing you with the best possible support to ensure your product functions optimally.
Our support includes detailed product documentation, frequently asked questions (FAQs), and troubleshooting guides designed to help you resolve common issues quickly. For more complex or specific concerns, our technical support team is ready to provide personalized assistance.
If you require further assistance, please refer to the 'Contact Us' section of our website (contact information excluded as per request) where you can find additional resources and support channels to get in touch with our professional technical support team.
Thank you for choosing our Electronic Gyroscope Sensor. We look forward to serving you and ensuring the success of your projects
The Electronic Gyroscope Sensor is meticulously packaged in an anti-static bag to ensure protection against electrostatic discharge (ESD). The sensor is then securely encased in a custom-fit, high-density foam mold, which provides superior shock absorption during transit. This foam is placed within a durable, branded cardboard box that shields the sensor from environmental factors and potential damage while in transit.
The exterior of the box features clear labeling with the product name, handling instructions, and a barcode for easy tracking. All our packages are sealed with tamper-evident tape, offering an additional layer of security.
For shipping, the Electronic Gyroscope Sensor is dispatched via a trusted courier service to ensure timely and safe delivery. We include insurance for the full value of the product, offering peace of mind and protection for your investment. Tracking information is provided as soon as the package is dispatched, allowing for real-time monitoring of the shipment until it arrives at its destination.
