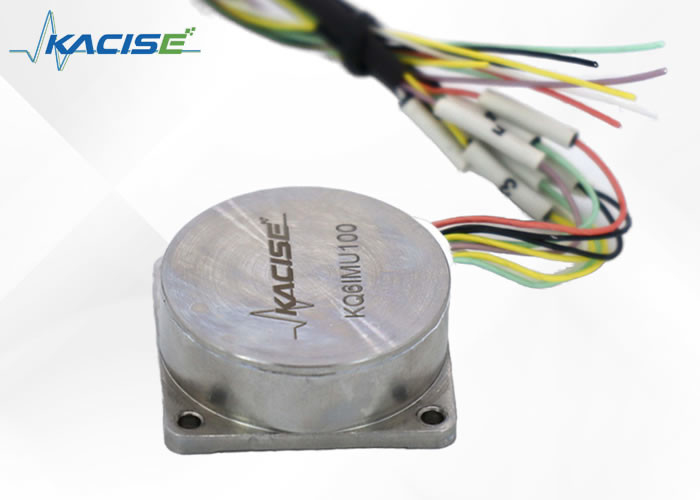

Speed 460800bps RS422 Gyroscope Sensor For Precision Navigation,Bias 0±0.02g

Speed 460800bps RS422 Gyroscope Sensor For Precision Navigation,Bias 0±0.02g

  • Speed 460800bps RS422 Gyroscope Sensor For Precision Navigation,Bias 0±0.02g
  • Speed 460800bps RS422 Gyroscope Sensor For Precision Navigation,Bias 0±0.02g
Speed 460800bps RS422 Gyroscope Sensor For Precision Navigation,Bias 0±0.02g
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KQ6IMU100
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Scale Factor: 1000±30LSB/g Scale Factor Nonlinearity: ≤200ppm
Input Voltage: 5±0.2 V DC Vibration Error: ≤0.03°/s
Baud Rate: 460800bps Inner Data Update Speed: ≤2.5ms
Bias: 0±0.02g Interface: RS422(1-bit Start +8-bit Data +1-bit Even Parity Check +1-bit Stop)
High Light:

Precision Navigation RS422 Gyroscope Sensor

,

460800bps RS422 Gyroscope Sensor

Product Description:

KQ6IMU100 is a cutting-edge inertial measurement module that has been developed using innovative MEMS technology. One of its key functionalities is the ability to accurately measure angular velocity and acceleration data of the carrier in three dimensions.

MEMS is a highly advanced micro-device or system, which incorporates a number of micro-components such as micro-sensors, micro-actuators, micro-mechanical structures, micro-power and micro-energy systems, signal processing and control circuits, high-performance electronic integrated devices, as well as communications and interfaces. MEMS is an intelligent, independent system, which can be mass-produced and has a size of only a few millimeters, or even smaller, with a micro-structure that is generally measured in the order of microns or even nanometers.

In the market, there are various kinds of MEMS products ranging from accelerometers, optical sensors and pressure sensors to gyroscopes, humidity sensors, gas sensors and multiple integrated products designed and developed using MEMS technology.






Features:

● Small Size,27mmX27mmX10mm

● Easy to be integrated by connect the digital interface RS422.

● Dual redundancy design to sets of gyro and accelerator integrated.

● Bias < 0.05°



Technical Parameters:



Parameter KQ6IMU100
Power supply parameter
Input Voltage 5±0.2 V DC
Input Current ≤100mA
Product performance
GYRO Range ±400°/s
Bias 0±0.05°/s
Bias stability ≤30°/h
Scale factor 70±3LSB/°/s
Scale factor nonlinearity ≤200ppm
Vibration error ≤0.03°/s
Bandwidth ≥100Hz
Accelerometer Range ±10g
Bias 0±0.02g
Bias stability ≤0.002g
Scale factor 1000±30LSB/g
Bandwidth ≥400Hz
Interface RS422(1-bit start +8-bit data +1-bit even parity check +1-bit stop)
Baud rate 460800bps
Inner Data update speed ≤2.5ms
Environment
Operating temperature -40~+65℃
Random vibration 6.06 g


Dimensions:



Speed 460800bps RS422 Gyroscope Sensor For Precision Navigation,Bias 0±0.02g 0


Applications:

Robotics, the field involving the design, development, and operation of robots, is a rapidly growing area of technology. Robots are used for a variety of applications, from manufacturing to exploration to healthcare. As the demand for automation and efficiency increases, so too does the need for highly skilled robotics professionals.

Flight testing involves subjecting aircraft to a variety of conditions to evaluate their performance and safety. This process is crucial for identifying any potential issues and ensuring that the aircraft meets certain standards. Flight testing requires expertise in engineering, physics, and aviation.

Guidance and control systems are essential for ensuring that vehicles and aircrafts move safely and efficiently. These systems use various sensors and algorithms to provide real-time information on the vehicle's position and movement, and often use automatic and autonomous controls to make adjustments as necessary.

Short term navigation involves the use of advanced technologies like global positioning systems (GPS) and inertial navigation systems (INS) to provide accurate position information for aircraft and other vehicles. This information is crucial for ensuring that the vehicle travels safely and efficiently by providing up-to-date information on the vehicle's location and direction.

Aerospace is a field that encompasses a wide range of technologies related to the design, development, and operation of aircraft and spacecraft. This includes not only the areas mentioned above, but also aerodynamics, propulsion systems, materials science, and more. Aerospace professionals work in a variety of areas, including research and development, manufacturing, and operations.



Support and Services:

Our Electronic Gyroscope Sensor is designed with precision to provide reliable performance for your applications. Our support includes detailed product documentation, an extensive online knowledge base, and troubleshooting guides to help you resolve any issues you may encounter.

We are committed to the satisfaction of our customers and strive to provide exceptional after-sales support. Should you have any feedback or suggestions, we welcome your input as it helps us to continuously improve our products and services.



Packing and Shipping:

The Electronic Gyroscope Sensor is housed in a robust, anti-static packaging to ensure the device remains secure and undamaged during transit. The interior of the packaging is lined with a cushioning material that absorbs shocks and vibrations, providing additional protection for the sensitive components of the sensor.

Prior to shipment, each package is sealed and subjected to a thorough inspection to guarantee that the sensor is securely enclosed. The exterior of the packaging is clearly labeled with handling instructions and the package contents to facilitate careful handling and to inform the recipient about the enclosed device.

For shipping, the packaged Electronic Gyroscope Sensor is placed in a larger, durable cardboard box designed to withstand the rigors of transport. This box is further secured with packing tape and, if necessary, additional cushioning materials are added to prevent movement within the box during shipment.

Each shipment includes a detailed packing slip with product information and a unique serial number for inventory tracking and quality control purposes. The package is then dispatched through a reliable courier service with options for tracking and insurance to ensure the Electronic Gyroscope Sensor arrives at its destination promptly and in pristine condition.
