Sensitivity Accelerometer Sensor For Precise Vibration Detection With Bias ≤5mg And Bias Temperature Sensitivity ≤10μg/℃

Product Description:

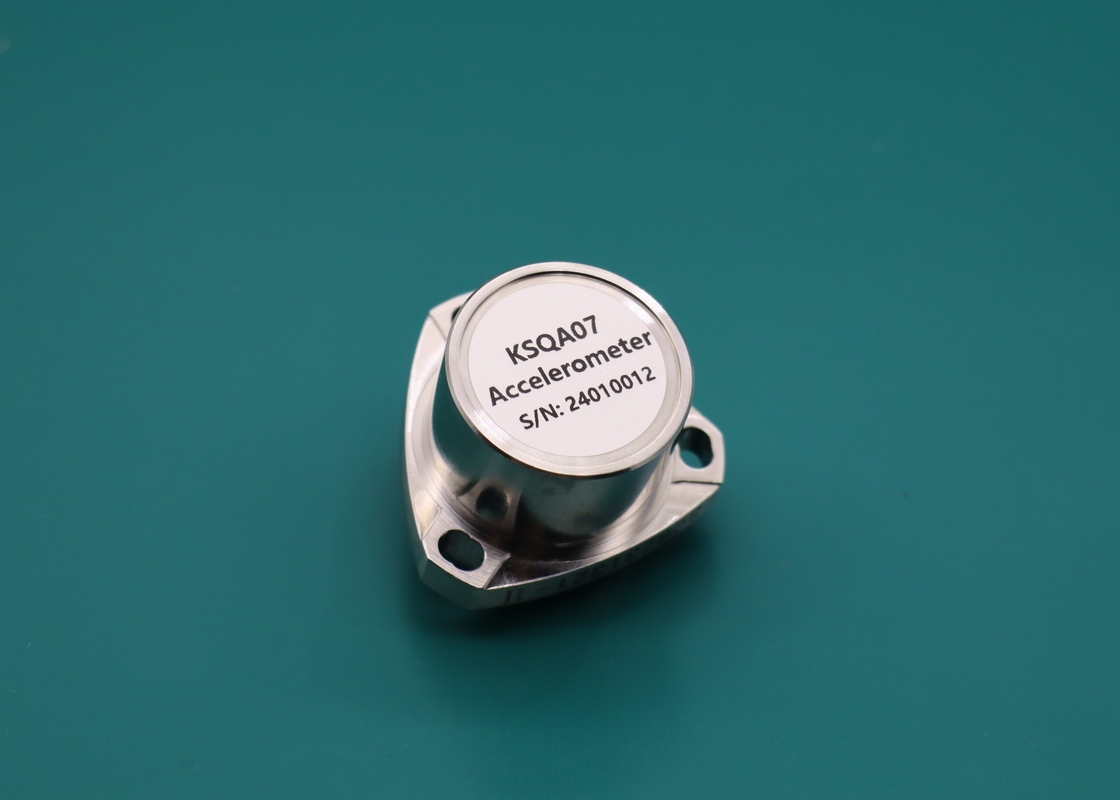

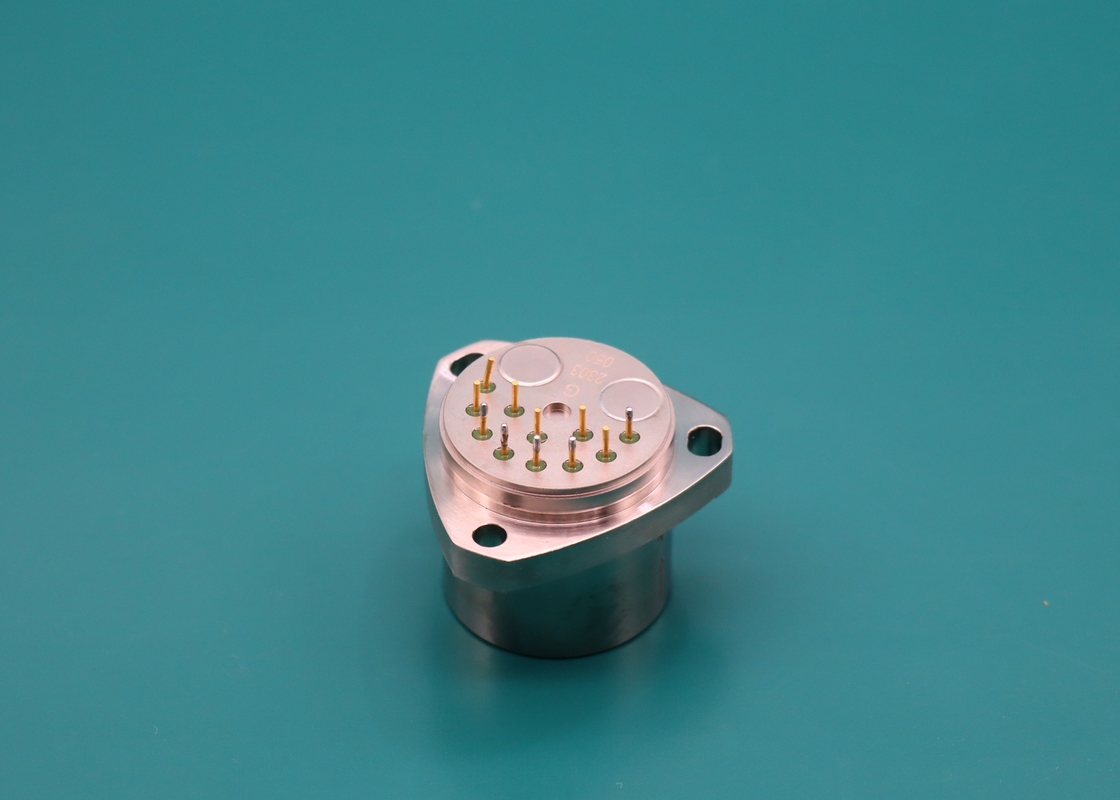

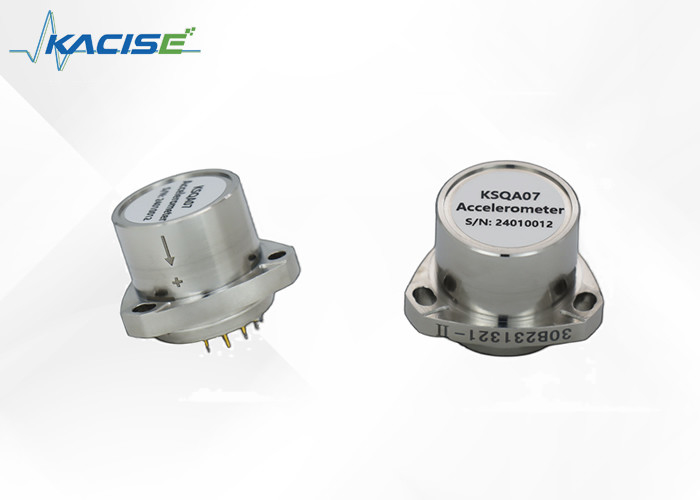

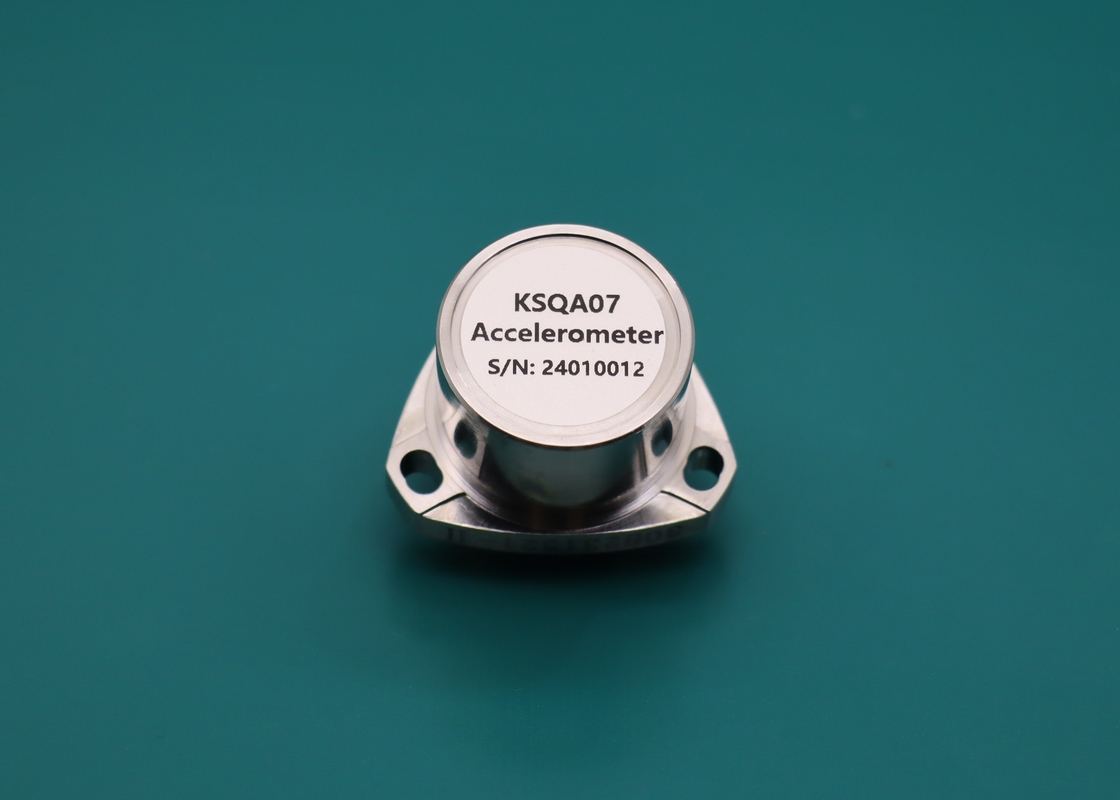

The Quartz flexible accelerometer is a high-precision instrument that comprises quartz glass flexible support and advanced servo circuit based on the principal of inertia. This instrument is designed to accurately measure acceleration and provide an output precisely proportional to the input acceleration. The accelerometer has a current output form of high output impedance which enables users to choose the sampling resistance according to their requirement without affecting the stability of the system.

Currently, our quartz flexible accelerometer has formed a series of products which includes dozens of types. These range from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. Our products are widely used in various fields such as aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields. The quartz flexible accelerometer provides signals for various systems such as navigation, guidance, control, leveling, monitoring, and more.

The Quartz flexible accelerometer is widely used in various fields for different applications. Aerospace, aviation, and navigation industries use this instrument for measuring acceleration and providing precise signals for navigation and guidance systems. The ship, vehicle, and petroleum industries use this accelerometer for monitoring systems. The geotechnical engineering field uses this instrument to monitor structures and provide accurate data for leveling systems.

Features:

• Product Name: Accelerometer Sensor
• Weight: ≤75g
• Storage Temperature: -55~ +80(℃)
• Vibration Peak Sine: 15g
• Threshold: <1μg
• Size: Ø25×29mm
• Analog Devices accelerometers
• Mini accelerometer
• High g accelerometer

Features:

● Excellent index repeatability

● Analog output

● Build-in digital temperature sensor

● Wide load resistance range

● Triangle precision mounting flanges

● Application in the inertial navigation system of the new generation weapon

● Two models are available

Technical Parameters:

Applications:

● Inertial monitoring system

● Inertial navigation system

● Flight control system

● Vibration monitoring

● Oil drilling platforms and geological exploration

● Inertial measurement unit

● Motion monitoring equipment

Support and Services:

The Accelerometer Sensor product comes with the following technical support and services:

- Installation support and guidance

- Troubleshooting assistance for any technical issues

- Regular software updates to ensure optimal performance

- Repair and maintenance services for any damages or malfunctions

- Product warranty for a specified period of time

Packing and Shipping:

Product Packaging:

The accelerometer sensor will be carefully packed in a sturdy box with adequate padding to ensure safe transportation. The product will also be sealed in a waterproof bag to protect it from moisture during delivery.

Shipping:

We offer free standard shipping within the United States. For international orders, shipping rates will vary depending on the destination and weight of the package. We use reputable shipping carriers to ensure timely and secure delivery of your order.
