Product Description:

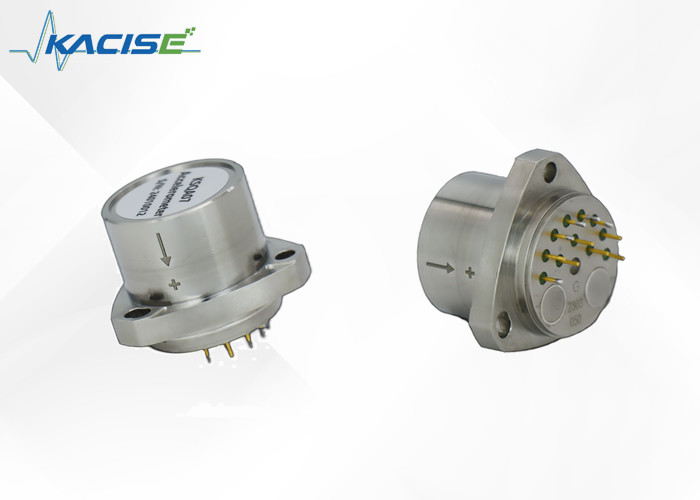

The Quartz Flexible Accelerometer is an instrument that is comprised of a quartz glass flexible support and an advanced servo circuit that is based on the principle of inertia. The output of the accelerometer is precisely proportional to the input acceleration when the carrier is subjected to acceleration. It is a precision instrument that is capable of delivering accurate and consistent results.
Our accelerometer comes with a high output impedance current output form, and users can choose the sampling resistance based on their requirements without affecting the stability of the system. We have created a range of products that cater to the needs of different industries and fields. We have dozens of types, ranging from high-precision μg KSQA07 accelerometers for satellite microgravity measurement to low-cost, anti-harsh environment KSQA13 accelerometers.
Our Quartz Flexible Accelerometers are widely used in a variety of industries including aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering and many more. The accelerometers provide signals for navigation, guidance, control, leveling, monitoring, and other essential systems and have become an indispensable part of modern technology.
Features:
- Product Name: Accelerometer Sensor

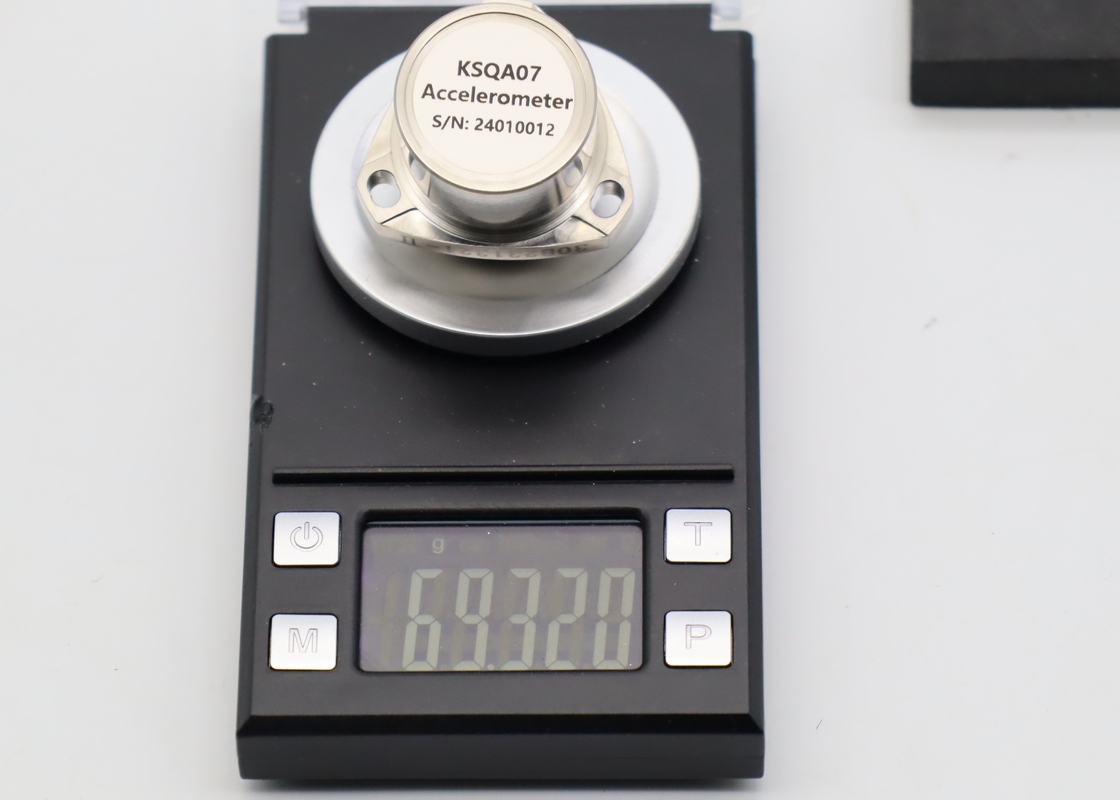

- Weight: ≤75g
- Storage Temperature: -55~ +80(℃)
- Vibration Peak Sine: 15g
- Threshold: <1μg
- Size: Ø25×29mm
- Analog Devices accelerometers
- Mini accelerometer
- High g accelerometer
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range

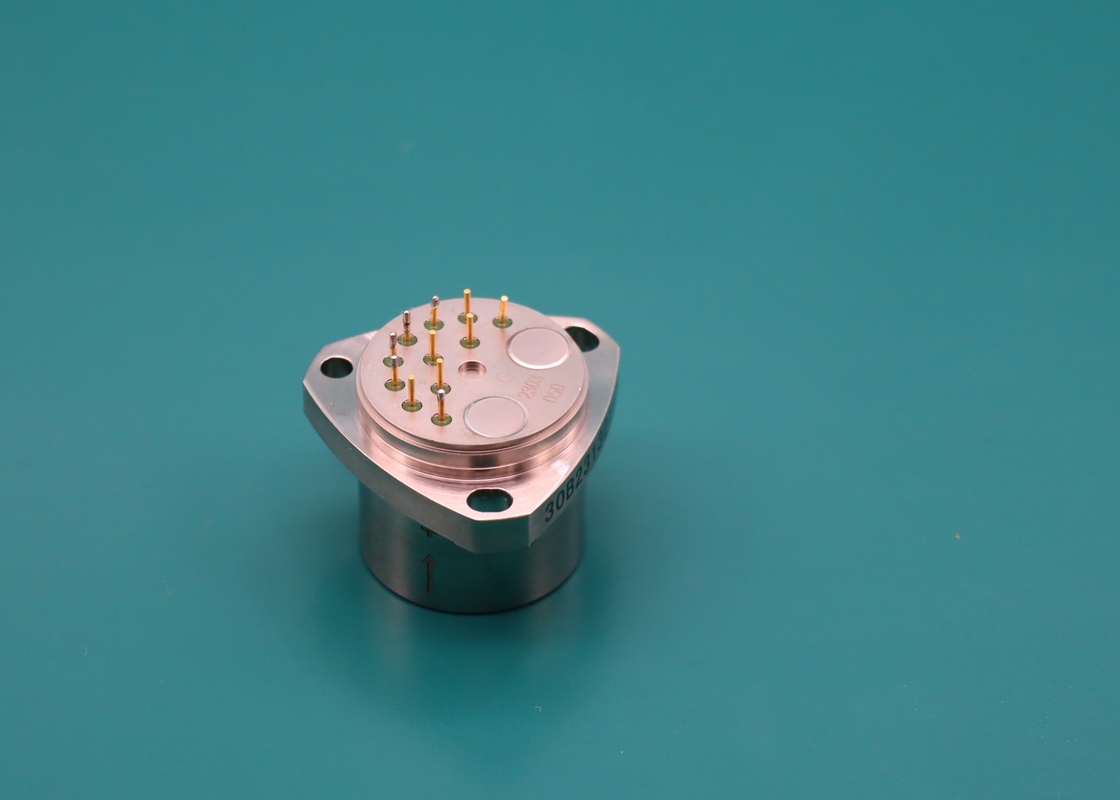

● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter |
KSQA07A |
KSQA07B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±50g |
±20g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤10μg/°C |
≤20μg/°C |
| One-month Composite Repeatability (1σ) |
≤10μg |
≤20μg |
| Six-month Composite Repeatability (1σ) |
≤15μg |
|
| Scale Factor |
1.2 ~ 1.6mA/g |
1.2 ~ 1.6mA/g |
| Temperature Sensitivity |
≤10ppm/°C |
≤30ppm/°C |
| One-month Composite Repeatability (1σ) |
≤10ppm |
≤30ppm |
| Six-month Composite Repeatability (1σ) |
≤30ppm |
|
| Linearity |
≤10μg/g2 |
≤30μg/g2 |
| Threshold |
<1μg |
<5μg |
| Resolution |
<1μg |
<5μg |
| Size |
Ø25.4×29mm |
Ø25.4×29mm |
| Weight |
≤75g |
≤75g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
The Accelerometer Sensor product technical support and services include:
- Troubleshooting assistance
- Product documentation and manuals
- Software and firmware updates
- Warranty information and support
- Repair and replacement services
- Calibration and testing services
- Technical training and support
Packing and Shipping:
Product Packaging:
The accelerometer sensor is carefully packaged to ensure its safety during transportation. The sensor is placed in a sturdy cardboard box with sufficient padding material to prevent any damage during shipping. The box is sealed with strong adhesive tape to keep the sensor secure and protected.
Shipping:
Once the order is confirmed, the accelerometer sensor is shipped through a reliable courier service. The shipping charges depend on the destination and the weight of the package. Customers will be provided with a tracking number to track the status of their shipment. The estimated delivery time will be communicated to the customer at the time of placing the order.
