Place of Origin:
China (Mainland)
Brand Name:
Kacise
Certification:
certificate of explosion-proof, CE
Model Number:
KSQA07

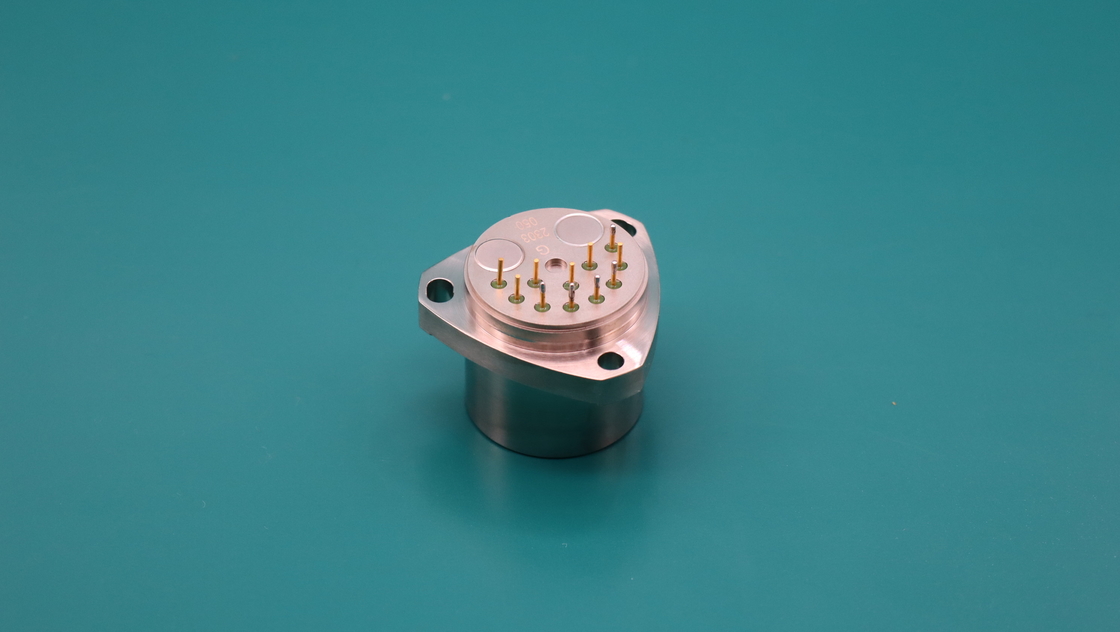

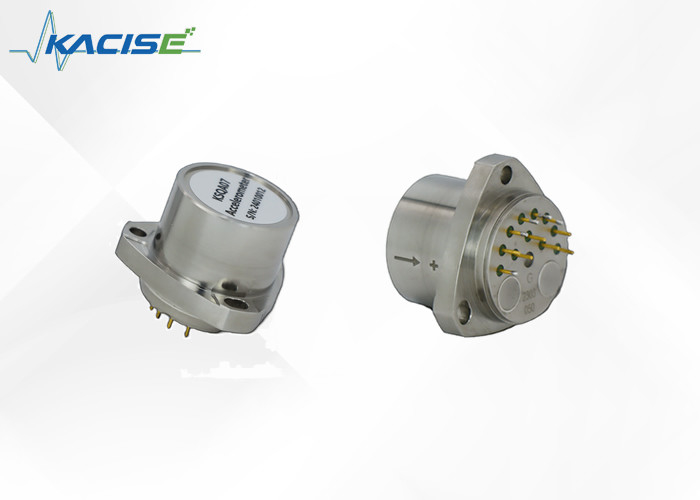

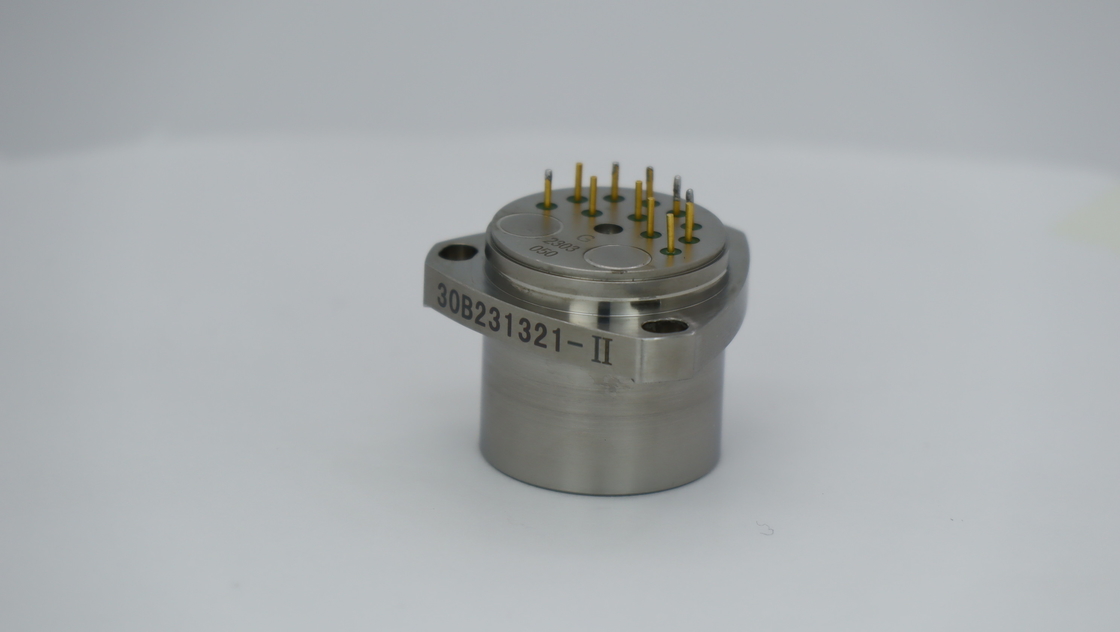

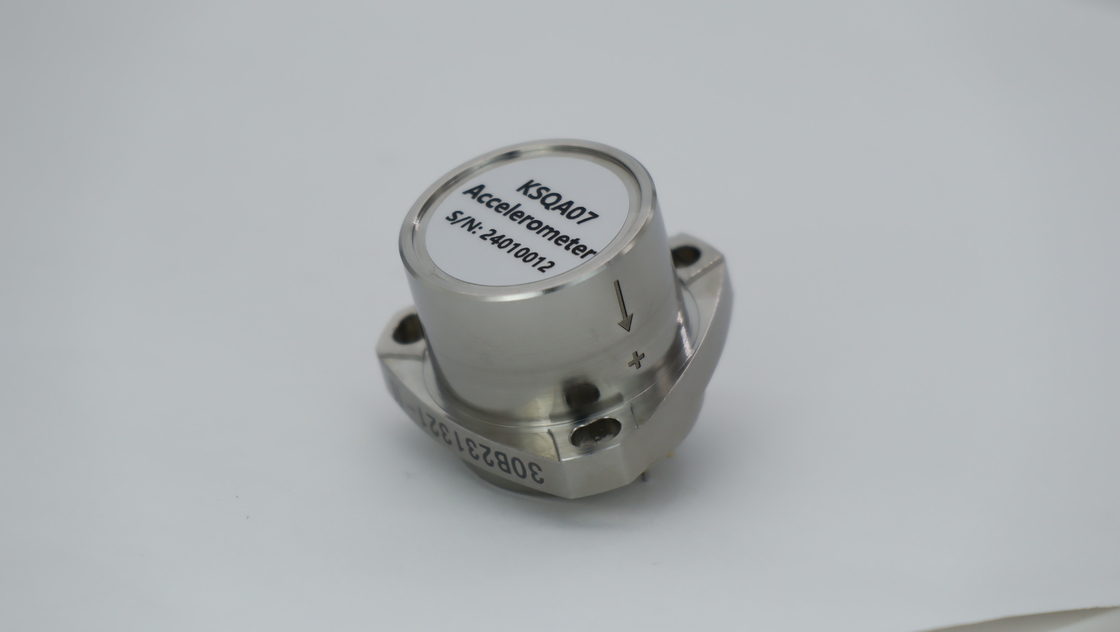

The Quartz flexible accelerometer is a precision instrument that consists of a quartz glass flexible support and advanced servo circuits. It operates based on the principle of inertia. When subjected to acceleration, the output of the accelerometer is precisely proportional to the input acceleration. One of the unique features of our accelerometer is its high output impedance. This means that users can choose the sampling resistance that best suits their requirements without affecting the stability of the system.
Our Quartz flexible accelerometer product line has expanded significantly over the years, producing a series of products that range from the high-precision μg KSQA07 accelerometer suitable for satellite microgravity measurement to the low-cost KSQA13 accelerometer specifically designed to operate in harsh environments. We offer dozens of product types that are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields. These accelerometers are capable of providing signals for navigation, guidance, control, leveling, monitoring, and other systems.
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
| Parameter | KSQA07A | KSQA07B |
| Power supply parameter | ||
| Power Voltage | ±12~±18V DC | |
| Product performance | ||
| Input Range | ±50g | ±20g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤10μg/°C | ≤20μg/°C |
| One-month Composite Repeatability (1σ) | ≤10μg | ≤20μg |
| Six-month Composite Repeatability (1σ) | ≤15μg | |
| Scale Factor | 1.2 ~ 1.6mA/g | 1.2 ~ 1.6mA/g |
| Temperature Sensitivity | ≤10ppm/°C | ≤30ppm/°C |
| One-month Composite Repeatability (1σ) | ≤10ppm | ≤30ppm |
| Six-month Composite Repeatability (1σ) | ≤30ppm | |
| Linearity | ≤10μg/g2 | ≤30μg/g2 |
| Threshold | <1μg | <5μg |
| Resolution | <1μg | <5μg |
| Size | Ø25.4×29mm | Ø25.4×29mm |
| Weight | ≤75g | ≤75g |
| Environment | ||
| Operating Temperature | -45°C~+80°C | |
| Storage temperature | -55°C～+80°C | |
| Shock | 100g | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz | |
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
The Accelerometer Sensor product technical support and services include:
- Troubleshooting assistance for product setup, installation, and usage
- Assistance with product configuration and calibration
- Help with interpreting and analyzing sensor data
- Guidance on integrating the sensor with other systems and devices
- Access to software updates and technical documentation
- Repair and replacement services for defective products
The accelerometer sensor product is carefully packaged to ensure that it arrives at your doorstep in excellent condition. The product is placed in a sturdy cardboard box and secured with packaging material to prevent any damage during shipping.
Shipping:
Orders for accelerometer sensor products are shipped via standard international shipping, usually within one month.
