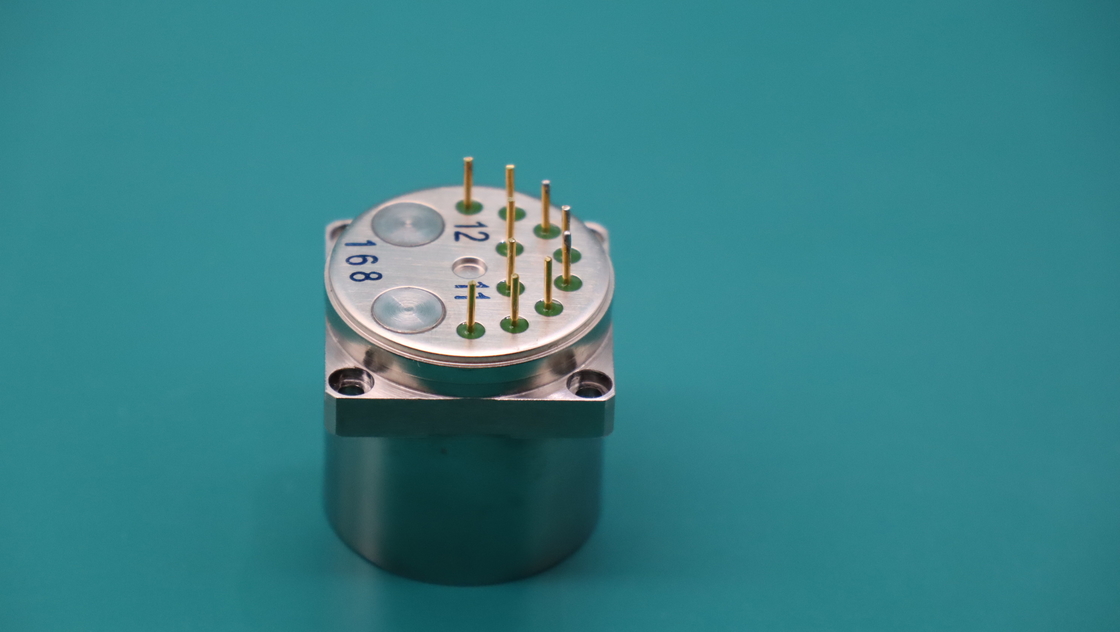

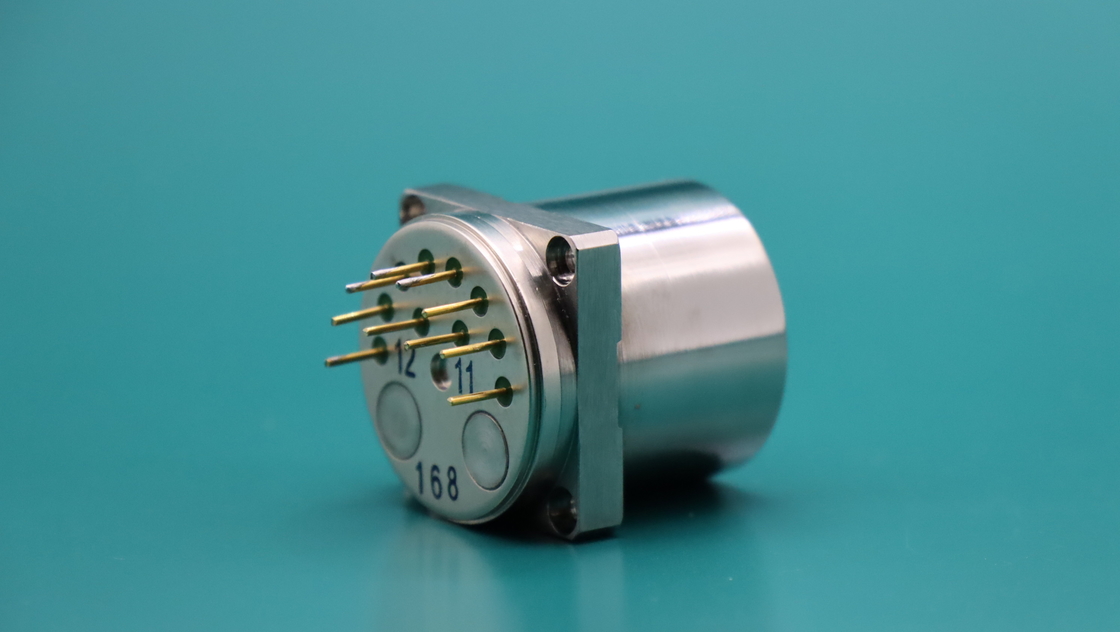

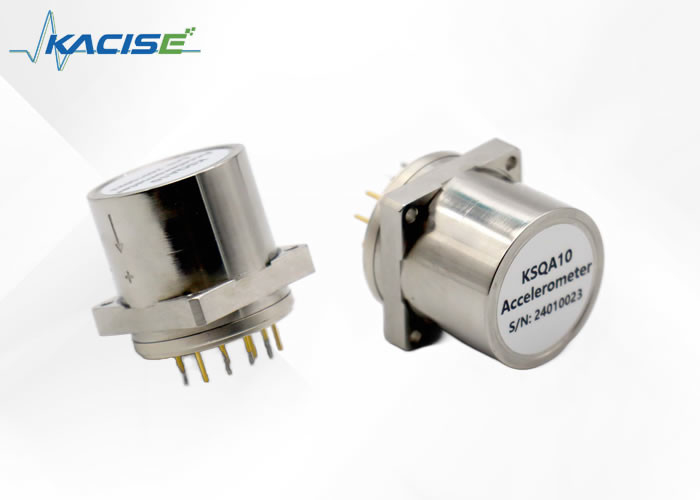

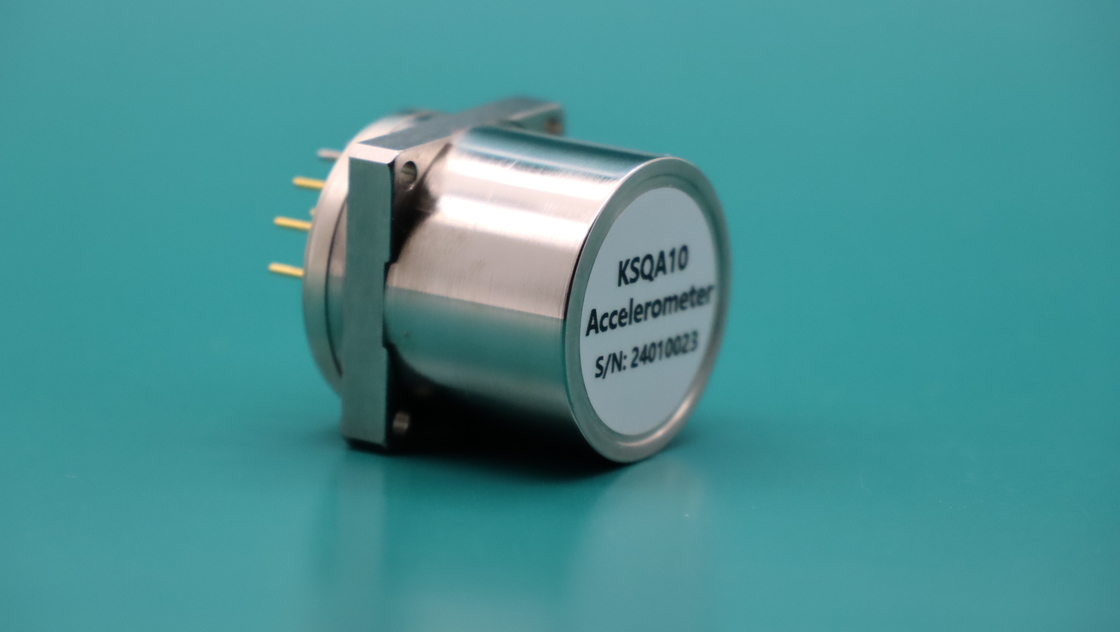

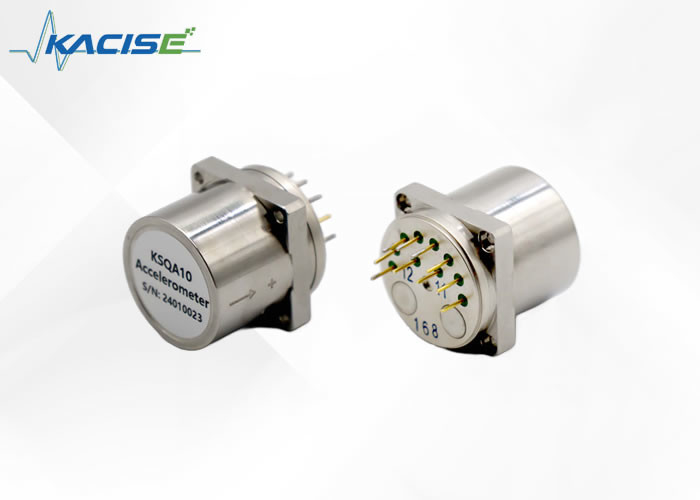

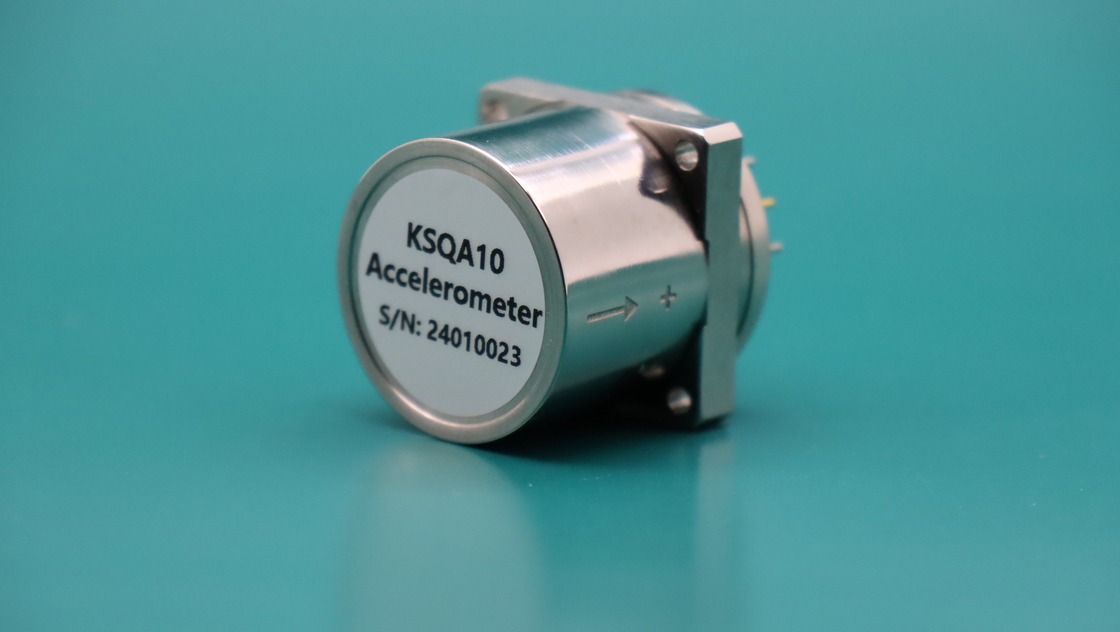

Product Description:
The Quartz flexible accelerometer is a precise instrument that is made up of a quarts glass flexible support and an advanced servo circuit based on the principle of inertia. The output of the accelerometer is precisely proportional to the input acceleration when the carrier is subjected to acceleration. This accelerometer has a current output form of high output impedance, which gives users the flexibility to choose the sampling resistance based on their requirements without affecting the stability of the system.
Currently, we have a series of products for our quartz flexible accelerometer. It ranges from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. There are as many as dozens of varieties available that are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields. Our accelerometer provides signals for navigation, guidance, control, leveling, monitoring, and other systems.
About the Quartz Flexible Accelerometer
The Quartz flexible accelerometer is a precise instrument that is made up of a quarts glass flexible support and an advanced servo circuit based on the principle of inertia. The output of the accelerometer is precisely proportional to the input acceleration when the carrier is subjected to acceleration. This accelerometer has a current output form of high output impedance, which gives users the flexibility to choose the sampling resistance based on their requirements without affecting the stability of the system.
Product Range and Usage
Currently, we have a series of products for our quartz flexible accelerometer. It ranges from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. There are as many as dozens of varieties available that are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields. Our accelerometer provides signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter |
KSQA10A |
KSQA10B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±20g |
±20g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤30μg/°C |
≤50μg/°C |
| One-month Composite Repeatability (1σ) |
≤30μg |
≤50μg |
| Scale Factor |
1.2 ~ 1.6mA/g |
1.2 ~ 1.6mA/g |
| Temperature Sensitivity |
≤30ppm/°C |
≤80ppm/°C |
| One-month Composite Repeatability (1σ) |
≤30ppm |
≤50ppm |
| Linearity |
≤15μg/g2 |
≤40μg/g2 |
| Threshold |
<5μg |
<5μg |
| Resolution |
<5μg |
<5μg |
| Size |
Ø25.4×32mm |
Ø25.4×32mm |
| Weight |
≤70g |
≤70g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
