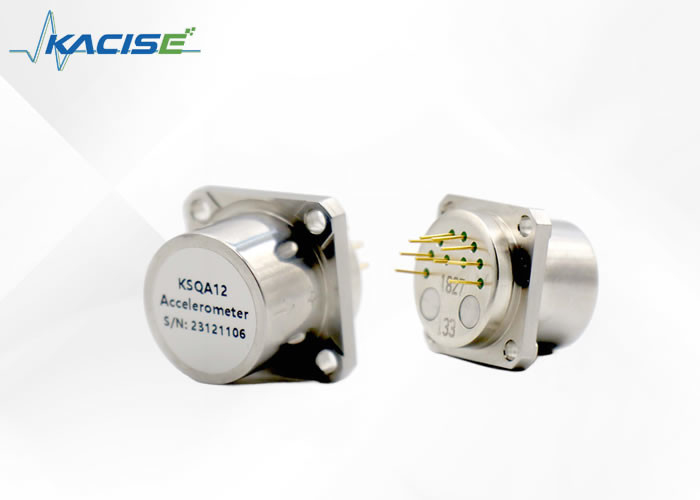

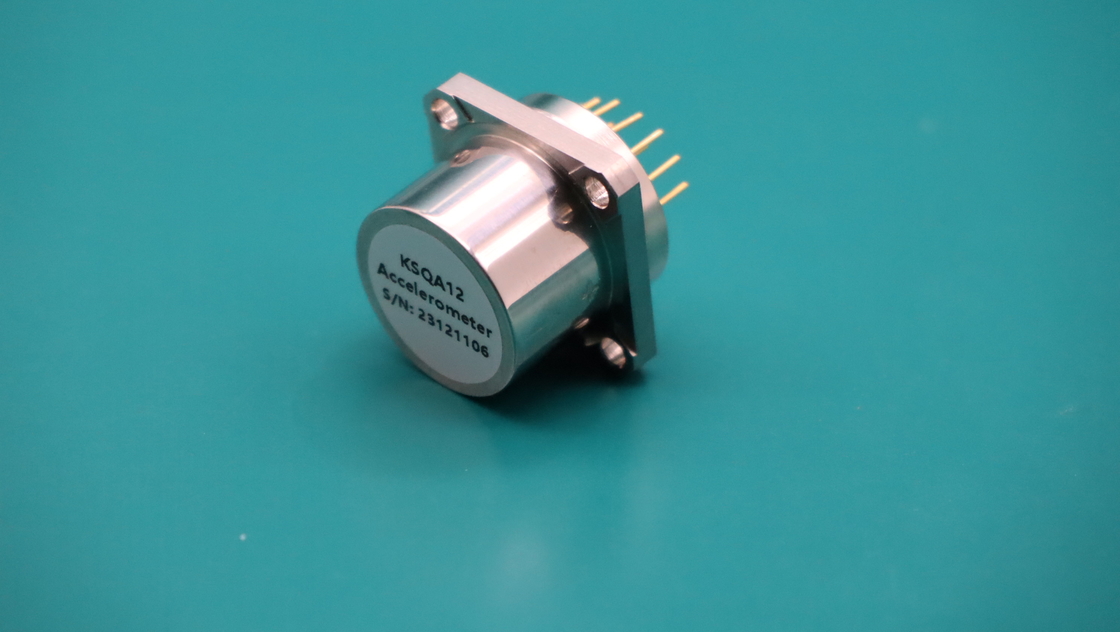

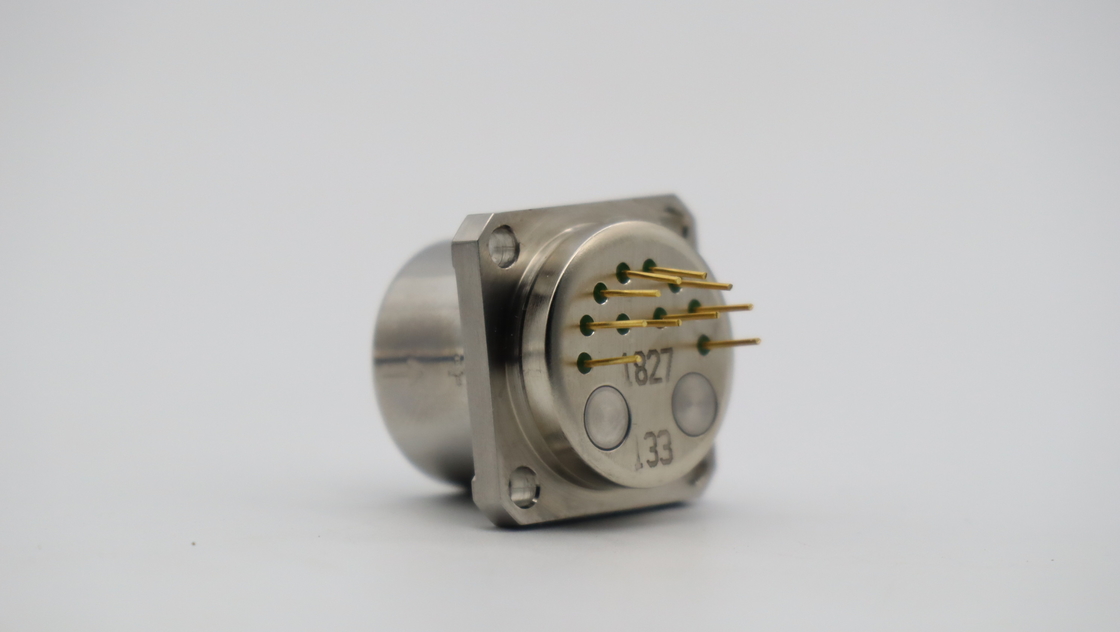

Product Description:
The Quartz flexible accelerometer is an instrument of high precision that is comprised of a quartz glass flexible support and an advanced servo circuit. This is based on the principal of inertia. When the carrier is subjected to acceleration, the output of the accelerometer is precisely proportional to the input acceleration.
In addition, our accelerometer has a high output impedance current output form which allows users to choose the sampling resistance they need without affecting the stability of the system. It is highly versatile and customizable device that can be adjusted to meet the needs and preferences of different users.
Currently, our quartz flexible accelerometer has a wide range of product offerings. These types range from the high-precision μg KSQA07 accelerometer used for satellite microgravity measurements to the low-cost, anti-harsh environment KSQA13 accelerometer. The series includes dozens of products that are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and many other fields. They provide invaluable signals for navigation, guidance, control, leveling, monitoring, and other systems.
Whether you are in need of a high-precision and specialized accelerometer for your satellite microgravity measurement or a low-cost yet versatile accelerometer for your geotechnical engineering project, we have a product that meets your needs. With our quartz flexible accelerometer, you can expect precision, stability and high-quality performance in all your applications.
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Triangle precision mounting flanges
● Application in unmanned aircraft and petroleum pipeline
● Two models are available
Technical Parameters:
| Parameter |
KSQA12A |
KSQA12B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±80g |
±30g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤40μg/°C |
≤50μg/°C |
| One-month Composite Repeatability (1σ) |
≤40μg |
≤80μg |
| Scale Factor |
0.6 ~ 1.3mA/g |
0.9 ~ 1.3mA/g |
| Temperature Sensitivity |
≤60ppm/°C |
≤60ppm/°C |
| One-month Composite Repeatability (1σ) |
≤40ppm |
≤80ppm |
| Linearity |
≤50μg/g2 |
≤50μg/g2 |
| Threshold |
<5μg |
<5μg |
| Resolution |
<5μg |
<5μg |
| Size |
Ø18.2×23.6mm |
Ø18.2×23.6mm |
| Weight |
≤35g |
≤35g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
