Name: KA2000 inertial-grade accelerometer,Aerospace inertial navigation,Input Range ±60 [g]
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KA2000
Price: 478.00 USD
Availability: InStock

Home > products > Accelerometer Sensor >

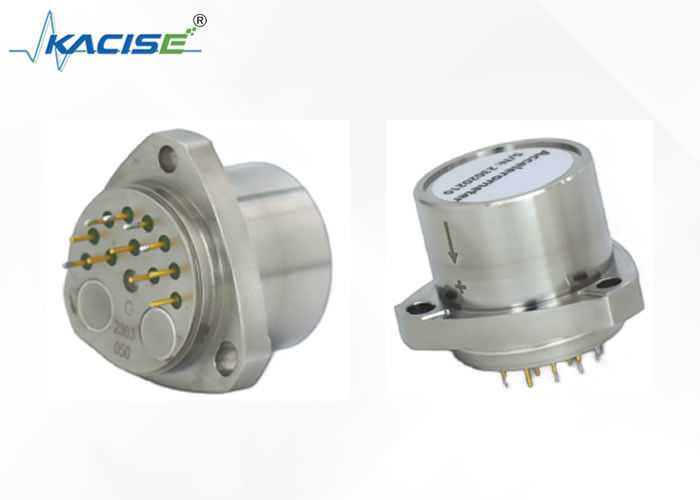

KA2000 inertial-grade accelerometer,Aerospace inertial navigation,Input Range ±60 [g]

Place of Origin:

CHINA

Brand Name:

kacise

Certification:

Model Number:

KA2000

Document:

KA2000 Accelerometer_v1.0.pdf

Request A Quote

KA2000 inertial-grade accelerometer,Aerospace inertial navigation,Input Range ±60 [g]

Product Details

Temperature Sensitivity :

<30[µg/ºC]

Resolution/Threshold:

<1 [µg]

Scale Factor :

1.20 To 1.46[mA/g]

Axis Misalignment:

<2000[µrad]

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell QA2000-030 Accelerometer Sensor, Aerospace Applications

Get Best Price

Magnetic Suction Linear Accelerometer Sensor Uniaxial Module Vibration Performance

Get Best Price

K-3JSJ-001 Lightweight 3 Axis Acceleration Sensor /Triaxial High Speed Accelerometer 0~3 V

Get Best Price

Stable Accelerometer Sensor Fiber Optic Gyroscope Easy To Carry High Performance

Get Best Price

86--17719566736

Contact Now

Product Description

Product Introduction:

The KA2000 inertial-grade accelerometer produced by KACISE has long-term repeatability and excellent reliability. It is mainly used in core navigation components in the aerospace field, while-drilling measurement in oil and gas exploration and other scenarios.

The integral electronics develops an acceleration-proportional output current providing both static and dynamic acceleration measurement. By use of customer supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

The KA2000 also includes a current-output, internal temperature sensor. By applying temperature-compensating algorithms, bias, scale factor, and axis misalignment performance are dramatically improved.

Feature:

l Excellent turn-on repeatability performance

l Environmentally rugged

l Analog output

l Field-adjustable range

l Three fastener precision mounting flange

l Internal temperature sensor for thermal compensation

l Dual built-in self-test

Application:

l Aerospace inertial navigation

l High-precision positioning and navigation

l Autonomous driving and mobile mapping

l Industrial and scientific research equipment

l Military guidance and tactical missile systems

l Measurement while drilling for oil and gas exploration

Dimensions

Technical Specifications

Performance	KA2000-030	KA2000-020	KA2000-010
Input Range [g]	±60	±60	±60
Bias [mg]	<4	<4	<4
One-year Composite Repeatability [µg]	<160	<220	<550
Temperature Sensitivity [µg/ºC]	<30	<30	<30
Scale Factor [mA/g]	1.20 to 1.46	1.20 to 1.46	1.20 to 1.46
One-year Composite Repeatability [ppm]	<310	<500	<600
Temperature Sensitivity [ppm/ºC]	<180	<180	<180
Axis Misalignment [µrad]	<2000	<2000	<2000
One-year Composite Repeatability [µrad]	<100	<100	<100
Vibration Rectification [µg/g²rms]	<20 (50-500 Hz)	<40 (50-500 Hz)	<40 (50-500 Hz)
Vibration Rectification [µg/g²rms]	<60 (500-2000 Hz)	<60 (500-2000 Hz)	<150 (500-2000 Hz)
Intrinsic Noise [µg-rms]	<7 (0-10 Hz)	<7 (0-10 Hz)	<7 (0-10 Hz)
	<70 (10-500 Hz)	<70 (10-500 Hz)	<70 (10-500 Hz)
	<1500 (500-10,000 Hz)	<1500 (500-10,000 Hz)	<1500 (500-10,000 Hz)
Environment	KA2000-030	KA2000-020	KA2000-010
Operating Temperature Range [ºC]	-55 to +95	-55 to +95	-55 to +95
Shock [g]	250	250	250
Vibration Peak Sine [g]	15 @ 20-2000 Hz	15 @ 20-2000 Hz	15 @ 20-2000 Hz
Resolution/Threshold [µg]	<1	<1	<1
Bandwidth [Hz]	>300	>300	>300
Thermal Modeling	KA2000-030	KA2000-020	KA2000-010
	YES	YES	YES
Electrical	KA2000-030	KA2000-020	KA2000-010
Quiescent Current per Supply [mA]	<16	<16	<16
Quiescent Power [mW] @ ±15 VDC	<480	<480	<480
Electrical Interface	Temp Sensor	Temp Sensor	Temp Sensor
	Voltage Self Test	Voltage Self Test	Voltage Self Test
	Current Self Test	Current Self Test	Current Self Test
	Power / Signal Ground	Power / Signal Ground	Power / Signal Ground
	-10 VDC Output +10 VDC Output	-10 VDC Output +10 VDC Output	-10 VDC Output +10 VDC Output
Input Voltage [VDC]	±13 to ±28	±13 to ±28	±13 to ±28
Physical	KA2000-030	KA2000-020	KA2000-010
Weight [grams]	71± 4	71± 4	71± 4
Diameter below mounting surface [inches]	Ø1.005 Max	Ø1.005 Max	Ø1.005 Max
Height - bottom to mounting surface [inches]	.585 Max	.585 Max	.585 Max
Case Material	300 Series Stainless Steel	300 Series Stainless Steel	300 Series Stainless Steel
