Name: KSGYR103F Fibre Optic Gyroscope 60x60x32mm +5V Supply
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR103F
Price: 431.00 USD
Availability: InStock

Home > products > Electronic Gyroscope Sensor >

KSGYR103F Fibre Optic Gyroscope 60x60x32mm +5V Supply

Fibre Optic Gyroscope 60x60x32mm

Fibre Optic Gyroscope +5V Supply

Fluid Level Meter with warranty

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSGYR103F

Request A Quote

Product Details

Supply Voltage:

+5(V)

Dimensions:

60×60×32 Mm

Start Time:

≤3 S

Bias Stability (10s Smooth -45°C~+70°C):

≤0.5 °/h

Power Dissipation (full Temperature):

<4 W

Operate Temperature:

-45°C ～+70°C

Highlight:

Fibre Optic Gyroscope 60x60x32mm

Fibre Optic Gyroscope +5V Supply

Fluid Level Meter with warranty

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

Get Best Price

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

Get Best Price

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

Get Best Price

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

Get Best Price

86--17719566736

Contact Now

Product Description

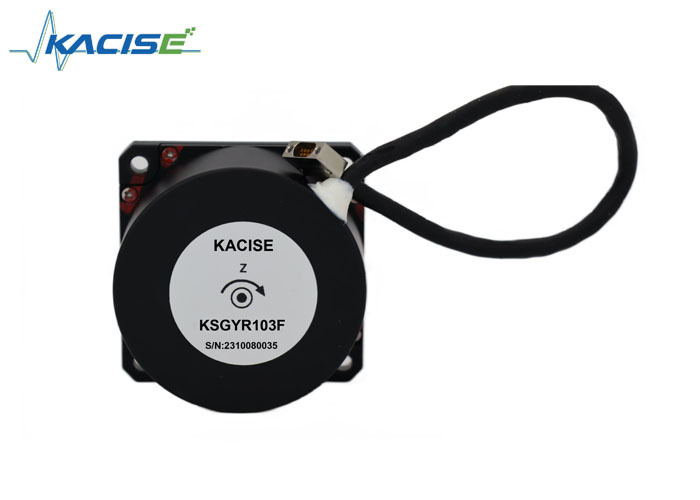

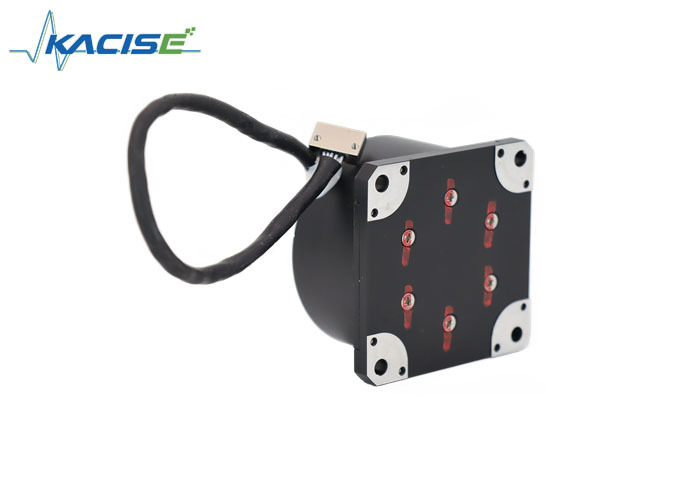

KSGYR103F Fibre Optic Gyroscope

Key Specifications

Attribute	Value
Supply voltage	+5(V)
Dimensions	60×60×32 mm
Start time	≤3 s
Bias stability (10s smooth -45°C~+70°C)	≤0.5 °/h
Power dissipation (full temperature)	<4 W
Operate temperature	-45°C ～ +70°C

Product Overview

The KSGYR103F is an inertial angle rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along the sensitive axis. It utilizes a digital closed-loop detection circuit to extract optical path differences caused by external physical angular speed, enabling real-time angular velocity signal detection.

Key Features

Accurately measures angular speed of moving objects
All solid-state design with no rotating or friction parts
Extended operational lifespan
Large dynamic range
Instant start capability
Compact and lightweight structure

Applications

Gimbal camera stabilization
Flight control platforms
Inertial navigation systems
Inertial monitoring systems
Optical and photography platform stabilization
Inertial measurement units

Technical Specifications

Power supply parameters
Supply voltage	+5(V)
Product performance
Dimensions	60×60×32 mm
Start time	≤3 s
Bias (10s smooth, fix temperature)	≤0.1 °/h
Bias stability (10s smooth -45°C~+70°C)	≤0.5 °/h
Bias repeatability	≤0.1 °/h
Random walk	≤0.01 °/h1/2
Scale factor non-linearity	≤10 ppm
Scale factor repeatability	≤10 ppm
Dynamic range	±500 °/s
Power dissipation (full temperature)	<4 W
Weight	<180g
Environmental specifications
Operate temperature	-45°C ～ +70°C
Storage temperature	-50°C ～ +80°C

Dimensions
