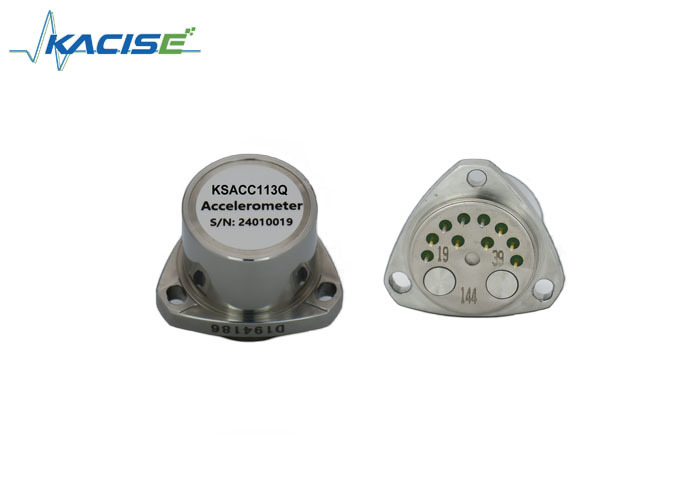

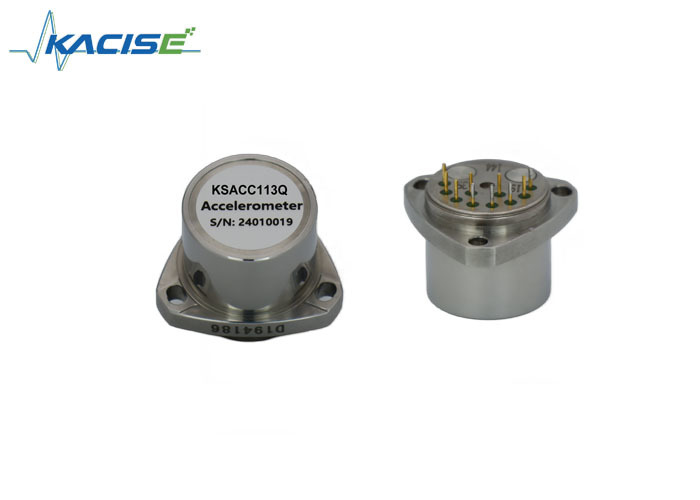

KSACC113Q Quartz Flexible Accelerometer ±80g Range

Key Attributes

Power Voltage	±12~±18V DC
Operating Temperature	-45°C~+80°C
Storage temperature	-55°C～+80°C
Shock	100g
Vibration Peak Sine	20g@20Hz ~ 2000Hz

Product Description

The KSACC113Q Quartz Flexible Accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the output is precisely proportional to the input acceleration.

Our accelerometer features current output with high output impedance, allowing users to select sampling resistance according to their requirements without affecting system stability.

Our quartz flexible accelerometer series includes products ranging from high-precision μg KSACC111Q accelerometers for satellite microgravity measurement to cost-effective, rugged KSACC117Q accelerometers, with applications across aerospace, aviation, navigation, marine, automotive, petroleum, and geotechnical engineering fields.

Key Features

Excellent index repeatability
Analog output
Optional built-in temperature sensor
Wide load resistance range
Triangle precision mounting flanges
Designed for next-generation weapon inertial navigation systems
Two models available

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

Power Supply Parameters
Power Voltage	12~18VDC
Power @ 25°C	90mW
Supply current	6mA
Product Performance
Range	±80g
Size	Ø25.4×30
Bias	<5mg
Bias stability	≤30ug
Bias temperature sensitivity	30ug/°C
Bias repeatability	≤30ug
Scale factor	0.9～1.3mA/g
Scale factor temperature sensitivity	50ppm/°C
Second order nonlinear coefficient	≤40μg/g²
Second order nonlinearity coefficient repeatability	≤15μg/g²
Scale factor repeatability	40ppm
Noise	<5μg
Threshold	<5 μg
Bandwidth	<200 Hz
Weight	≤80g
Environmental Specifications
Operating temperature	-45°C～80°C
Storage temperature	-55°C～80°C
Random vibration	20g(20~2000Hz)
Sine vibration	10g peak,50 to 800Hz
Working shock	50g
Shock	100g

Dimensions

Unit: mm
