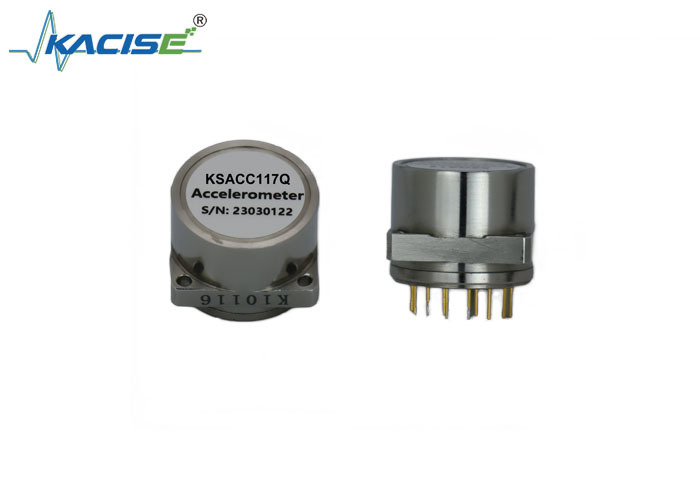

Name: KSACC117Q Quartz Flexible Accelerometer ±10g Range DC Power
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSACC117Q
Price: 431.00 USD
Availability: InStock

Home > products > Electronic Gyroscope Sensor >

KSACC117Q Quartz Flexible Accelerometer ±10g Range DC Power

quartz flexible accelerometer 10g range

quartz accelerometer fluid level meter

flexible accelerometer with warranty

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSACC117Q

Request A Quote

Product Details

Power Voltage:

±12~±18V DC

Input Range:

±10g

Bias:

≤10mg

Temperature Sensitivity:

≤100μg/°C

Three-hour Stability(1σ):

≤100μg

Scale Factor:

2.3 ~ 3.5mA/g

Highlight:

quartz flexible accelerometer 10g range

quartz accelerometer fluid level meter

flexible accelerometer with warranty

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

Get Best Price

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

Get Best Price

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

Get Best Price

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

Get Best Price

86--17719566736

Contact Now

Product Description

KSACC117Q Quartz Flexible Accelerometer ±10g Range

Product Attributes

Attribute	Value
Power Voltage	±12~±18V DC
Input Range	±10g
Bias	≤10mg
Temperature Sensitivity	≤100μg/°C
Three-hour Stability(1σ)	≤100μg
Scale Factor	2.3 ~ 3.5mA/g

Product Description

KSACC117Q Quartz Flexible Accelerometer

Quartz flexible accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the output is precisely proportional to the input acceleration. Our accelerometer features current output with high output impedance, allowing users to select sampling resistance according to requirements without affecting system stability.

Our quartz flexible accelerometer product line ranges from high-precision μg KSACC111Q accelerometers for satellite microgravity measurement to cost-effective, rugged KSACC117Q accelerometers. These instruments are widely used in aerospace, aviation, navigation, marine, automotive, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output
Wide temperature range
Wide load resistance range
Compact size and light weight
Shock and vibration resistant
High temperature resistant

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

Power Supply Parameters
Power Voltage	12~18VDC
Power at 25°C	90mW
Supply current	6mA
Product Performance
Range	±10g
Size	Ø25×25
Bias	<10mg
Bias stability	≤10ug
Bias temperature sensitivity	100ug/°C
Bias repeatability	≤60ug
Scale factor	2.3～3.5mA/g
Scale factor temperature sensitivity	100ppm/°C
Second order nonlinear coefficient	≤60μg/g²
Second order nonlinearity coefficient repeatability	≤30μg/g²
Scale factor repeatability	100ppm
Noise	<5μg
Threshold	<5 μg
Bandwidth	<200 Hz
Weight	≤60g
Environmental Specifications
Operating temperature	-45°C～100°C
Storage temperature	-55°C～120°C
Random vibration	15g(20~2000Hz)
Sine vibration	15g peak,50 to 800Hz
Working shock	200g
Shock	500g

Dimensions

Unit: mm
