Name: KSACC101Q Quartz Accelerometer ±70g 400Hz Digital Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSACC101Q
Price: 431.00 USD
Availability: InStock

Home > products > Electronic Gyroscope Sensor >

KSACC101Q Quartz Accelerometer ±70g 400Hz Digital Output

quartz accelerometer digital output

quartz accelerometer ±70g range

electronic gyroscope sensor 400Hz

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSACC101Q

Request A Quote

Product Details

Input Voltage:

15±1 VDC

Power Consumption:

≤75mW @15VDC

Range:

±70g

Scale Factor:

56Hz/g±5Hz/g

Scale Factor Repeatability(1σ,one Month):

≤50ppm

Bandwidth:

≥400Hz

Highlight:

quartz accelerometer digital output

quartz accelerometer ±70g range

electronic gyroscope sensor 400Hz

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

Get Best Price

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

Get Best Price

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

Get Best Price

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

Get Best Price

86--17719566736

Contact Now

Product Description

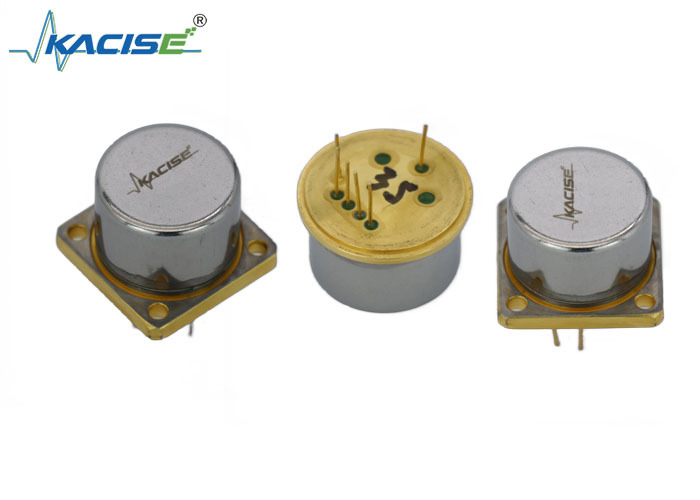

KSACC101Q Quartz Accelerometer ±70g 400Hz Digital Output

Product Attributes

Attribute	Value
Input Voltage	15±1 VDC
Power consumption	≤75mW @15VDC
Range	±70g
Scale factor	56Hz/g±5Hz/g
Scale factor repeatability(1σ,one month)	≤50ppm
Bandwidth	≥400Hz

Product Description

The KSACC101Q quartz vibration beam accelerometer is a solid-state digital output acceleration sensor featuring large range, compact size, high precision, low power consumption, fast start-up time, shock vibration resistance, and exceptional reliability. These characteristics make it superior to traditional analog output accelerometers.

Key Features

Digital output
Wide Bandwidth
Low Power Consumption
High Reliability
Wide Operating Temperature Range
Compact Size
Fast Start-Up

Applications

Spaceflight
Aviation
Navigation
Military weapon systems
Vehicle systems

Technical Specifications

Power Supply Parameters
Power Voltage	14~16VDC
Power @25°C	75mW @15VDC
Supply current	5mA
Product Performance
Range	±70g
Size	22mm×22mm×14mm
Bias	0g±2g
Bias stability	≤100ug
Bias temperature sensitivity	100ug/°C
Bias repeatability	≤100ug
Scale factor	56Hz/g±5Hz/g
Scale factor temperature sensitivity	500ppm/°C
Second order nonlinear coefficient	≤80μg/g²
Second order nonlinearity coefficient repeatability	≤50μg/g²
Scale factor repeatability	≤50ppm
Temperature sensor	40KHz±2%(0.3Hz/°C)@25°C
Noise	<10μg
Threshold	≤1×10⁻⁵g
Bandwidth	≥400Hz
Weight	≤23g
Environmental Specifications
Operating temperature	-45°C～+85°C
Storage temperature	-55°C～100°C
Random vibration	5grms (20Hz～2000Hz)
Sine vibration	10g peak,50 to 800Hz
Working shock	100g
Shock	200g
