Product Description

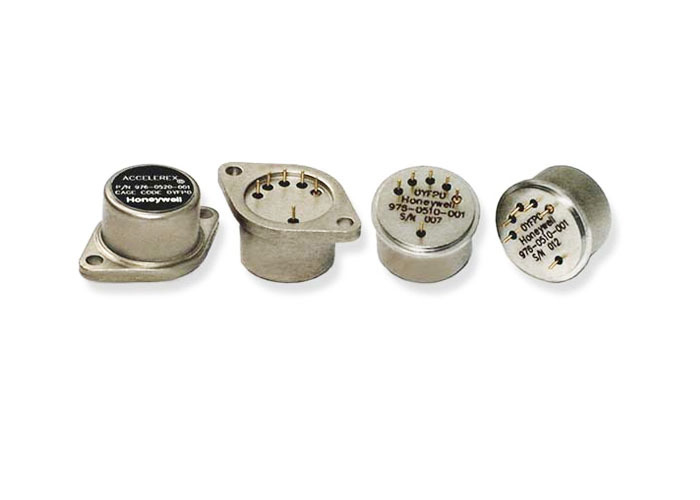

Accelerex RBA500 Accelerometer ±70g Frequency Output Sensor

Product Specifications

Attribute	Value
Input range	±70 g
One year repeatability	<4 mg
Scale Factor	80 Hz/g
Input voltage	+14 to +16 VDC
Current	<5 mA

Product Description

Accelerex® RBA500 Accelerometer is a digitally-compatible frequency output sensor designed to supplement GPS navigation systems. This compact, high-performance accelerometer is ideal for applications requiring frequency output, high-g measurement, small size, low power consumption, and light weight.

The RBA500 measures acceleration through the frequency difference between two vibrating quartz beams. Its output is thermally compensated using an internal temperature sensor and Honeywell-supplied coefficients, providing direct delta Velocity measurement when integrated over time.

Key Features

Frequency output for direct interface to digital electronics
Cost-effective solution
High-g measurement capability
Compact, space-saving design
Integral 2-fastener mounting flange
Low power consumption
Hermetically sealed stainless steel case
Internal temperature sensor for thermal compensation
Robust design with superior reliability

Configuration Drawings

Performance Characteristics

Category	Parameter	Value
Performance	Input range	±70 g
	Bias - One year repeatability	<4 mg
	Scale Factor	80 Hz/g
	Scale Factor - One year repeatability	<450 ppm
	Axis misalignment	<12 mrad
	Axis misalignment - One year repeatability	<400 μrad
	Resolution/Threshold	<1 μg
	Bandwidth	>400 Hz
Environmental	Operating temperature range	-55 to +105°C
	Shock	250 g
	Vibration	20g, peak, DC - 2000 Hz
Electrical	Input voltage	+14 to +16 VDC
	Current	<5 mA
	Power	<75 mW @ +15 VDC
	Physical	Weight	12 grams
Size		0.80 in. dia. x 0.42 in. high
Case material		Stainless Steel

Additional product specifications, outline drawings, block diagrams, and test data are available upon request.
