Product Description

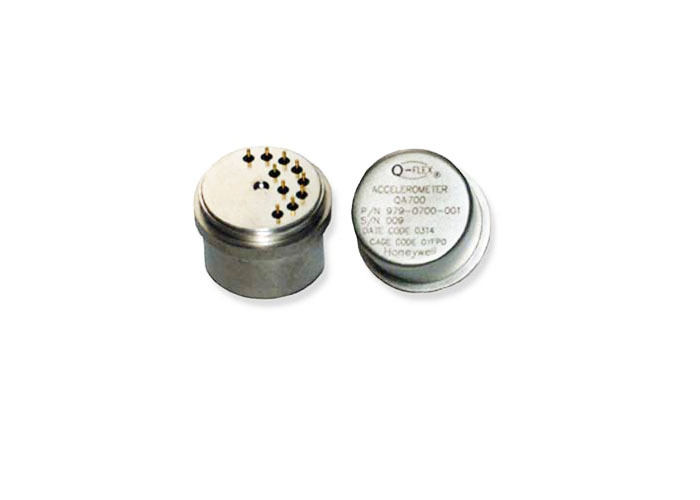

Honeywell QA700 Q-Flex Accelerometer with Temperature Compensation

Economical Temperature-Compensated Sensor

The Q-Flex QA-700 Accelerometer from Honeywell delivers Q-Flex technology in an economical temperature-compensated package, designed for moderate performance applications including:

Flight and flight simulator control systems
Radar platform leveling
High-speed train ride control
Seismic sensing

Featuring Honeywell's patented Q-Flex etched-quartz-flexure seismic system, the QA700 utilizes an amorphous quartz proof-mass structure for exceptional bias, scale factor, and axis alignment stability. The integral electronics produces an acceleration-proportional output current for both static and dynamic acceleration measurements.

Key Features

Tactical navigation grade performance
High value solution
Environmentally rugged design
Analog output
Compact form factor
Field-adjustable range
Dual built-in test capability
Optional thermal compensation

Performance Characteristics

Parameter	Specification
Input Range [g]	±30
Bias [mg]	<8
One-year Composite Repeatability [μg]	<1200
Temperature Sensitivity [μg/μC]	<70
Scale Factor [mA/g]	1.23 to 1.43
One-year Composite Repeatability [ppm]	<1200
Temperature Sensitivity [ppm/μC]	<200
Axis Misalignment [μrad]	<2000
Vibration Rectification [μg/g²rms]	<50 (50 - 200 Hz) <100 (200 - 750 Hz) <150 (750 - 2000 Hz)
Intrinsic Noise [μg-rms]	<7 (0 - 10 Hz) <70 (10 - 500 Hz) <1500 (500 - 10,000 Hz)

Environmental Specifications

Parameter	Specification
Operating Temperature Range [μC]	-55 to +96
Shock [g]	250
Vibration Peak Sine [g]	25 @ 20 - 2000 Hz
Resolution/Threshold [μg]	<1
Bandwidth [Hz]	>300

Electrical Specifications

Parameter	Specification
Quiescent Current per Supply [mA]	<16
Quiescent Power [mW] @ ±15 VDC	<480
Electrical Interface	Voltage Self Test Current Self Test Power/Signal Ground +10 VDC Output ±13 to ±18 VDC

Physical Specifications

Parameter	Specification
Weight [grams]	46 Nominal, 50 Max.
Diameter below mounting surface [inches]	0.17 ±0.01
Height - bottom to mounting surface [inches]	600 Max
Case Material	300 Series Stainless Steel

Additional product specifications, outline drawings, block diagrams, and test data are available on request.
