Name: KSINS014C Dual-Axis Fiber Optic Inertial Navigation System 1nmile/12h Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSINS014C
Price: 478.00 USD
Availability: InStock

Home > products > Accelerometer Sensor >

KSINS014C Dual-Axis Fiber Optic Inertial Navigation System 1nmile/12h Accuracy

Dual-Axis Fiber Optic INS

Fiber Optic Inertial Navigation System with 1nmile accuracy

High-accuracy INS with 12h performance

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSINS014C

Request A Quote

Product Details

Position Accuracy:

1nmile/12h

Pitch & Roll Accuracy:

<0.0013°

Heading Accuracy:

< 0.008°

Speed Accuracy:

<0.1m/s

Initialization Time:

<13min

Highlight:

Dual-Axis Fiber Optic INS

Fiber Optic Inertial Navigation System with 1nmile accuracy

High-accuracy INS with 12h performance

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,MoneyGram,Western Union

Supply Ability

1000 Piece/Pieces per Week negotiable

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor

Get Best Price

KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy

Get Best Price

Quartz acceleration sensors for microgravity measurement devices with Threshold ≤1 (μg) and Resolution ≤1 (μg)

Get Best Price

Quartz accelerometers for vibration detection with Bias ≤5mg and Bias One-month Composite Repeatability ≤30(μg)

Get Best Price

86--17719566736

Contact Now

Product Description

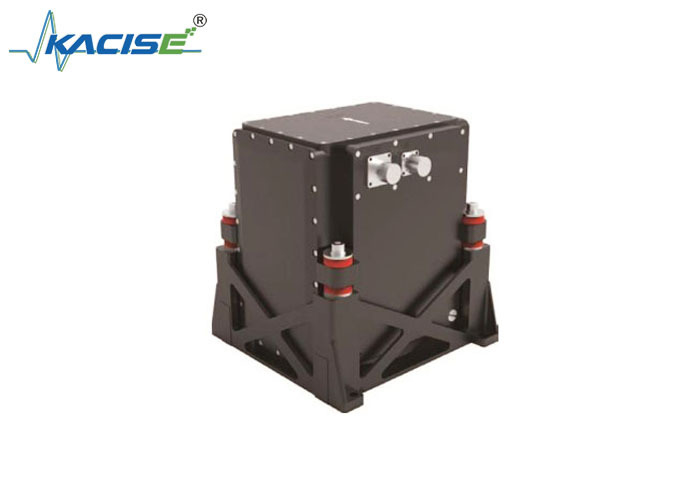

KSINS014C Dual-Axis Fiber Optic Rotating Inertial Navigation System

Key Specifications

Attribute	Value
Position Accuracy	1nmile/12h
Pitch & Roll Accuracy	<0.0013°
Heading Accuracy	< 0.008°
Speed Accuracy	<0.1m/s
Initialization Time	<13min

Product Overview

The KSINS014C is a dual-axis rotating inertial navigation system utilizing high-precision fiber optic gyroscopes and quartz flexible accelerometers. Its rotational modulation technology effectively suppresses navigation error divergence while providing real-time output of position, speed, attitude, angular rate, and linear acceleration data.

Key Features

Long-endurance pure inertial high-precision navigation capability
Multiple switchable navigation modes (inertial/satellite/atmospheric combinations)
Excellent vibration, shock, and thermal environmental adaptability
In-situ self-calibration maintenance function
Comprehensive Built-In Test (BIT) design

Applications

Ideal for all types of large and medium-sized long-endurance UAV systems.

Technical Specifications

Performance Indicators
Position Accuracy	1nmile/12h
Pitch & Roll Accuracy	<0.0013°
Heading Accuracy	<0.008°
Speed Accuracy	<0.1m/s
Initialization Time	<13min
Mechanical/Electrical Interface
Steady state power consumption (W)	<36
Power supply (V)	18~32
Output	RS-422, RS-232, CAN
Size (mm)	180×228×247
Weight (Kg)	<12.5
