Name: KSIMU004M Inertial Measurement Unit ±2000°/s Gyroscope AHRS
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSIMU004M
Price: 478.00 USD
Availability: InStock

Home > products > Accelerometer Sensor >

KSIMU004M Inertial Measurement Unit ±2000°/s Gyroscope AHRS

±2000°/s gyroscope IMU

AHRS inertial measurement unit

high-performance accelerometer sensor

Place of Origin:

CHINA

Brand Name:

kacise

Certification:

Model Number:

KSIMU004M

Request A Quote

Product Details

Full Scale:

±2000°/s

Scale Factor Variation:

0.05%

Non-linearity:

0.1%

In-run Bias Stability:

10°/h

Supply Voltage:

3.3V DC

Highlight:

±2000°/s gyroscope IMU

AHRS inertial measurement unit

high-performance accelerometer sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor

Get Best Price

KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy

Get Best Price

Quartz acceleration sensors for microgravity measurement devices with Threshold ≤1 (μg) and Resolution ≤1 (μg)

Get Best Price

Quartz accelerometers for vibration detection with Bias ≤5mg and Bias One-month Composite Repeatability ≤30(μg)

Get Best Price

86--17719566736

Contact Now

Product Description

KSIMU004M Inertial Measurement Unit

Product Overview

The KSIMU004M is a self-contained Attitude Heading and Reference System (AHRS) module. This compact, fully functional unit requires minimal additional hardware components for integration. Featuring an industry-standard communication protocol with customizable data messages, it processes signals onboard while consuming minimal host resources, making it ideal for simple MCU operating environments.

Key Specifications

Attribute	Value
Full scale	±2000°/s
Scale Factor variation	0.05%
Non-linearity	0.1%
In-run bias stability	10°/h
Supply voltage	3.3V DC

Key Features

Full performance AHRS on compact 12.1 x 12.1 mm module
Flip/pitch accuracy (dynamic): 1.0°
Heading accuracy: 2.0°
Minimal processor requirements
Unified interface for complete product lifecycle
Low power consumption (45 mW at 3.0V)
PLCC28 PCB compatible (12.1 x 12.1 x 2.6 mm)

Applications

Miniature aerial vehicles and drones (delivery, video, agricultural)
Satcom on the Move (SotM)
Construction machinery and ship monitoring
Autonomous agriculture and warehouse automation
Robotic arms and handheld devices
Pedestrian navigation and VR/AR applications
Navigation aiding systems

Technical Specifications

Power Supply Parameters
Supply voltage	3.3V DC
Product Performance
ATTITUDE ACCURACY
Yaw accuracy (dynamic)	2° (rms)
Roll/pitch accuracy (dynamic)	1° (rms)
Gyroscope
Full scale	±2000°/s
In-run bias stability	10°/h
Non-linearity	0.1%
Scale Factor variation	0.05%
g-Sensitivity	0.1°/s/g
Noise density	0.01º/s/√Hz
Bandwidth (-3dB)	180Hz
Accelerometer
Full scale	±16g
In-run bias stability	0.1mg
Non-linearity	0.5%
Scale Factor variation	0.05%
Noise density	200 μg/√Hz
Bandwidth (-3dB)	180HZ
Magnetometer
Full scale	6gauss
Non-linearity	0.1%
Resolution	120ugauss
Noise (rms)	50ugauss
Interfaces
Serial port communication	TTL
Output frequency	100hz@230400 baud rate
Environment
Operating temperature	-40°C~85°C

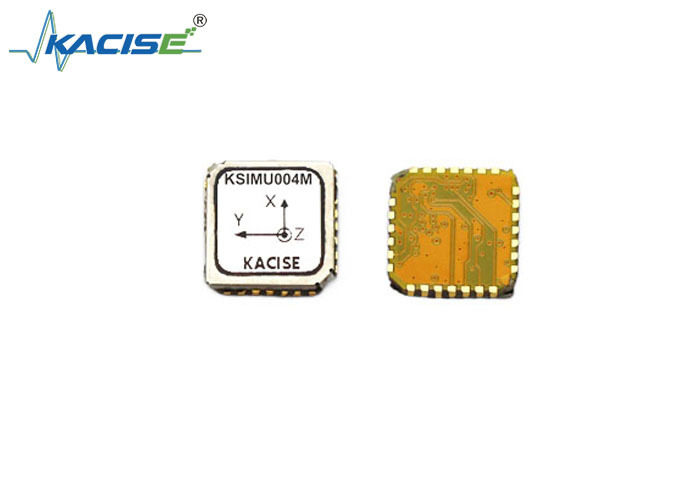

Product Image

Dimensions
