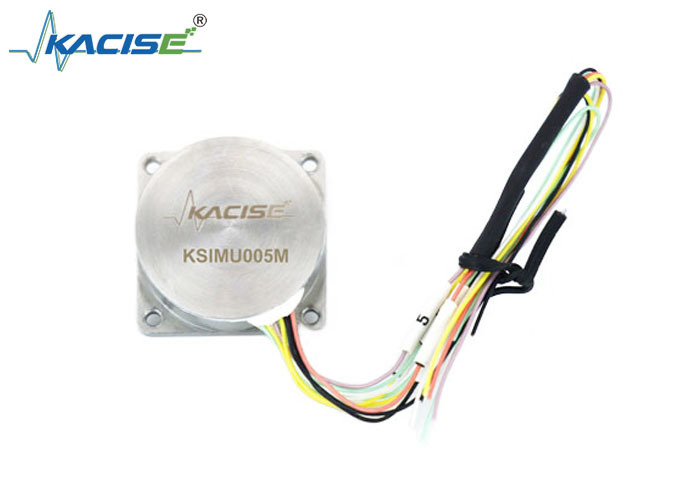

Name: KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSIMU005M
Price: 478.00 USD
Availability: InStock

Home > products > Accelerometer Sensor >

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor

three axis quartz accelerometer sensor

MEMS accelerometer sensor with warranty

quartz IMU accelerometer sensor

Place of Origin:

CHINA

Brand Name:

kacise

Certification:

Model Number:

KSIMU005M

Request A Quote

Product Details

Input Voltage:

5±0.2 V DC

Input Current:

≤100mA

Range:

±400°/s

Bias:

0±0.05°/s

Bias Stability:

≤30°/h

Highlight:

three axis quartz accelerometer sensor

MEMS accelerometer sensor with warranty

quartz IMU accelerometer sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor

Get Best Price

KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy

Get Best Price

High-performance Vibration Monitoring with Accelerometer Detector Ф25.4mm X30mm

Get Best Price

Quartz accelerometers for satellite control units with Bias ≤5mg and Range =±20g

Get Best Price

86--17719566736

Contact Now

Product Description

KSIMU005M Three Axis Quartz IMU

Product Overview

The KSIMU005M is an advanced inertial measurement module utilizing MEMS technology to accurately measure angular velocity and acceleration across three axes.

MEMS (Micro-Electro-Mechanical Systems) integrates micro-sensors, actuators, mechanical structures, power systems, and signal processing into compact, intelligent systems with micron-scale components. Common applications include accelerometers, gyroscopes, pressure sensors, and environmental sensors.

Key Features

Compact dimensions: 27mm × 27mm × 10mm
Simple integration via RS422 digital interface
Dual redundancy design with integrated gyro and accelerometer sets
Precision bias < 0.05°

Applications

Robotics systems
Flight testing equipment
Guidance and control systems
Short-term navigation solutions
Aerospace applications

Technical Specifications

Power Supply Parameters
Input Voltage	5±0.2 V DC
Input Current	≤100mA

Gyro Performance
Range	±400°/s
Bias	0±0.05°/s
Bias stability	≤30°/h
Scale factor	70±3LSB/°/s
Scale factor nonlinearity	≤200ppm
Vibration error	≤0.03°/s
Bandwidth	≥100Hz

Accelerometer Performance
Range	±10g
Bias	0±0.02g
Bias stability	≤0.002g
Scale factor	1000±30LSB/g
Bandwidth	≥400Hz

Interface & Environment
Interface	RS422 (1-bit start + 8-bit data + 1-bit even parity check + 1-bit stop)
Baud rate	460800bps
Data update speed	≤2.5ms
Operating temperature	-40℃ to +65℃
Random vibration	6.06 g
