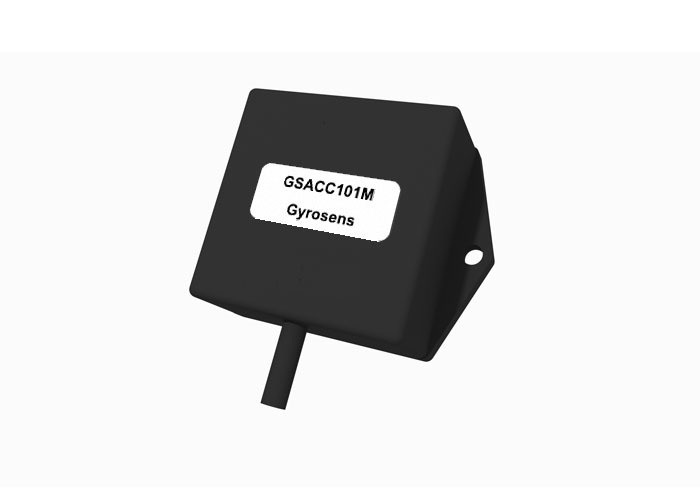

Name: GSACC101M MEMS Accelerometer with ±1 g Range ≥50 Hz Bandwidth and 1000±30 mV/g Sensitivity for Aircraft Stability Control
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC101M
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSACC101M MEMS Accelerometer with ±1 g Range ≥50 Hz Bandwidth and 1000±30 mV/g Sensitivity for Aircraft Stability Control

±1 g range MEMS Accelerometer

≥50 Hz bandwidth Acceleration Sensor

1000±30 mV/g sensitivity GSACC101M Accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC101M

Request A Quote

Product Details

Input Voltage:

5±0.25 VDC

Input Current:

≤2 MA Output Mode 0.5~4.5V

Output Mode:

0.5~4.5V

Range:

±1 G

Bandwidth:

≥50 Hz

Highlight:

±1 g range MEMS Accelerometer

≥50 Hz bandwidth Acceleration Sensor

1000±30 mV/g sensitivity GSACC101M Accelerometer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

Contact Now

Product Description

GSACC101M MEMS Accelerometers

Product Features

Analog voltage output
Wide measuring range
Impact resistance with excellent vibration performance
Compact size and lightweight design
High linearity output

Applications

Aircraft stability control systems
Seismic detection equipment

Technical Specifications

Electrical Characteristics
Input voltage	5±0.25 VDC
Input current	≤2 mA
Output Mode	0.5~4.5V
Performance Index
Axial direction	X
Range	±1 g
Bandwidth	≥50 Hz
Sensitivity	1000±30 mV / g
Resolution (°/s)	≤ 0.001 g
Nonlinear (%FS)	≤ 0.5% Fs
Bias	2.5±0.1 V
Start-up time (ms)	≤1 s
Physical Characteristics
Weight	40g
Dimensions	19.518.88.4 mm

Dimensions
