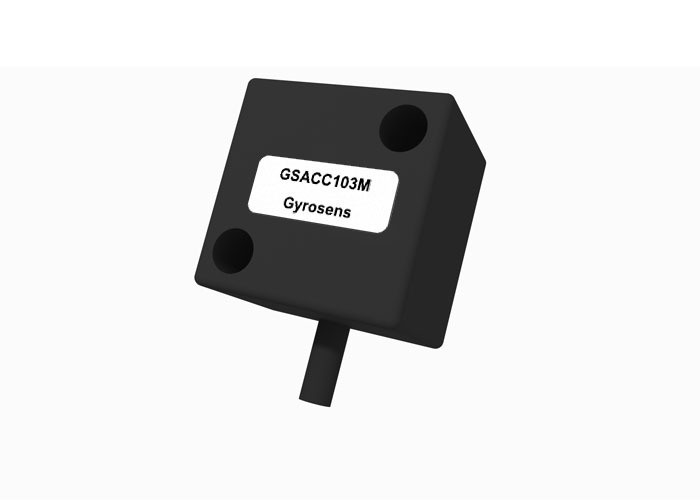

Name: GSACC103M MEMS Accelerometer with ±2000 g Range ≤ 5000 Hz Bandwidth and 0.15mV/g Sensitivity
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC103M
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSACC103M MEMS Accelerometer with ±2000 g Range ≤ 5000 Hz Bandwidth and 0.15mV/g Sensitivity

±2000 g Range MEMS Accelerometer

≤ 5000 Hz Bandwidth Accelerometer Sensor

0.15mV/g Sensitivity Piezoelectric Accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC103M

Request A Quote

Product Details

Range:

±2000 G

Bandwidth:

≤ 5000 Hz

Sensitivity:

0.15mV / G

Resolution (°/s):

≤ 0.002 G

Nonlinear (%FS):

≤ 1% Fs

Highlight:

±2000 g Range MEMS Accelerometer

≤ 5000 Hz Bandwidth Accelerometer Sensor

0.15mV/g Sensitivity Piezoelectric Accelerometer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

86--17719566736

Contact Now

Product Description

GSACC103M MEMS Accelerometers

Key Features

Analog voltage output
High g value and bandwidth
Compact size and lightweight design
Piezoelectric accelerometer technology
Excellent impact resistance and vibration performance

Applications

Measurement of overload value g
Linear acceleration measurement

Technical Specifications

Electrical Characteristics
Input voltage	10±0.1 VDC
Input current	≤10mA
Output Mode	±1 V
Performance Index
Axial direction	Z
Range	±2000 g
Bandwidth	≤ 5000 Hz
Sensitivity	0.15mV / g
Resolution (°/s)	≤ 0.002 g
Nonlinear (%FS)	≤ 1% Fs
Bias	±0.2 V
Bias temperature drift	≤ 0.09mg/ºC
Cross axis sensitivity	≤3%Fs
Start-up time (ms)	≤1 s
Environmental Characteristics
Temperature (°C)	-40℃~+70℃
Storage Temperature	-40℃~+125℃
Resistant to shock	10000g
Physical Characteristics
Weight (g)	45g
Dimensions	12.5×12.5×9.5 mm

Dimensions

Note: Product specifications may be updated periodically. Please contact the supplier for the latest product manual.
