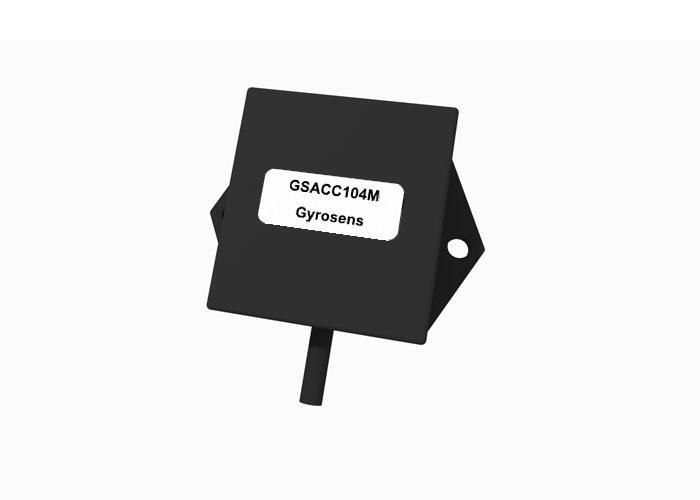

Name: GSACC104M MEMS Accelerometer with ±100 g Range 12±0.1 mA Bias and ≤ 1% Fs Nonlinearity for Linear Acceleration Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC104M
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSACC104M MEMS Accelerometer with ±100 g Range 12±0.1 mA Bias and ≤ 1% Fs Nonlinearity for Linear Acceleration Measurement

±100 g Range MEMS Accelerometer

12±0.1 mA Bias Acceleration Sensor

≤ 1% Fs Nonlinearity GSACC104M

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC104M

Request A Quote

Product Details

Range:

±100 G

Bias:

12±0.1 MA

Nonlinear (%FS):

≤ 1% Fs

Resolution (°/s):

0.01 G

Sensitivity:

0.08±0.02 MA / G

Bandwidth:

≤ 400 Hz

Highlight:

±100 g Range MEMS Accelerometer

12±0.1 mA Bias Acceleration Sensor

≤ 1% Fs Nonlinearity GSACC104M

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

Contact Now

Product Description

GSACC104M MEMS Accelerometers

Key Features

High g value and frequency response
Compact size and lightweight design
4~20mA output signal
Excellent impact resistance and vibration performance

Applications

Measurement of overload g values
Linear acceleration measurement

Technical Specifications

Electrical Characteristics
Input voltage	10～30 VDC
Input current	≤20mA
Output Mode	4～20 mA
Performance Specifications
Axial direction	Z
Range	±100 g
Bandwidth	≤ 400 Hz
Sensitivity	0.08±0.02 mA / g
Resolution (°/s)	0.01 g
Nonlinear (%FS)	≤ 1% Fs
Bias	12±0.1 mA
Start-up time (ms)	≤1 s
Environmental Characteristics
Temperature (°C)	-40℃~+70℃
Storage Temperature	-40℃~+125℃
Resistant to shock	4000g
Physical Characteristics
Weight (g)	45g
Dimensions	352815 mm

Dimensions

Note: Product specifications may be updated periodically. Please contact the supplier for the latest product manual.
