Name: Precision Accelerometer with ±20g Range ≤10ug Bias Repeatability and 10ug/°C Temperature Sensitivity for Inertial Navigation
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC112Q
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

Precision Accelerometer with ±20g Range ≤10ug Bias Repeatability and 10ug/°C Temperature Sensitivity for Inertial Navigation

±20g range Precision Accelerometer

≤10ug Bias repeatability Precision Accelerometer

10ug/°C Bias temperature sensitivity Precision Accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC112Q

Request A Quote

Product Details

Range:

±20g

Bias Repeatability:

≤10ug

Bias Temperature Sensitivity:

10ug/°C

Bias Stability:

≤10ug

Bias:

<5mg

Size:

Ø25.4×30

Highlight:

±20g range Precision Accelerometer

≤10ug Bias repeatability Precision Accelerometer

10ug/°C Bias temperature sensitivity Precision Accelerometer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

86--17719566736

Contact Now

Product Description

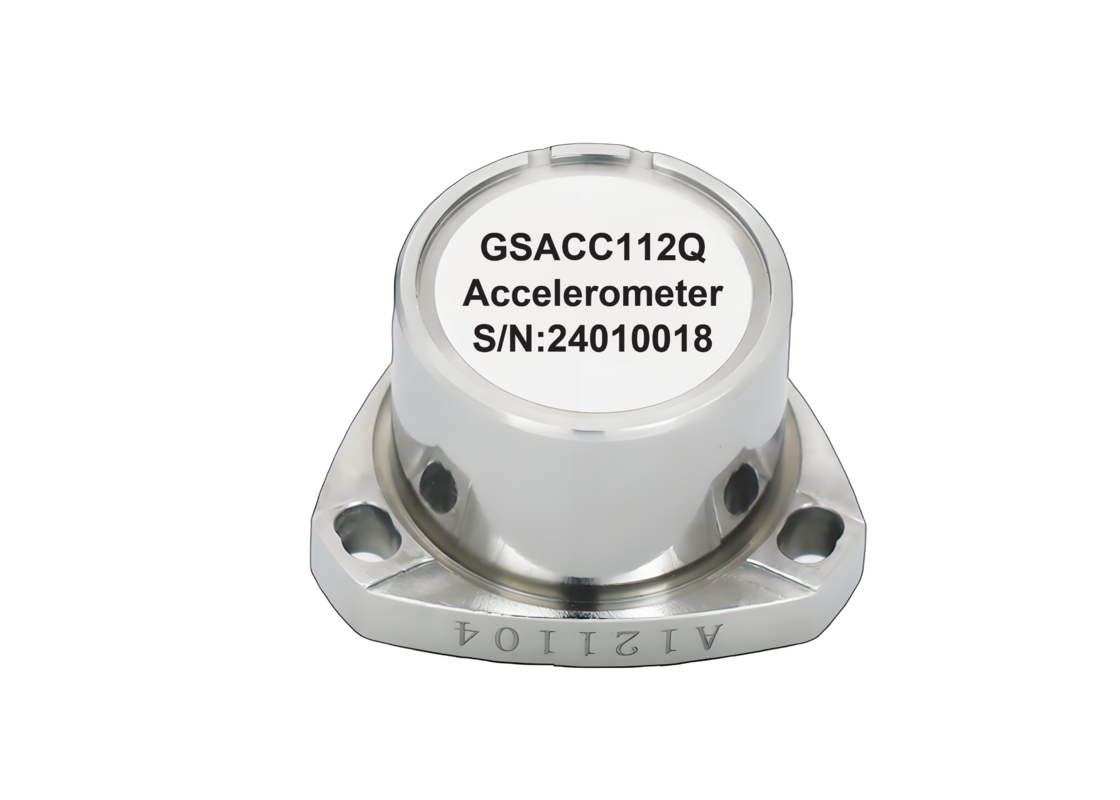

GSACC112Q Quartz Flexible Accelerometer

Product Introduction

The quartz flexible accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuitry based on the principle of inertia. When subjected to acceleration, the output is precisely proportional to the input acceleration. This accelerometer features current output with high output impedance, allowing users to select sampling resistance according to their requirements without affecting system stability.

Our quartz flexible accelerometer product line ranges from high-precision μg GSACC111Q models for satellite microgravity measurement to cost-effective, rugged GSACC117Q models. With dozens of variants available, these accelerometers are widely used in aerospace, aviation, navigation, marine, automotive, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output
Built-in digital temperature sensor
Wide load resistance range
Triangle precision mounting flanges
Designed for next-generation weapon inertial navigation systems
Two models available

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

Power Supply Parameters
Power Voltage	12~18VDC
Power @ 25°C	90mW
Supply Current	6mA
Product Performance
Range	±20g
Size	Ø25.4*30
Bias	<5mg
Bias Stability	≤10μg
Bias Temperature Sensitivity	10μg/°C
Bias Repeatability	≤10μg
Scale Factor	1.2～1.6mA/g
Scale Factor Temperature Sensitivity	10ppm/°C
Second Order Nonlinear Coefficient	≤10μg/g²
Second Order Nonlinearity Coefficient Repeatability	≤5μg/g²
Scale Factor Repeatability	10ppm
Noise	<1μg
Threshold	<1μg
Bandwidth	<200Hz
Weight	≤70g
Environmental Specifications
Operating Temperature	-45°C～80°C
Storage Temperature	-55°C～80°C
Random Vibration	15g(20~2000Hz)
Shock	100g

Dimensions (Unit: mm)
