Name: GSACC113Q Quartz Flexible Accelerometer with 0.9～1.3mA/g Scale Factor, 30ug/°C Bias Temperature Sensitivity, and <5mg Bias for Precision Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC113Q
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSACC113Q Quartz Flexible Accelerometer with 0.9～1.3mA/g Scale Factor, 30ug/°C Bias Temperature Sensitivity, and <5mg Bias for Precision Measurement

0.9～1.3mA/g Quartz Flexible Accelerometer

30ug/°C Accelerometer Sensor

<5mg Precision Accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC113Q

Request A Quote

Product Details

Range:

±80g

Scale Factor:

0.9～1.3mA/g

Bias Repeatability:

≤30ug

Bias Temperature Sensitivity:

30ug/°C

Bias Stability:

≤30ug

Bias:

<5mg

Size:

Ø25.4×30

Highlight:

0.9～1.3mA/g Quartz Flexible Accelerometer

30ug/°C Accelerometer Sensor

<5mg Precision Accelerometer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

86--17719566736

Contact Now

Product Description

GSACC113Q Quartz Flexible Accelerometer

Product Introduction

The quartz flexible accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuitry based on the principle of inertia. When the carrier experiences acceleration, the accelerometer's output is precisely proportional to the input acceleration. Our accelerometer features a current output form with high output impedance, allowing users to select sampling resistance according to their requirements without affecting system stability.

Our quartz flexible accelerometer product line ranges from the high-precision μg GSACC111Q accelerometer for satellite microgravity measurement to the cost-effective, rugged GSACC117Q accelerometer. These instruments are widely used in aerospace, aviation, navigation, marine, automotive, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output
Optional built-in temperature sensor
Wide load resistance range
Triangle precision mounting flanges
Designed for next-generation weapon inertial navigation systems
Two models available

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

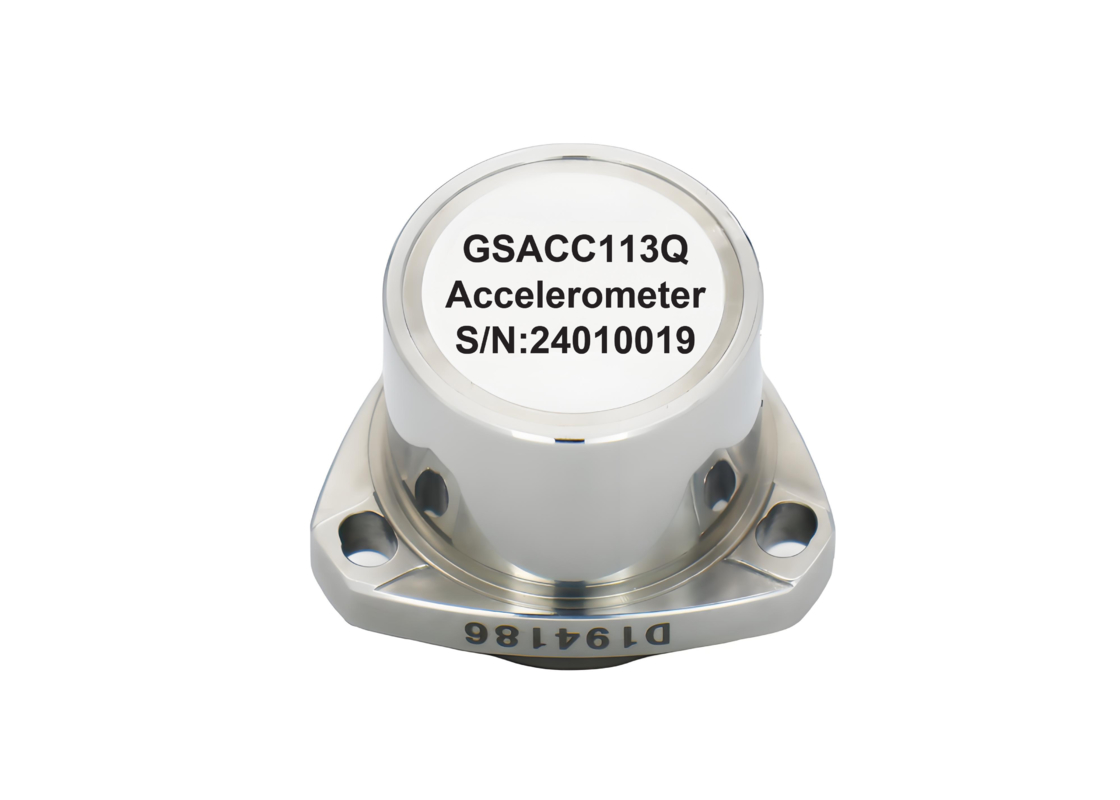

GSACC113Q Quartz Flexible Accelerometer with 0.9～1.3mA/g Scale Factor, 30ug/°C Bias Temperature Sensitivity, and <5mg Bias for Precision Measurement 0

Technical Specifications

Parameter		GSACC113Q
Power supply parameter
Power Voltage		12~18VDC
Power 25°C		90mW
Supply current		6mA
Product performance
Range		±80g
Size		Ø25.4×30
Bias		<5mg
Bias stability		≤30ug
Bias temperature sensitivity		30ug/°C
Bias repeatability		≤30ug
Scale factor		0.9～1.3mA/g
Scale factor temperature sensitivity		50ppm/°C
Second order nonlinear coefficient		≤40μg/g²
Second order nonlinearity coefficient repeatability		≤15μg/g²
Scale factor repeatability		40ppm
Noise		<5μg
Threshold		<5 μg
Bandwidth		<200 Hz
Weight		≤80g
Environment
Operating temperature		-45°C～80°C
Storage temperature		-55°C～80°C
Random vibration		20g(20~2000Hz)
Shock		100g

Dimensions

Unit: mm
