Name: Quartz Flexible Accelerometer with ≤30ug Bias Stability 30ug/°C Temperature Sensitivity and Compact Size Ø25.4×32 for Precision Inertial Navigation
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC114Q
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

Quartz Flexible Accelerometer with ≤30ug Bias Stability 30ug/°C Temperature Sensitivity and Compact Size Ø25.4×32 for Precision Inertial Navigation

≤30ug bias stability quartz flexible accelerometer

30ug/°C temperature sensitivity precision accelerometer

Compact size Ø25.4×32 inertial navigation accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC114Q

Request A Quote

Quartz Flexible Accelerometer with ≤30ug Bias Stability 30ug/°C Temperature Sensitivity and Compact Size Ø25.4×32 for Precision Inertial Navigation

Product Details

Range:

±20g

Scale Factor:

1.2～1.6mA/g

Bias Repeatability:

≤30ug

Bias Temperature Sensitivity:

30ug/°C

Bias Stability:

≤30ug

Bias:

<5mg

Size:

Ø25.4×32

Highlight:

≤30ug bias stability quartz flexible accelerometer

30ug/°C temperature sensitivity precision accelerometer

Compact size Ø25.4×32 inertial navigation accelerometer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

86--17719566736

Contact Now

Product Description

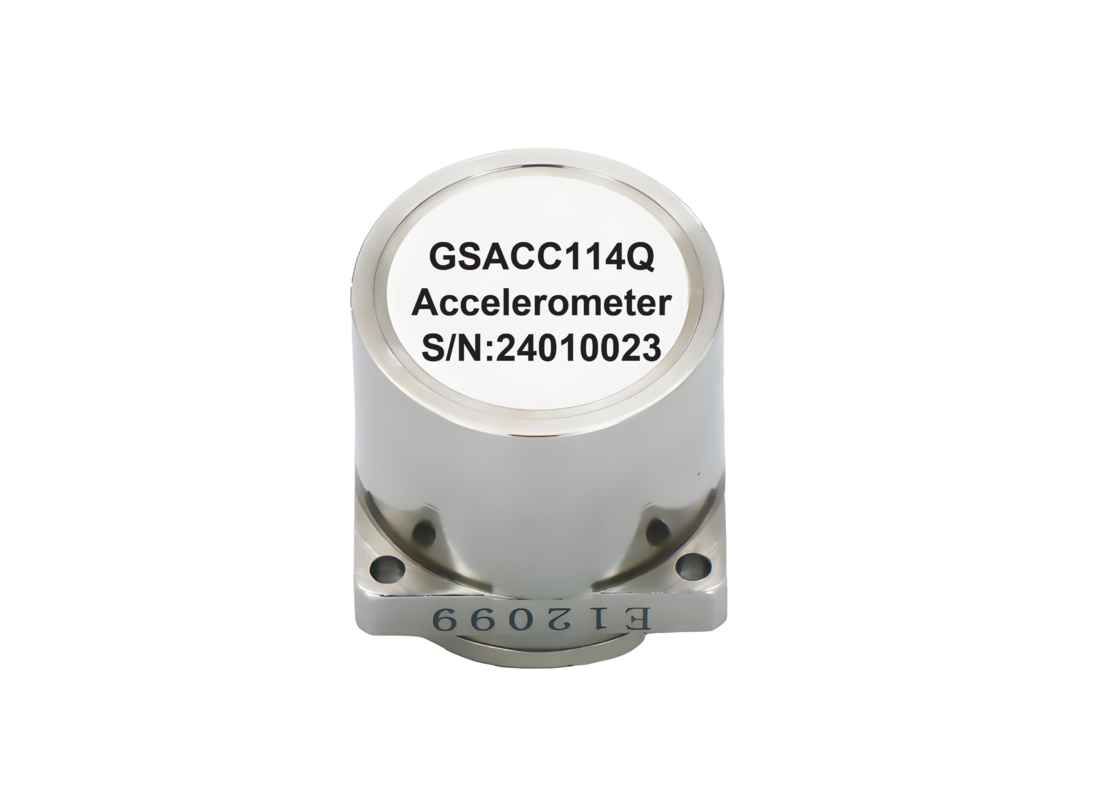

GSACC114Q Quartz Flexible Accelerometer

Product Introduction

The quartz flexible accelerometer is a precision instrument featuring quartz glass flexible support and advanced servo circuitry based on inertia principles. When subjected to acceleration, it produces an output precisely proportional to the input acceleration. With high output impedance current output, users can select sampling resistance according to requirements without affecting system stability.

Our product line ranges from high-precision μg GSACC111Q accelerometers for satellite microgravity measurement to cost-effective, rugged GSACC117Q models. These accelerometers serve aerospace, aviation, navigation, marine, automotive, petroleum, and geotechnical applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output
Built-in digital temperature sensor
Wide load resistance range
Ideal for next-generation weapon inertial navigation systems
Two model options available

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

Power Supply Parameters
Power Voltage	12~18VDC
Power 25°C	90mW
Supply current	6mA
Product Performance
Range	±20g
Size	Ø25.4×32
Bias	<5mg
Bias stability	≤30ug
Bias temperature sensitivity	30ug/°C
Bias repeatability	≤30ug
Scale factor	1.2～1.6mA/g
Scale factor temperature sensitivity	30ppm/°C
Second order nonlinear coefficient	≤15μg/g²
Second order nonlinearity coefficient repeatability	≤15μg/g²
Scale factor repeatability	30ppm
Noise	<5μg
Threshold	<5 μg
Bandwidth	<200 Hz
Weight	≤70g
Environmental Specifications
Operating temperature	-45°C～80°C
Storage temperature	-55°C～80°C
Random vibration	15g(20~2000Hz)
Shock	100g

Dimensions

Unit: mm
