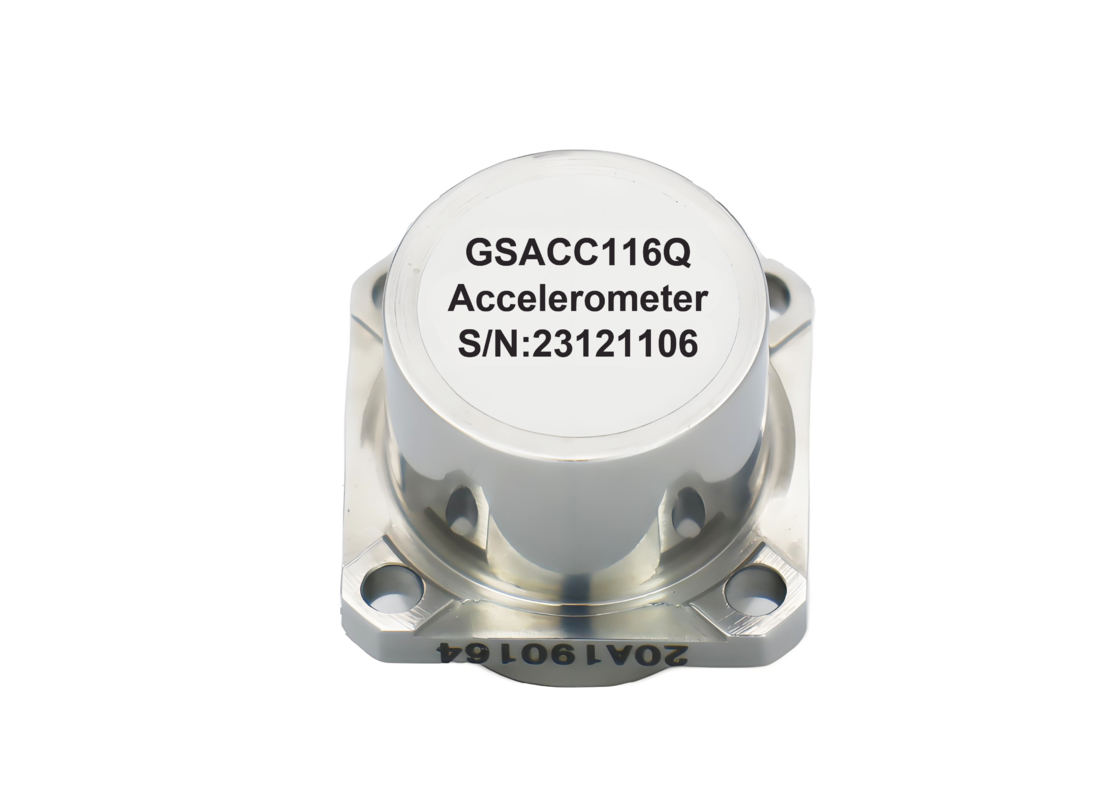

Name: GSACC116Q Quartz Flexible Accelerometer with ±80g Range ≤40ug Bias Repeatability and 40ug/°C Bias Temperature Sensitivity for Precision Inertial Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC116Q
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSACC116Q Quartz Flexible Accelerometer with ±80g Range ≤40ug Bias Repeatability and 40ug/°C Bias Temperature Sensitivity for Precision Inertial Measurement

±80g Range Quartz Flexible Accelerometer

≤40ug Bias Repeatability Precision Accelerometer

40ug/°C Bias Temperature Sensitivity Inertial Measurement Sensor

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC116Q

Request A Quote

Product Details

Range:

±80g

Bias Repeatability:

≤40ug

Bias Temperature Sensitivity:

40ug/°C

Bias Stability:

≤40ug

Bias:

<5mg

Size:

Ø18.2×23.6

Highlight:

±80g Range Quartz Flexible Accelerometer

≤40ug Bias Repeatability Precision Accelerometer

40ug/°C Bias Temperature Sensitivity Inertial Measurement Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

Contact Now

Product Description

GSACC116Q Quartz Flexible Accelerometer

Product Introduction

The quartz flexible accelerometer is a precision instrument featuring quartz glass flexible support and advanced servo circuitry based on inertia principles. When subjected to acceleration, it produces an output precisely proportional to the input acceleration. With high output impedance current output, users can select sampling resistance according to requirements without affecting system stability.

Our product line ranges from high-precision μg GSACC111Q accelerometers for satellite microgravity measurement to cost-effective, rugged GSACC117Q models. These accelerometers serve aerospace, aviation, navigation, marine, automotive, petroleum, and geotechnical applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output
Compact and lightweight design
Wide load resistance range
Precision triangle mounting flanges
Ideal for UAVs and petroleum pipelines
Two available models

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

GSACC116Q Specifications
Power Supply Parameters
Power Voltage	12~18VDC
Power @25°C	90mW
Supply current	6mA
Product Performance
Range	±80g
Size	Ø18.2*23.6
Bias	<5mg
Bias stability	≤40ug
Bias temperature sensitivity	40ug/°C
Bias repeatability	≤40ug
Scale factor	0.6～1.3mA/g
Scale factor temperature sensitivity	60ppm/°C
Second order nonlinear coefficient	≤50μg/g²
Second order nonlinearity coefficient repeatability	≤20μg/g²
Scale factor repeatability	40ppm
Noise	<5μg
Threshold	<5 μg
Bandwidth	<200 Hz
Weight	≤35g
Environmental Specifications
Operating temperature	-45°C～80°C
Storage temperature	-55°C～80°C
Random vibration	15g(20~2000Hz)
Shock	100g

Dimensions

Unit: mm
