Name: GSACC117Q Quartz Flexible Accelerometer Sensor with ±10g Range ≤60ug Bias Stability and 100ug/°C Bias Temperature Sensitivity
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC117Q
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSACC117Q Quartz Flexible Accelerometer Sensor with ±10g Range ≤60ug Bias Stability and 100ug/°C Bias Temperature Sensitivity

±10g Range Quartz Flexible Accelerometer

≤60ug Bias Stability Accelerometer Sensor

100ug/°C Bias Temperature Sensitivity Precision Accelerometer

Place of Origin:

china

Brand Name:

GSACC117Q

Certification:

Model Number:

GSACC117Q

Request A Quote

Product Details

Range:

±10g

Bias Repeatability:

≤60ug

Bias Temperature Sensitivity:

100ug/°C

Bias Stability:

≤60ug

Bias:

<10mg

Size:

Ø25×25

Highlight:

±10g Range Quartz Flexible Accelerometer

≤60ug Bias Stability Accelerometer Sensor

100ug/°C Bias Temperature Sensitivity Precision Accelerometer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

86--17719566736

Contact Now

Product Description

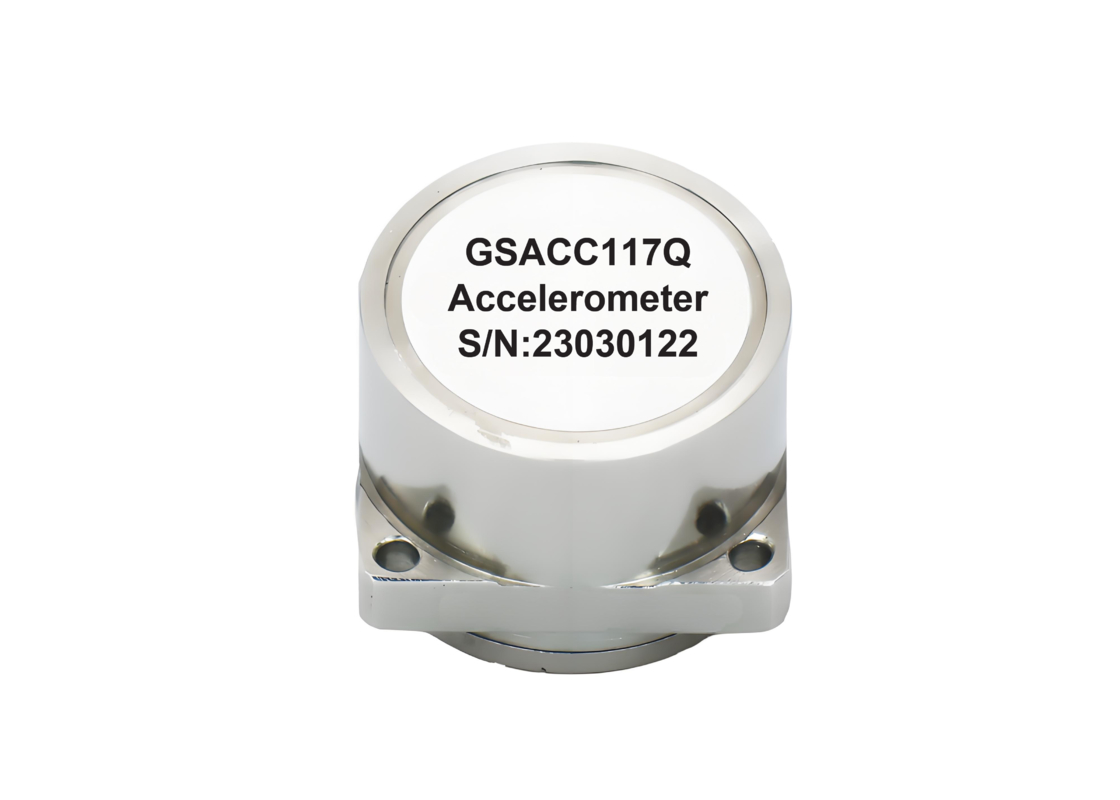

GSACC117Q Quartz Flexible Accelerometer

Product Introduction

The quartz flexible accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the output is precisely proportional to the input acceleration. Our accelerometer features current output with high output impedance, allowing users to select sampling resistance according to requirements without affecting system stability.

Our quartz flexible accelerometer series includes products ranging from high-precision μg GSACC111Q accelerometers for satellite microgravity measurement to cost-effective, rugged GSACC117Q accelerometers. These instruments are widely used in aerospace, aviation, navigation, marine, vehicle, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output
Wide temperature range
Wide load resistance range
Compact size and light weight
Shock and vibration resistant
High temperature resistance

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

Power Supply Parameters
Power Voltage	12~18VDC
Power at 25°C	90mW
Supply current	6mA
Product Performance
Range	±10g
Size	Ø25×25
Bias	<10mg
Bias stability	≤60μg
Bias temperature sensitivity	100μg/°C
Bias repeatability	≤60μg
Scale factor	2.3～3.5mA/g
Scale factor temperature sensitivity	100ppm/°C
Second order nonlinear coefficient	≤60μg/g²
Second order nonlinearity coefficient repeatability	≤30μg/g²
Scale factor repeatability	100ppm
Noise	<5μg
Threshold	<5μg
Bandwidth	<200Hz
Weight	≤60g
Environmental Specifications
Operating temperature	-45°C～100°C
Storage temperature	-55°C～120°C
Random vibration	15g(20~2000Hz)
Shock	500g

Dimensions (Unit: mm)
