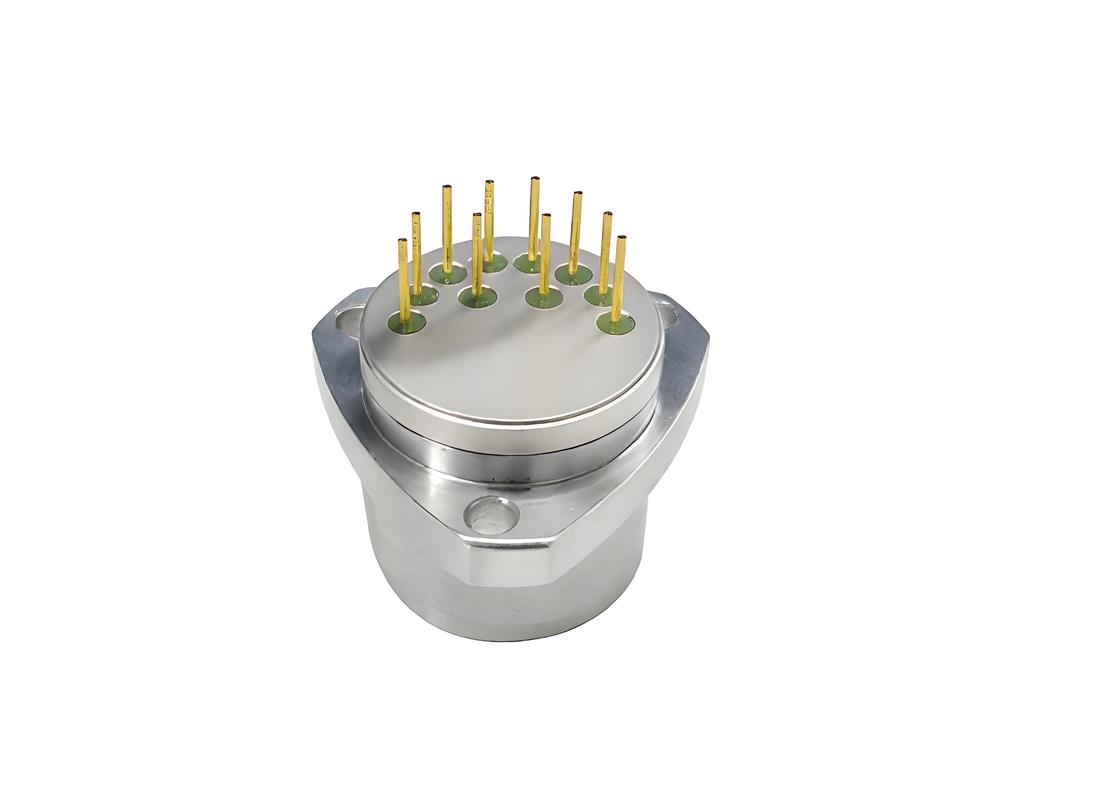

Name: Quartz Flexible Accelerometer Sensor with Wide Load Resistance Range Triangle Precision Mounting Flanges and Bias Stability ≤100μg
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC131Q
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

Quartz Flexible Accelerometer Sensor with Wide Load Resistance Range Triangle Precision Mounting Flanges and Bias Stability ≤100μg

Wide Load Resistance Range Accelerometer Sensor

Triangle Precision Mounting Flanges Quartz Flexible Accelerometer

Bias Stability ≤100μg Precision Accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC131Q

Request A Quote

Quartz Flexible Accelerometer Sensor with Wide Load Resistance Range Triangle Precision Mounting Flanges and Bias Stability ≤100μg

Product Details

Input Range:

±30/40/50/70

Scale Factor:

1000000LSB/g

Bias Repeatability (One Month):

≤100μg

Bias Stability(One Month):

≤100μg

Temperature Sensitivity:

≤100μg/°C

Bias:

≤5mg

Highlight:

Wide Load Resistance Range Accelerometer Sensor

Triangle Precision Mounting Flanges Quartz Flexible Accelerometer

Bias Stability ≤100μg Precision Accelerometer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

86--17719566736

Contact Now

Product Description

GSACC131Q Quartz Flexible Accelerometer

Quartz Flexure Accelerometers are precision instruments composed of quartz crystals and advanced inertia-based servo circuitry. When subjected to acceleration, the accelerometer's output is directly proportional to the input acceleration with high precision. Featuring a TTL output, our accelerometers enable users to read acceleration values directly. Compared to traditional I/F (current-to-frequency) circuits, this design eliminates intermediate conversion stages, resulting in higher accuracy.

Our quartz flexible accelerometers have formed a series of products ranging from high-precision models for satellite microgravity measurement to cost-effective, environment-resistant versions. With over ten types available, they are widely applied in aerospace, aviation, navigation, marine, automotive, petroleum, and geotechnical engineering, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Built-in temperature compensation
Wide load resistance range
Triangle precision mounting flanges
TTL output
Three models available

Applications

Inertial monitoring system
Inertial navigation system
Flight control system
Vibration monitoring
Inertial measurement unit
Motion monitoring equipment

Technical Specifications

Parameter	GSACC131Q-L	GSACC131Q	GSACC131Q-H
Power supply parameter
Power Voltage	±12~±15V DC	±12~±15V DC	±12~±15V DC
Product performance
Input Range	±30/40/50/70	±30/40/50/70	±30/40/50/70
Bias	≤5mg	≤5mg	≤5mg
Temperature Sensitivity	≤100μg/°C	≤50μg/°C	≤20μg/°C
Bias stability (One month)	≤100μg	≤50μg	≤20μg
Bias Repeatability (One month)	≤100μg	≤50μg	≤20μg
Scale Factor	1000000LSB/g	1000000LSB/g	1000000LSB/g
Scale factor temperature sensitivity	≤100ppm/°C	≤50ppm/°C	≤20ppm/°C
Scale factor stability (One month)	≤100ppm	≤50ppm	≤20ppm
Scale factor repeatability (One month)	≤100ppm	≤50ppm	≤20ppm
Second order nonlinear coefficient	≤100μg/g²	≤50μg/g²	≤20μg/g²
Size	Ø25.4×30mm	Ø25.4×30mm	Ø25.4×30mm
Weight	≤80g	≤80g	≤80g
Environment
Operating Temperature	-40°C~+85°C	-40°C~+85°C	-40°C~+85°C
Output	TTL 1KHz	TTL 1KHz	TTL 1KHz
Shock	150g	150g	150g
Vibration Peak Sine	10g@20Hz ~ 2000Hz	10g@20Hz ~ 2000Hz	10g@20Hz ~ 2000Hz

Dimensions

Class A Shell

Class B Shell
