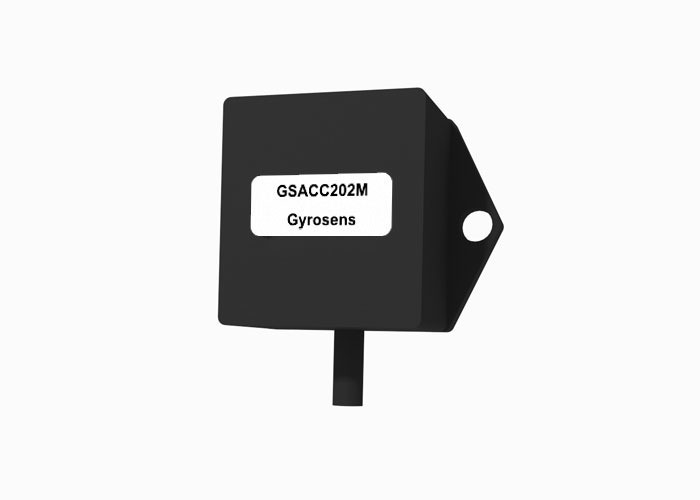

Name: GSACC202M MEMS Accelerometer with ±2g Range 1000±30 mV/g Sensitivity and ≧ 50 Hz Bandwidth for Aircraft Stability Control
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC202M
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSACC202M MEMS Accelerometer with ±2g Range 1000±30 mV/g Sensitivity and ≧ 50 Hz Bandwidth for Aircraft Stability Control

±2g Range MEMS Accelerometer

1000±30 mV/g Sensitivity Accelerometer Sensor

≧ 50 Hz Bandwidth GSACC202M

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC202M

Request A Quote

Product Details

Range:

±2g

Bias:

2.5±0.1 V

Nonlinear (%FS):

≤ 0.5% Fs

Resolution (°/s):

0.001 G

Sensitivity:

1000±30 MV / G

Bandwidth:

≧ 50 Hz

Highlight:

±2g Range MEMS Accelerometer

1000±30 mV/g Sensitivity Accelerometer Sensor

≧ 50 Hz Bandwidth GSACC202M

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

86--17719566736

Contact Now

Product Description

GSACC202M MEMS Accelerometers

Key Features

Analog voltage output
Compact size and lightweight design
Wide measuring range
Excellent impact resistance and vibration performance

Applications

Aircraft stability control systems
Seismic detection equipment

Technical Specifications

Electrical Characteristics
Input voltage	5±0.25 VDC
Input current	≤2mA
Output Mode	0.5～4.5 V
Performance Index
Axial direction	X,Y
Range	±2g
Bandwidth	≧ 50 Hz
Sensitivity	1000±30 mV / g
Resolution (°/s)	0.001 g
Nonlinear (%FS)	≤ 0.5% Fs
Bias	2.5±0.1 V
Bias temperature drift	0.1%/℃
Start-up time (ms)	≤1 s
Environmental Characteristics
Temperature (°C)	-40℃~+70℃
Storage Temperature	-40℃~+125℃
Resistant to shock	2000g
Physical Characteristics
Weight (g)	20g
Dimensions	18.8×12.7×8.4 mm

Note: Range can be customized from ±1～±50g. Bandwidth can be selected up to ≤400 Hz.

Dimensions
