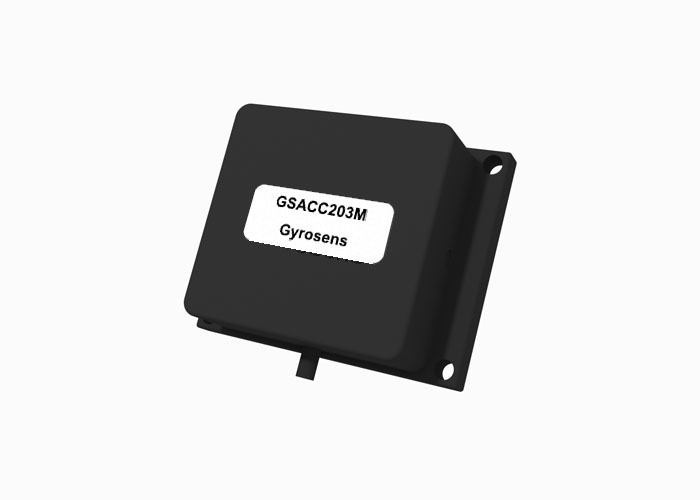

Name: GSACC203M MEMS Accelerometer with ±10 g Range ≤ 0.05 g Bias and ≥50 Hz Bandwidth for Precision Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC203M
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSACC203M MEMS Accelerometer with ±10 g Range ≤ 0.05 g Bias and ≥50 Hz Bandwidth for Precision Measurement

±10 g Range MEMS Accelerometer

≤ 0.05 g Bias Accelerometer Sensor

≥50 Hz Bandwidth GSACC203M

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC203M

Request A Quote

Product Details

Range:

±10 G

Bias:

≤ 0.05 G

Nonlinear (%F.S.):

≤ 0.5% F.S.

Resolution (°/s):

0.005 G

Bandwidth:

≥50 Hz

Highlight:

±10 g Range MEMS Accelerometer

≤ 0.05 g Bias Accelerometer Sensor

≥50 Hz Bandwidth GSACC203M

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

Contact Now

Product Description

GSACC203M MEMS Accelerometers

Key Features

Digital RS485 output
Wide measuring range with nonlinear correction
Compact size and lightweight design
Full temperature range compensation
Excellent impact resistance and vibration performance

Applications

Aircraft stability control systems
Seismic detection equipment

Technical Specifications

Electrical Characteristics
Input voltage	6-8 VDC
Input current	≤60 mA
Output Mode	RS485
Baud Rate	115200 bps
Output Data Rate	200 Hz
Output Data format	16-bit twos complement

Performance Index
Axial direction	Range	±10 g
	Bandwidth	≥50 Hz
	Resolution (°/s)	0.005 g
	Nonlinear (%F.S.)	≤ 0.5% F.S.
	Bias	≤ 0.05 g
	Start-up time	≤1s

Environmental Characteristics
Operating Temperature	-40℃ to +70℃
Storage Temperature	-40℃ to +125℃
Resistant to shock	2000g

Physical Characteristics
Weight	80g
Dimensions	483818 mm

Dimensions

Note: Manual content will be updated from time to time. Please contact the supplier for the latest product manual.
