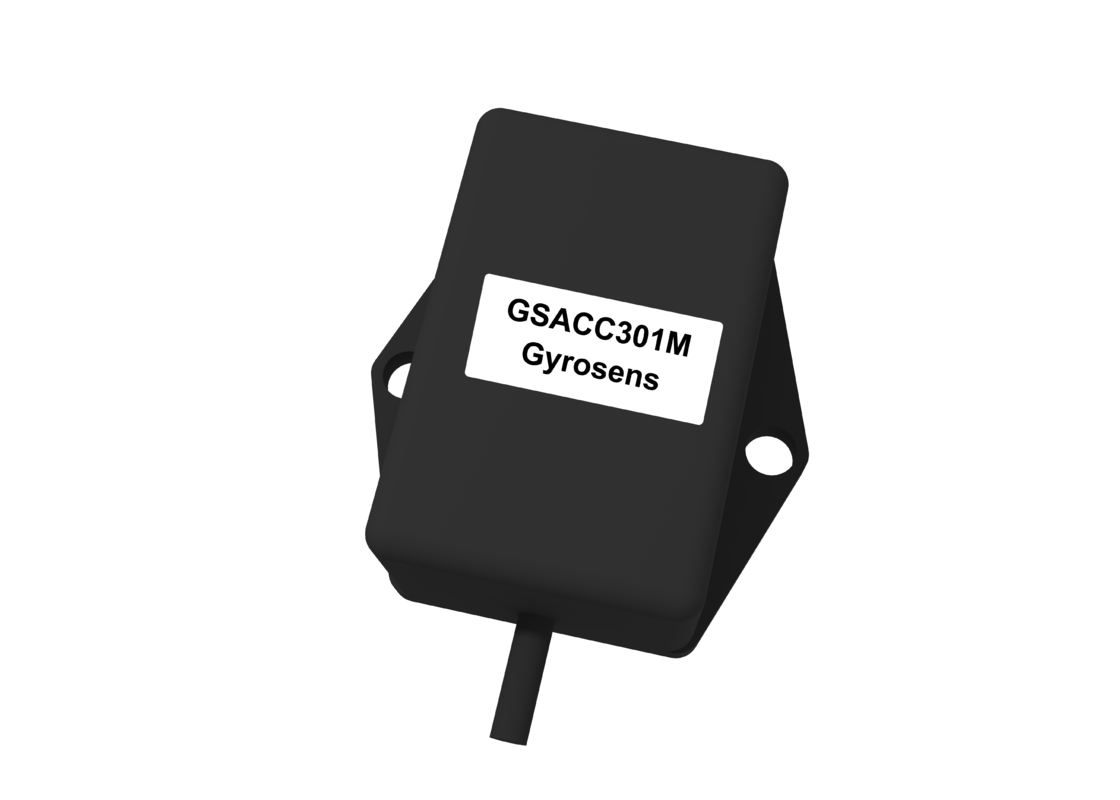

Name: GSACC301M MEMS Accelerometer with ±3 g Range 0.001g Resolution and ≥500 Hz Bandwidth for Aircraft Stability Control
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC301M
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSACC301M MEMS Accelerometer with ±3 g Range 0.001g Resolution and ≥500 Hz Bandwidth for Aircraft Stability Control

±3 g Range MEMS Accelerometer

0.001g Resolution Acceleration Sensor

≥500 Hz Bandwidth GSACC301M Sensor

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC301M

Request A Quote

Product Details

Range:

±3 G

Bias:

1.5±0.1 V

Nonlinear (%FS):

≤ 0.3% Fs

Resolution (°/s):

0.001g

Sensitivity:

300±30 MV / G

Bandwidth:

≥500 Hz

Highlight:

±3 g Range MEMS Accelerometer

0.001g Resolution Acceleration Sensor

≥500 Hz Bandwidth GSACC301M Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

86--17719566736

Contact Now

Product Description

GSACC301M MEMS Accelerometers

Key Features

Analog voltage output
Compact size and lightweight design
Full temperature range compensation
Excellent impact resistance and vibration performance
Built-in self-test function

Applications

Aircraft stability control systems
Vibration acceleration measurement

Technical Specifications

Electric Characteristics
Type		GSACC301M
Input voltage	3±0.05 VDC	Input current	≤ 1 mA
Output Mode	0~3 V
Performance Index
Axial direction	X	Y	Z
Range	±3 g
Bandwidth	≥500 Hz
Sensitivity	300±30 mV / g
Resolution (°/s)	0.001g
Nonlinear (%FS)	≤ 0.3% Fs
Bias	1.5±0.1 V
Bias temperature drift	±1mg/℃
Start-up time (ms)	≤0.001s
Environmental Characteristics
Temperature (°C)	-40℃~+70℃
Storage Temperature	-40℃~+125℃
Resistant to shock	10000g
Physical Characteristics
Weight (g)	40 g
Dimensions	19.51810 mm

Dimensions
