Product Description

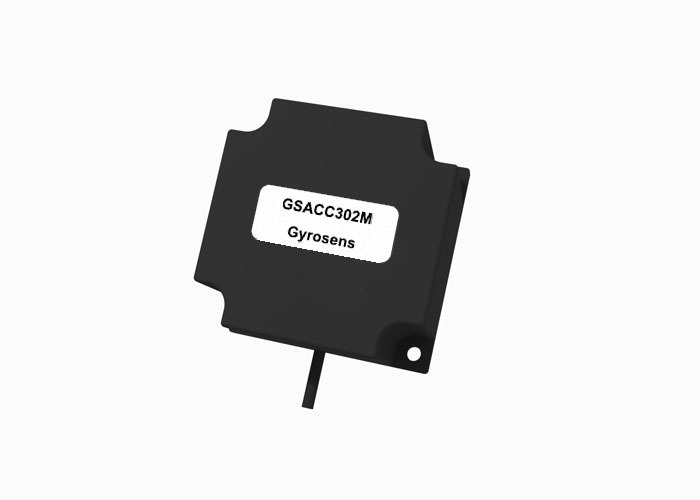

GSACC302M MEMS Accelerometers

Key Features

Digital RS422 output
Wide measuring range with nonlinear correction
Whole temperature range compensation
High impact resistance

Applications

Petroleum drilling machines
Seismic detection systems

Technical Specifications

Electrical Characteristics
Input voltage	10~30 VDC
Input current	≤ 70 mA
Output Mode	RS 422
Baud Rate	115200 bps
Output Data Rate	200 Hz
Output Data format	16-bit twos complement

Performance Index
Parameter	X	Y	Z
Range	±2 g
Bandwidth	≥50 Hz
Resolution (°/s)	0.002 g
Nonlinear (%FS)	≤ 0.5% Fs
Bias	≤ 0.01g
Bias temperature drift	≤ 0.03g
Start-up time (ms)	≤1s

Environmental Characteristics
Operating Temperature	-40℃~+70℃
Storage Temperature	-40℃~+125℃
Resistant to shock	4000g

Physical Characteristics
Weight	150 g
Dimensions	555535 mm

Dimensions

Note: Manual content will be updated from time to time. Please contact the supplier for the latest product manual.
