Name: GSACC303M MEMS Accelerometer with ±10 g Range ≤ 0.01 g Bias and ≤ 0.2% Fs Nonlinear for Precision Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC303M
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSACC303M MEMS Accelerometer with ±10 g Range ≤ 0.01 g Bias and ≤ 0.2% Fs Nonlinear for Precision Measurement

±10 g Range MEMS Accelerometer

≤ 0.01 g Bias Accelerometer Sensor

≤ 0.2% Fs Nonlinear GSACC303M Accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC303M

Request A Quote

Product Details

Range:

±10 G

Bias:

≤ 0.01 G

Nonlinear (%FS):

≤ 0.2% Fs

Resolution (°/s):

0.001 G

Bandwidth:

≥60 Hz

Highlight:

±10 g Range MEMS Accelerometer

≤ 0.01 g Bias Accelerometer Sensor

≤ 0.2% Fs Nonlinear GSACC303M Accelerometer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

Contact Now

Product Description

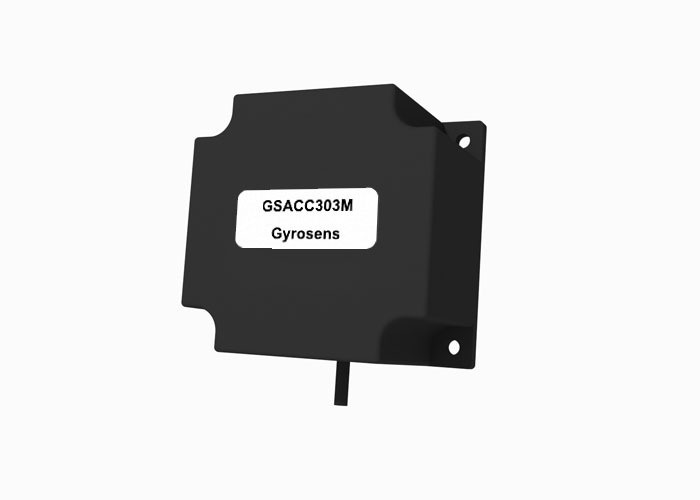

GSACC303M MEMS Accelerometers

Key Features

Digital RS422 output
Wide measuring range
Nonlinear correction and cross coupling correction
Whole temperature range compensation
Impact resistance with excellent vibration performance
High resolution and stability

Applications

Aircraft stability control
Inertial navigation systems

Technical Specifications

Type: GSACC303M
Electrical Characteristics
Input voltage	10~30 VDC
Input current	≤50 mA
Output Mode	RS 422
Baud Rate	115200 bps
Output Data Rate	200 Hz
Output Data format	16-bit twos complement
Performance Index
Axial direction	X \| Y \| Z
Range	±10 g
Bandwidth	≥60 Hz
Resolution (°/s)	0.001 g
Nonlinear (%FS)	≤ 0.2% Fs
Bias	≤ 0.01 g
Bias temperature drift	≤ 0.01 g
Start-up time (ms)	≤1s
Environmental Characteristics
Temperature (°C)	-40℃~+70℃
Storage Temperature	-40℃~+125℃
Resistant to shock	2000g
Physical Characteristics
Weight (g)	150 g
Dimension	55×55×35mm

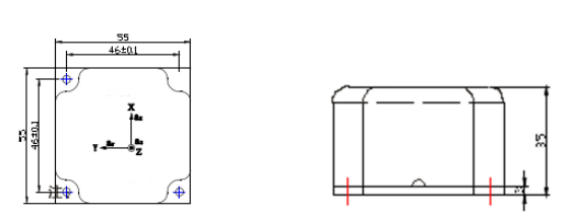

Dimensions

GSACC303M MEMS Accelerometer dimensional diagram showing 55×55×35mm measurements
