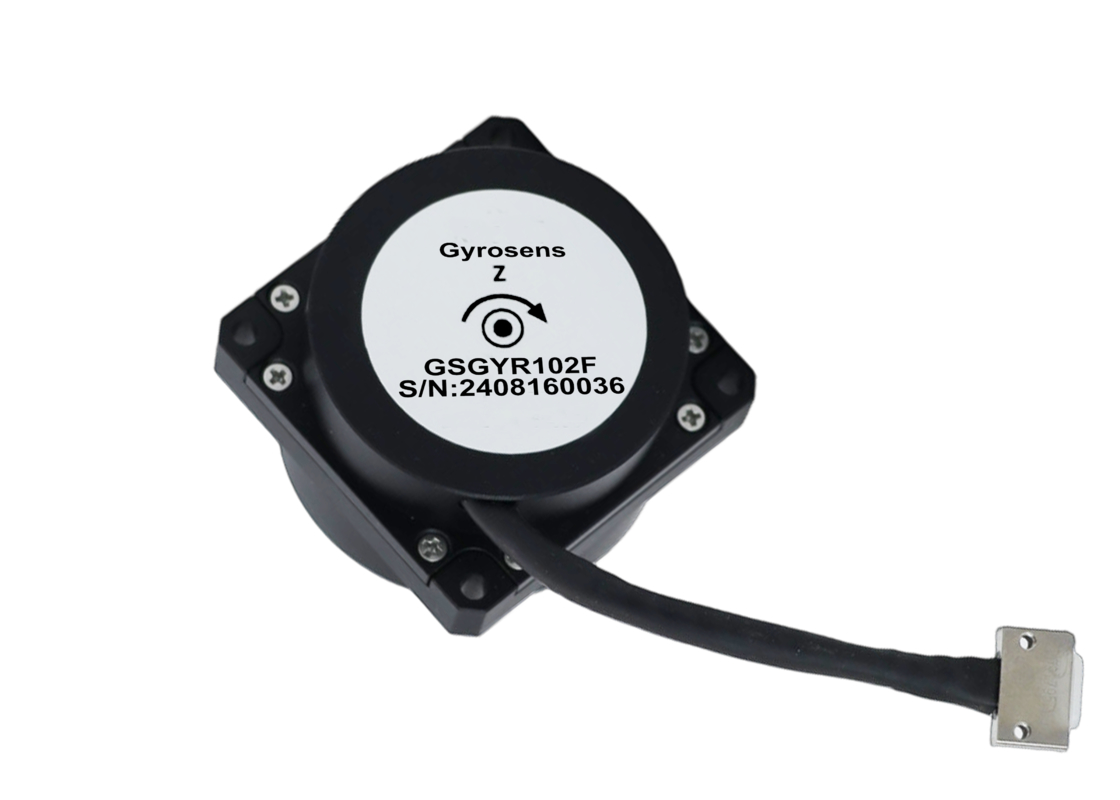

Name: GSGYR102F Fibre Optic Gyroscope with ±900°/s Dynamic Range All Solid State and Long Life for Inertial Navigation
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSGYR102F
Price: 431.00 USD
Availability: InStock

Home > Products > Electronic Gyroscope Sensor >

GSGYR102F Fibre Optic Gyroscope with ±900°/s Dynamic Range All Solid State and Long Life for Inertial Navigation

±900°/s Dynamic Range Fibre Optic Gyroscope

All Solid State Electronic Gyroscope Sensor

Long Life Inertial Angle Rate Sensor

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSGYR102F

Request A Quote

Product Details

Supply Voltage:

+5 V

Dimensions:

50×50×36 Mm

Start Time:

5 S

Highlight:

±900°/s Dynamic Range Fibre Optic Gyroscope

All Solid State Electronic Gyroscope Sensor

Long Life Inertial Angle Rate Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h

Get Best Price

GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation

Get Best Price

GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h

Get Best Price

GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs

Get Best Price

86--17719566736

Contact Now

Product Description

GSGYR102F Fibre Optic Gyroscope

Product Introduction

The GSGYR102F is an inertial angle rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along its sensitive axis. It utilizes a digital closed-loop detection circuit to extract optical path differences caused by external physical angular speed, with voltage signal modulation and demodulation for real-time angular velocity detection.

This gyroscope consists of two main components: an optical angular velocity sensitive unit and a signal detection unit, providing uniaxial angle increment information and internal temperature data.

Key Features

Accurate angular speed measurement for moving objects
All-solid-state design with no rotating or friction parts
Extended operational lifespan
Large dynamic range capability
Instantaneous startup
Compact and lightweight construction
Simple structural design

Applications

Gimbal camera stabilization systems
Flight control platforms
Inertial navigation systems
Inertial monitoring systems
Optical and photography platform stabilization
Inertial measurement units

Technical Specifications

Parameter	GSGYR102F-L	GSGYR102F-H
Power supply parameter
Supply voltage	+5 V
Product performance
Dimensions	50×50×36 mm
Start time	5 s
Bias (10s smooth, fix temperature)	≤0.3 °/h	≤0.1 °/h
Bias stability (10s smooth -45°C~+70°C)	≤0.5 °/h	≤0.3 °/h
Bias repeatability	≤0.1 °/h	≤0.05 °/h
Random walk	≤0.02 °/h1/2	≤0.01 °/h1/2
Scale factor non-linearity	≤20 ppm	≤10 ppm
Scale factor repeatability	≤20 ppm	≤10 ppm
Dynamic range	±900 °/s
Power dissipation (full temperature)	<4 W
Weight	＜130 g
Environment
Operate temperature	-45°C～+70°C
Storage temperature	-50°C～+80°C

Dimensions
