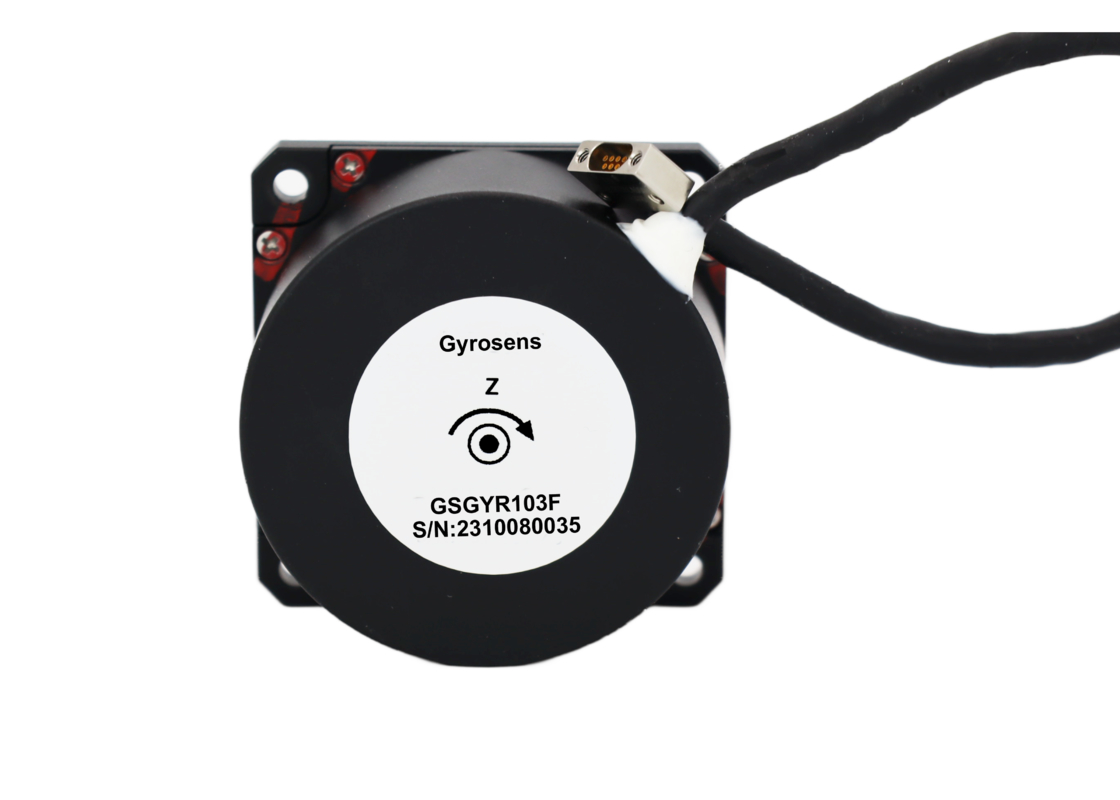

GSGYR103F Fibre Optic Gyroscope

Product Introduction

This inertial angle rate sensor utilizes the optical Sagnac effect to measure rotational angular velocity along its sensitive axis. It employs a digital closed-loop detection circuit to extract optical path differences caused by external angular speed, modulating and demodulating voltage signals to achieve real-time angular velocity detection.

Functionality

Comprising an optical angular velocity sensitive unit and signal detection components, this product provides uniaxial angle increment information and internal temperature data.

Key Features

Precisely measures angular speed of moving objects
All-solid-state design with no rotating or friction parts
Extended operational lifespan
Large dynamic range
Instantaneous startup
Compact and lightweight construction
Simple structural design

Applications

Gimbal camera systems Flight control platforms Inertial navigation systems Inertial monitoring systems Optical/photography stabilization Inertial measurement units

Technical Specifications

Power Supply Parameters
Supply voltage	+5(V)
Product Performance
Dimensions	606032 mm
Start time	≤3 s
Bias (10s smooth, fix temperature)	≤0.1 °/h
Bias stability (10s smooth -45°C~+70°C)	≤0.5 °/h
Bias repeatability	≤0.1 °/h
Random walk	≤0.01 °/h1/2
Scale factor non-linearity	≤10 ppm
Scale factor repeatability	≤10 ppm
Dynamic range	±500 °/s
Power dissipation (full temperature)	<4 W
Weight	<180g
Environmental Specifications
Operate temperature	-45°C ～+70°C
Storage temperature	-50°C ～+80°C

Dimensions
