Name: Low Power Consumption <3W Fibre Optic Gyroscope with Wide Operating Temperature -45°C～+70°C and Large Dynamic Range ±500°/s
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSGYR104F
Price: 431.00 USD
Availability: InStock

Home > Products > Electronic Gyroscope Sensor >

Low Power Consumption <3W Fibre Optic Gyroscope with Wide Operating Temperature -45°C～+70°C and Large Dynamic Range ±500°/s

Low Power Consumption Fibre Optic Gyroscope

Wide Operating Temperature Electronic Gyroscope Sensor

Large Dynamic Range Inertial Angle Rate Sensor

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSGYR104F

Request A Quote

Low Power Consumption <3W Fibre Optic Gyroscope with Wide Operating Temperature -45°C～+70°C and Large Dynamic Range ±500°/s

Product Details

Power Voltage:

+5V DC

Output:

RS422

Supply Current:

>1.5A

Power -45°C～+70°C:

<4W

Power 25°C:

<3W

Highlight:

Low Power Consumption Fibre Optic Gyroscope

Wide Operating Temperature Electronic Gyroscope Sensor

Large Dynamic Range Inertial Angle Rate Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h

Get Best Price

GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation

Get Best Price

GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h

Get Best Price

GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs

Get Best Price

86--17719566736

Contact Now

Product Description

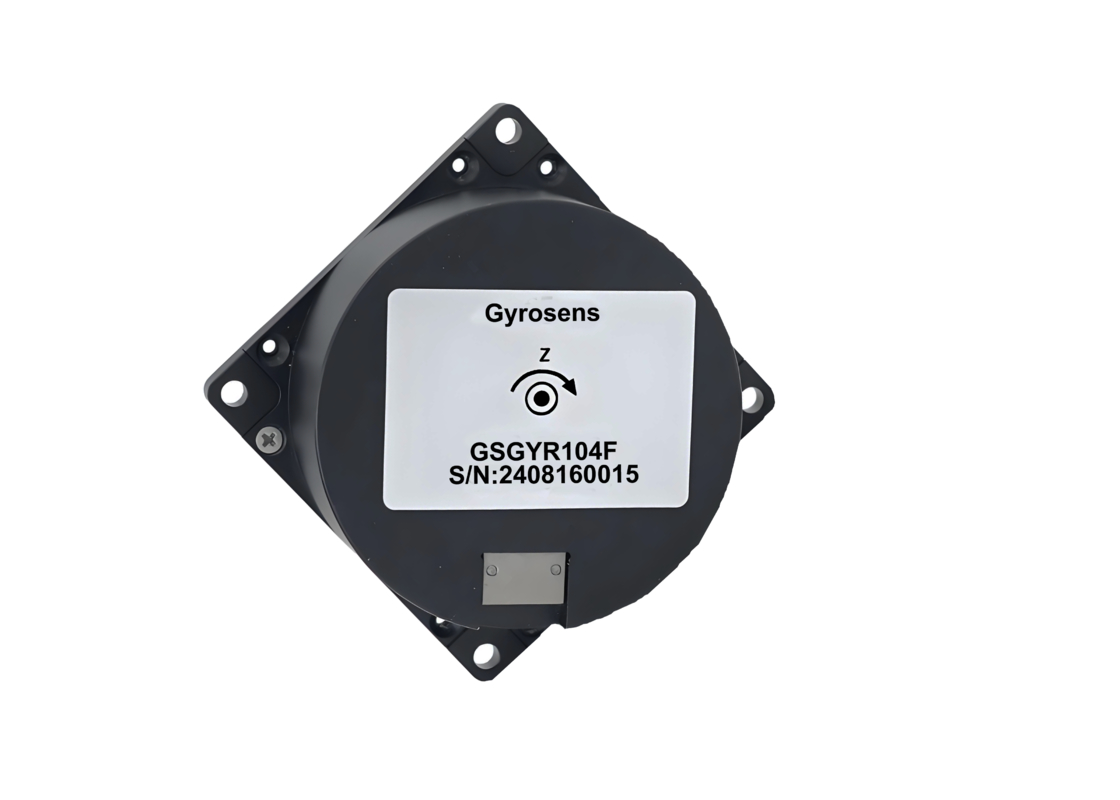

GSGYR104F Fibre Optic Gyroscope

Product Introduction

This inertial angle rate sensor utilizes the optical Sagnac effect to measure rotational angular velocity along its sensitive axis. It employs a digital closed-loop detection circuit to extract optical path differences caused by external angular speed, modulating and demodulating voltage signals to achieve real-time angular velocity detection.

Functionality

Comprising an optical angular velocity sensitive unit and signal detection components, this product provides uniaxial angle increment data and internal temperature information.

Key Features

Precisely measures angular speed of moving objects
All-solid-state design with no rotating or friction parts
Extended operational lifespan
Wide dynamic range
Instantaneous startup
Compact and lightweight construction
Simple structural design

Applications

Gimbal camera Flight control platform Inertial navigation system Inertial monitoring system Optical/photography stabilization Inertial measurement unit

Technical Specifications

Specification	GSGYR104F	GSGYR104F-H	GSGYR104F-HH
Number of Axles	1
Power Voltage	+5V DC
Power 25°C	<3W
Power -45°C～+70°C	<4W
Supply current	>1.5A
Output	RS422
Size	70×70×30mm
Run-up time	3s
Bias	<0.5°/h
Bias stability 25°C	<0.1°/h	<0.05°/h(10s); <0.015°/h(100s)	<0.03°/h(10s); <0.01°/h(100s)
Bias temperature sensitivity 1°C/min	<0.1°/h	<0.08°/h	<0.05°/h
Bias repeatability	<0.05°/h	<0.015°/h	<0.01°/h
Bias magnetic sensitivity	<0.05°/h/Gs	<0.05°/h/Gs	<0.01°/h/Gs
Random walk	<0.01°/√h	<0.005°/√h	<0.003°/√h
Scale factor nonlinearity	<10ppm
Scale factor asymmetry	<5ppm
Scale factor repeatability	<10ppm
Threshold	<0.05°/h	<0.015°/h	<0.01°/h
Resolution	<0.05°/h	<0.015°/h	<0.01°/h
Bandwidth	≥500Hz
Weight	200g±10g	200g±10g	280g±10g or 210g±10g (lighter version)
Dynamic range	±500°/s	±300°/s	±300°/s
Start-up Current	<1.5A
Operating temperature	-45°C～+70°C
Storage temperature	-55°C～+80°C
Supply voltage accuracy	<±5%
Power ripple	<50mV

Dimensions
