Name: GSGYR105F Fibre Optic Gyroscope with Digital Closed-Loop Detection Instant Start and Low Bias for Precision Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSGYR105F
Price: 431.00 USD
Availability: InStock

Home > Products > Electronic Gyroscope Sensor >

GSGYR105F Fibre Optic Gyroscope with Digital Closed-Loop Detection Instant Start and Low Bias for Precision Measurement

Digital Closed-Loop Detection Fibre Optic Gyroscope

Instant Start FOG Sensor

Low Bias Optical Gyroscope

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSGYR105F

Request A Quote

Product Details

Supply Voltage:

+5V DC

Operating Temperature:

-45°C～+70°C

Storage Temperature:

-55°C～+80°C

Power Dissipation (full Temperature):

<4W

Start Time:

Highlight:

Digital Closed-Loop Detection Fibre Optic Gyroscope

Instant Start FOG Sensor

Low Bias Optical Gyroscope

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h

Get Best Price

GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation

Get Best Price

GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h

Get Best Price

GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs

Get Best Price

86--17719566736

Contact Now

Product Description

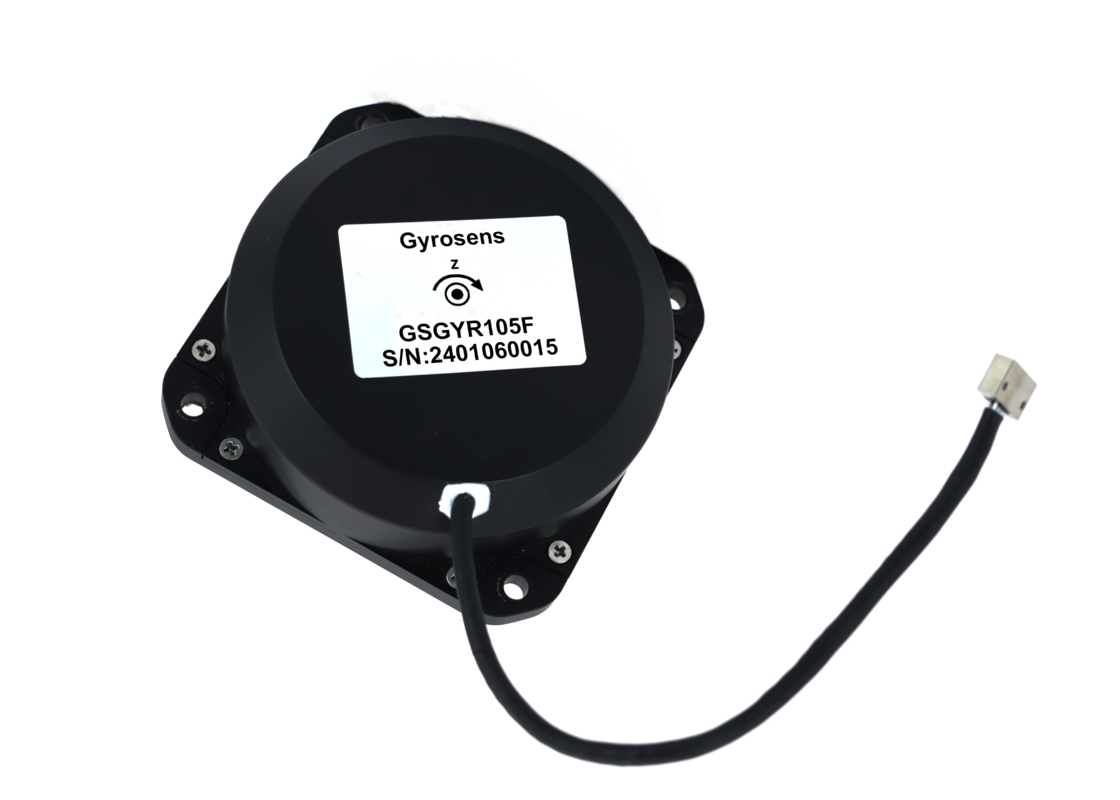

GSGYR105F Fibre Optic Gyroscope

Product Introduction

This inertial angle rate sensor utilizes the optical Sagnac effect to measure rotational angular velocity along its sensitive axis. It employs a digital closed-loop detection circuit to extract optical path differences caused by external angular speed, enabling real-time angular velocity signal detection through voltage signal modulation and demodulation.

Functionality

Comprising an optical angular velocity sensitive unit and signal detection components, this product provides uniaxial angle increment information and internal temperature data.

Key Features

Precise measurement of moving object angular speed
All-solid-state design with no rotating or friction parts
Extended operational lifespan
Instantaneous startup capability
Simple structural design
Low bias characteristics

Applications

Gimbal camera stabilization
Flight control platforms
Inertial navigation systems
Inertial monitoring systems
Optical and photography platform stabilization
Inertial measurement units

Technical Specifications

Parameter	GSGYR105F	GSGYR105F-H	GSGYR105F-HH
Power Supply Parameter
Supply voltage	+5V DC
Product Performance
Dimensions	98×98×31.5mm	98×98×33.5mm	98×98×33.5mm
Start time	3s
Bias (10s smooth, fix temperature)	<0.05°/h	<0.015°/h	<0.01°/h
Bias stability (10s smooth -45°C~+70°C)	<0.02°/h(10s) <0.006°/h(100s)	<0.015°/h(10s) <0.005°/h(100s)	<0.01°/h(10s) <0.003°/h(100s)
Bias repeatability	<0.006°/h	<0.005°/h	<0.003°/h
Random walk	<0.001°/√h	<0.0008°/√h	<0.0005°/√h
Scale factor non-linearity	<10ppm	<2ppm	<2ppm
Scale factor repeatability	<10ppm	<5ppm	<5ppm
Dynamic range	±500°/s	±300°/s	±300°/s
Power dissipation (full temperature)	<4W
Weight	<480g or 520g±20g(Package B)	520g±20g	520g±20g
Environment
Operating temperature	-45°C～+70°C
Storage temperature	-55°C～+80°C

Dimensions
