Name: Single-axis Fiber Optic Gyroscope with -45°C～+70°C Operating Temperature +5V DC Supply Voltage and 890g±20g Weight
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSGYR106F
Price: 431.00 USD
Availability: InStock

Home > Products > Electronic Gyroscope Sensor >

Single-axis Fiber Optic Gyroscope with -45°C～+70°C Operating Temperature +5V DC Supply Voltage and 890g±20g Weight

-45°C～+70°C Operating Temperature Fiber Optic Gyroscope

+5V DC Supply Voltage Electronic Gyroscope Sensor

890g±20g Weight Single-axis Fiber Optic Gyroscope

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSGYR106F

Request A Quote

Product Details

Operating Temperature:

-45°C～+70°C

Storage Temperature:

-55°C～+80°C

Supply Voltage:

+5V DC

Weight:

890g±20g

Start Time:

Dimensions:

120×120×36mm

Highlight:

-45°C～+70°C Operating Temperature Fiber Optic Gyroscope

+5V DC Supply Voltage Electronic Gyroscope Sensor

890g±20g Weight Single-axis Fiber Optic Gyroscope

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h

Get Best Price

GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation

Get Best Price

GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h

Get Best Price

GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs

Get Best Price

86--17719566736

Contact Now

Product Description

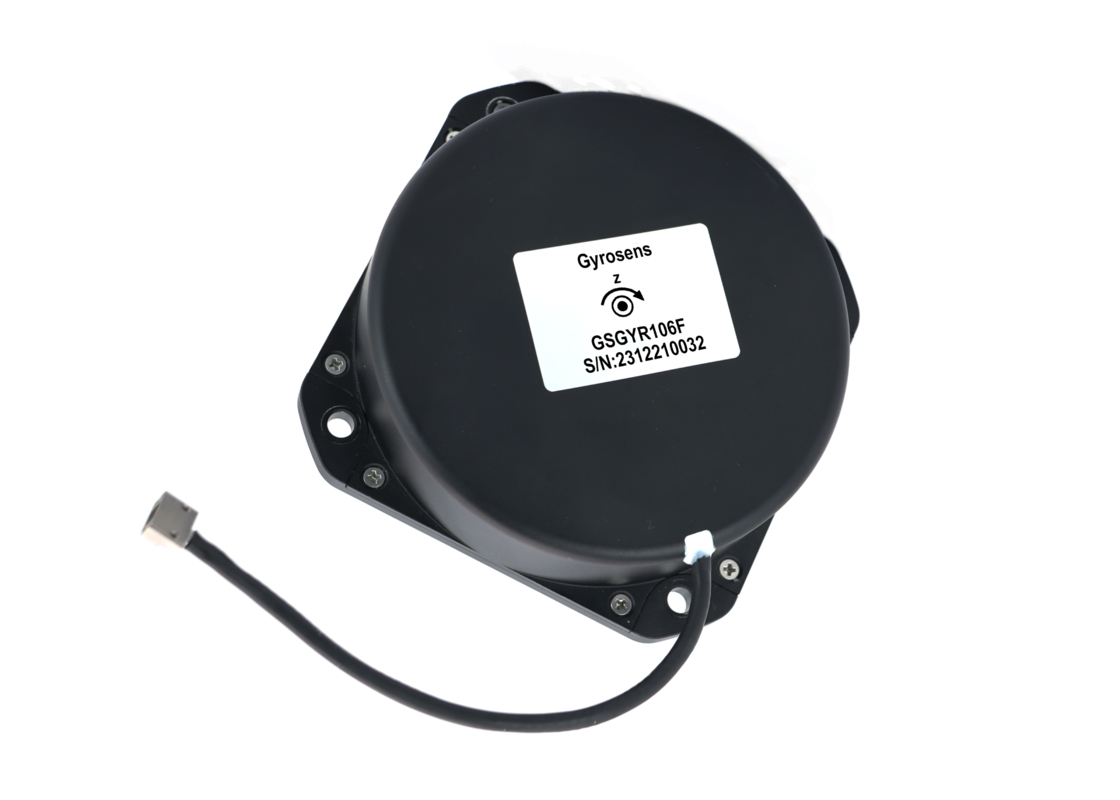

GSGYR106F Single-axis Fiber Optic Gyroscope

Product Description

This inertial angle rate sensor utilizes the optical Sagnac effect to measure rotational angular velocity along its sensitive axis. It features a digital closed-loop detection circuit that extracts optical path differences caused by external angular speed, with voltage signal modulation and demodulation for real-time angular velocity detection.

The system comprises an optical angular velocity sensitive unit and signal detection components, providing uniaxial angle increment information and internal temperature data.

Key Features

Precise angular speed measurement for moving objects
All-solid-state design with no rotating or friction parts
Extended operational lifespan
Instantaneous startup capability
Streamlined structural design
Minimal bias characteristics

Applications

Gimbal camera stabilization systems
Flight control platforms
Inertial navigation systems
Inertial monitoring systems
Optical and photography platform stabilization
Inertial measurement units

Technical Specifications

Parameter	GSGYR106F-H	GSGYR106F-HH
Power Supply Parameter
Supply voltage	+5V DC	+5V DC
Product Performance
Dimensions	12012036mm	12012036mm
Start time	3s	3s
Bias (10s smooth, fix temperature)	<0.01°/h	<0.005°/h
Bias stability (10s smooth -45°C~+70°C)	<0.005°/h(10s) <0.0015°/h(100s)	<0.003°/h(10s) <0.001°/h(100s)
Bias repeatability	<0.0015°/h	<0.001°/h
Random walk	<0.0003°/√h	<0.0002°/√h
Scale factor non-linearity	<2ppm	<2ppm
Scale factor repeatability	<5ppm	<5ppm
Dynamic range	±300°/s	±300°/s
Power dissipation (full temperature)	<4W	<4W
Weight	890g±20g	890g±20g
Environment
Operating temperature	-45°C～+70°C	-45°C～+70°C
Storage temperature	-55°C～+80°C	-55°C～+80°C

Dimensions
