Name: GSGYR112F Single-Axis Fiber Optic Gyroscope with RS422 Output 5V Power Supply and Bias Stability <0.05°/h
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSGYR112F
Price: 431.00 USD
Availability: InStock

Home > Products > Electronic Gyroscope Sensor >

GSGYR112F Single-Axis Fiber Optic Gyroscope with RS422 Output 5V Power Supply and Bias Stability <0.05°/h

RS422 Output Fiber Optic Gyroscope

5V Power Supply Single-Axis Gyroscope

Bias Stability <0.05°/h Electronic Gyroscope Sensor

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSGYR112F

Request A Quote

Product Details

Power Voltage:

+5V DC

Run - Up Time:

Size:

60×60×30mm

Output:

RS422

Power (25°C):

<6W

Highlight:

RS422 Output Fiber Optic Gyroscope

5V Power Supply Single-Axis Gyroscope

Bias Stability <0.05°/h Electronic Gyroscope Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

GSGYR324F All-Solid-State Digital Closed-Loop Three-Axis Fiber Optic Gyroscope with Single 5V Power Supply and Bias Stability <0.5°/h

Get Best Price

GSGYR201F Fiber Optic Gyroscope with 2 Axles Compact Size 64×60×40mm and Low Power Consumption <4W for Inertial Navigation

Get Best Price

GSGYR203F Fiber Optic Gyroscope with Run-up Time 3s Bias Repeatability <0.5°/h and Bias Temperature Sensitivity <1°/h

Get Best Price

GSGYR202F Fiber Optic Gyroscope with Low Random Walk <0.1°/√h Bias Stability <2°/h and Bias Magnetic Sensitivity <0.5°/h/Gs

Get Best Price

86--17719566736

Contact Now

Product Description

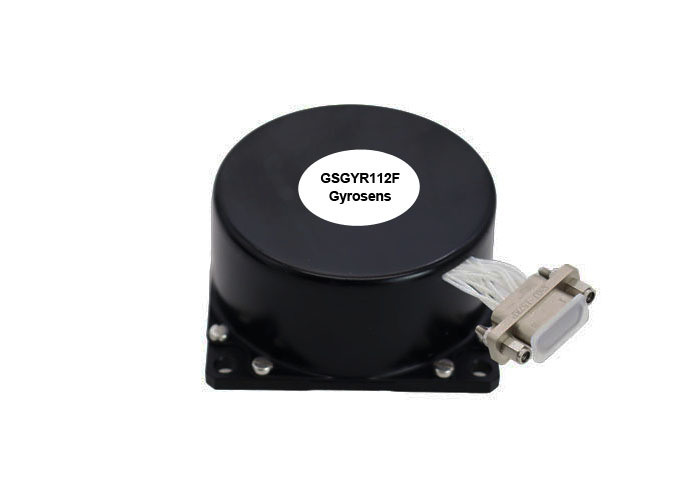

GSGYR112F Single-Axis Fiber Optic Gyroscope

Product Introduction

The GSGYR112F single-axis fiber optic gyroscope series features an all-digital closed-loop operating mode with excellent characteristics including compact size, lightweight design, low power consumption, fast startup, and simple interface. This high-precision angular rate sensor is ideal for navigation and control applications, with widespread use in various control and braking systems.

Key Features

Single 5V power supply
Exceptional full-temperature performance
Instant startup with no preheating required
Superior environmental adaptability with resistance to strong impact and vibration
Interference fringe recognition technology supporting full dynamic range cold startup
High reliability, precision, simple structure, and wide dynamic range

Applications

High-precision stable platforms
Positioning and orientation systems
North seekers
Attitude and heading reference systems
Fiber optic compasses
Strapdown inertial navigation systems

Technical Specifications

Parameter	GSGYR112F-L	GSGYR112F	GSGYR112F-H	GSGYR112F-HH
Power Voltage	+5V DC
Power (25°C)	<6W
Output	RS422
Size	606030mm
Run-up time	1s
Bias stability (25°C)	<0.2°/h	<0.1°/h	<0.08°/h	<0.05°/h
Bias repeatability	<0.2°/h	<0.1°/h	<0.08°/h	<0.05°/h
Random walk	<0.02°/√h	<0.01°/√h	<0.008°/√h	<0.005°/√h
Scale factor nonlinearity	<80	<60	<60	<50
Scale factor asymmetry	<80	<60	<60	<50
Scale factor repeatability	<80	<60	<60	<50
Bandwidth	≥200Hz
Weight	<160g
Dynamic range	±1000°/s
Operating temperature	-40°C～+70°C
Storage temperature	-55°C～+80°C
