Name: GSGYR312F Three Axis Fiber Optic Gyroscope with Digital Output, Instant Start, and Low Bias Magnetic Sensitivity
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSGYR312F
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSGYR312F Three Axis Fiber Optic Gyroscope with Digital Output, Instant Start, and Low Bias Magnetic Sensitivity

RS422 Fiber Optic Gyroscope

Digital Output Three Axis Gyroscope

Instant Start Inertial Sensor

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSGYR312F

Request A Quote

Product Details

Power Voltage:

+5V DC

Bias Magnetic Sensitivity:

<0.05°/h/Gs

Bias Repeatability:

<0.3°/h

Run-up Time:

Output:

RS422

Highlight:

RS422 Fiber Optic Gyroscope

Digital Output Three Axis Gyroscope

Instant Start Inertial Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KSINS010C Laser Strapdown Inertial Navigation System with 0.5nmile/h Position Accuracy <0.003° Pitch & Roll Accuracy and <5min Initialization Time

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range, Small Size 22mm×22mm×14mm, and High Reliability for Aerospace and Applications

Get Best Price

GSGYR312F Three Axis Fiber Optic Gyroscope with Digital Output, Instant Start, and Low Bias Magnetic Sensitivity

Get Best Price

GSACC102M MEMS Accelerometer with ±10 g Range ≤ 1500 Hz Bandwidth and 100±30 mV/g Sensitivity for Vibration Monitoring

Get Best Price

Contact Now

Product Description

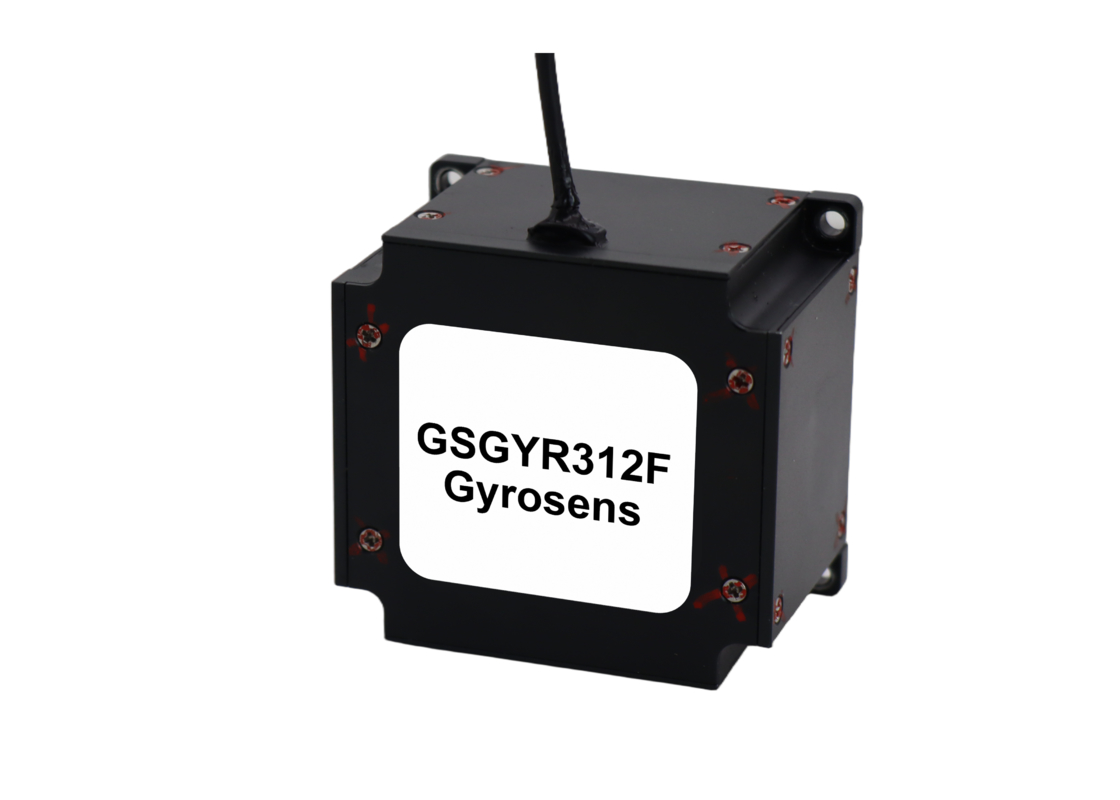

GSGYR312F Three Axis Fiber Optic Gyroscope

This product is an inertial angle rate sensor based on the optical Sagnac effect for measuring the rotational angular velocity of the carrier along the sensitive axis. The digital closed-loop detection circuit extracts the optical path difference of the clockwise light caused by external physical angular speed, modulates and demodulates the voltage signal of the optical path signal, and implements closed-loop feedback and control to achieve real-time angular velocity signal detection.

Function

Composed of optical angular velocity sensitive unit and signal detection, this product provides triaxial angle increment information and internal temperature information.

Features

Accurately measures the angular speed of moving objects
All solid state design with no rotating or friction parts
Long operational life
Instant start capability
Simple structure
Measures three-axis angular speed

Applications

Photoelectric elevator systems
Flight control platforms
Strapdown inertial navigation
Optics and photographic instruments
Platform stabilizers
Inertial measurement instruments

Technical Specifications

Parameter	GSGYR312F-L	GSGYR312F	GSGYR312F-H
Power Supply Parameter
Power Voltage	+5V DC	+5V DC	+5V DC
Output	RS422	RS422	RS422
Product Performance
Run-up time	3s	3s	3s
Bias	<1°/h	<1°/h	<1°/h
Bias stability 25°C	<0.3°/h (10s smoothing)	<0.1°/h (10s)	<0.1°/h (10s smoothing)
Bias temperature sensitivity 1°C/min	<1°/h	<0.5°/h	<0.5°/h
Bias repeatability	<0.3°/h	<0.1°/h	<0.1°/h
Bias magnetic sensitivity	<0.05°/h/Gs	<0.05°/h/Gs	<0.05°/h/Gs
Random walk	<0.01°/√h	<0.01°/√h	<0.01°/√h
Scale factor nonlinearity	<20ppm	<20ppm	<20ppm
Scale factor asymmetry	<10ppm	<10ppm	<10ppm
Scale factor repeatability	<20ppm	<20ppm	<20ppm
Threshold	<0.05°/h	<0.05°/h	<0.05°/h
Resolution	<0.05°/h	<0.05°/h	<0.05°/h
Bandwidth	≥200Hz	≥200Hz	≥200Hz
Dynamic range	±500°/s	±500°/s	±500°/s
Environment
Size	71.5×71.5×45mm
Weight	<340g±10g
Operating temperature	-45°C～+70°C
Storage temperature	-55°C～+80°C

Dimensions
